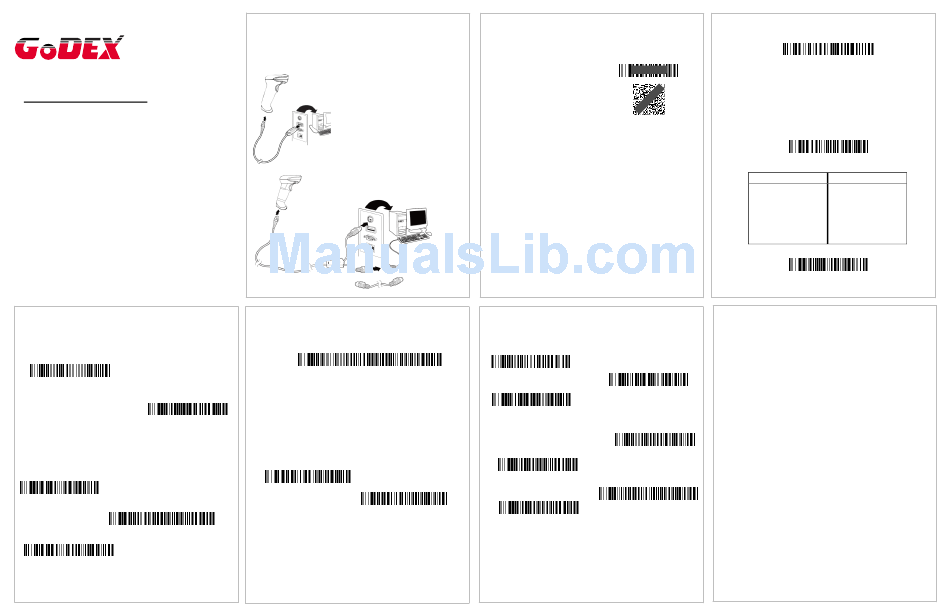

Godex GS550 Quick Start Manual

GS550

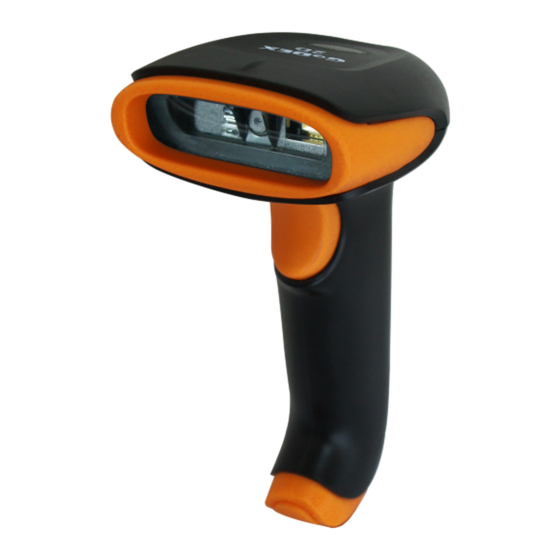

Corded Area-Imaging Scanner

Quick Start Guide

GS550-QS Rev A
Trigger
The following bar codes will allow you to use the scanner in Manual
Trigger - Normal Mode (need to press the button to read) or
Presentation mode (the scanner is activated when it "sees" a bar
code).
Manual Trigger - Normal
(Default)
Presentation Mode
Suffix
If you want a carriage return after the bar code, scan the Add CR
Suffix bar code. To add a tab after the bar code, scan the Add Tab
Suffix bar code. Otherwise, scan the Remove Suffix bar code to
remove the suffixes
Add CR Suffix
Add Tab Suffix
Remove Suffix
Getting Started
Turn off computer's power before connecting the scanner, then
power up the computer once the scanner is fully connected.
Connecting the Scanner
USB:
Keyboard Wedge:
2012/11/28
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to all
.
symbologies at once
Add Code ID Prefix To All
(Temporary)
Function Code Transmit
When this selection is enabled and function codes are contained
within the scanned data, the scanner transmits the function code to
the terminal. When the scanner is in keyboard wedge mode, the
scan code is converted to a key code before it is transmitted.
Enable
(Default)
Reading Techniques
The view finder projects an aiming beam
that should be centered over the bar code,
but it can be positioned in any direction for a
good read.
Hold the scanner over the bar code,
press the button, and center the aiming
beam on the bar code.
The aiming beam is smaller when the
scanner is closer to the code and larger
when it is farther from the code. Hold
the scanner close to smaller bar codes,
and farther away from large bar codes
to get a proper read.
If the bar code is highly reflective (e.g., laminated), you may need to
tilt the scanner at an angle so the bar code can be scanned.
Programming the Interface
Scan one of the following bar codes to program your interface.
Symbologies Keyboard Wedge
IBM PC AT and Compatibles with
CR suffix
USB IBM SurePos (USB
Tabletop Scanner)
Interface
USB Keyboard (Mac)
Disable
USB HID Bar Code Scanner
Standard Product Defaults
The following bar code resets all standard product default settings.
Keyboard Country
Scan the Program Keyboard Country bar code below, then scan
the numeric bar code(s) from
program the keyboard for your country. As a general rule, the
following characters are not supported by the scanner for countries
other than the United States:
@ | $ # { } [ ] = / ' \ < > ~
Program Keyboard Country
Country Code
Brazil
Brazil (MS)
Russian
Russian (MS)
Russian
(Typewriter)
.
USB IBM SurePos (USB
Handheld Scanner)
Interface
USB Keyboard (PC)
USB Japanese Keyboard (PC)
Standard Product Defaults
page 2, then the Save bar code to
Scan Country Code Scan
16 Turkey F 27
59 Turkey Q 24
26 Poland 20
67 Latin America 14
USA (Default) 0
68
Save
