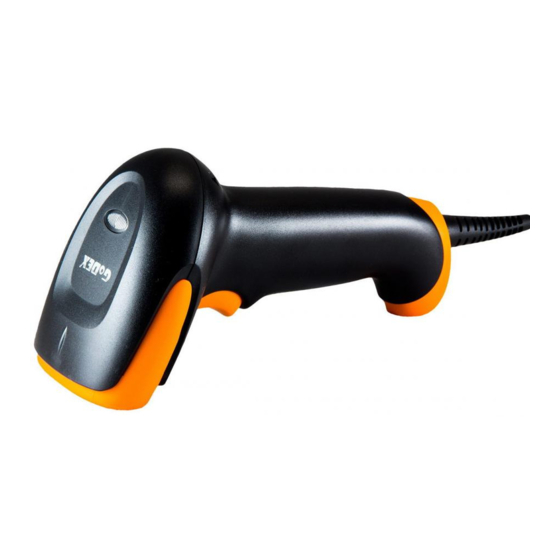

Godex GS220 User Manual

Hide thumbs Also See for GS220:
Table of Contents

Advertisement

Quick Links

Configuration Guide
GS220

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Godex GS220

Summary of Contents for Godex GS220

  • Page 1 Configuration Guide GS220...

  • Page 2: Table Of Contents

    Table of Contents Introduction Bar Code Configuration Methods.............. 1–1 Single-Code Method ................1–1 Multi-Code Method ................1–1 Need to Start Over? .................. 1–2 Code Types and Decode Rules UPC/EAN....................2–1 Code 128 ....................2–2 Code 39 ....................2–2 2 of 5 Codes ..................... 2–4 Codabar ....................
  • Page 3 Scanner Operation Configuration Mode Options..............7–1 Scan Buffers....................7–1 Redundant Scans..................7–2 Miscellaneous Decode Features ...............7–2 Same Symbol Timeouts ................7–3 LED Options ....................7–3 Beeper Options ..................7–4 Data Transmission Delays................. 7–6 Communication Timeout Options .............. 7–7 Host Scanner Commands ................. 7–8 Test Modes....................7–10 Prefixes/Suffixes User Configurable Prefixes, All Data ............
  • Page 4 RS232 Parity Features ..................10–1 Baud Rate....................10–1 Data/Stop Bits..................10–2 Hardware Handshaking ................10–2 Software Handshaking................10–4 Miscellaneous ..................10–5 Keyboard Enable Keyboard Emulation ..............11–1 Country/Scan Code Table Selects ............11–1 Keyboard/System Type................11–2 ’Dumb’ Terminal Selections ..............11–3 Special Keyboard Features..............
  • Page 5 Miscellaneous Features Custom Defaults..................17–1 Serial Program Mode ................17–2 Contact Information ...............18–1...

  • Page 6: Bar Code Configuration Methods

    Bar codes marked with a tilde ( ~ ) require the Multi-Code configuration method. Bar Code Configuration Methods The GS220 scanner can be bar code configured in two ways: the Single-Code Method and the Multi-Code Method. Single-Code Method Most features can be enabled or disabled using the Single-Code Method.

  • Page 7: Need To Start Over

    Need To Start Over? Scan the Recall Defaults bar code to erase all previous settings and return the scanner to its factory default communication protocol. Keyboard Wedge interface scanners will load keyboard wedge defaults. All other scanners load RS232 defaults. Recall Defaults ³...

  • Page 8: Code Types And Decode Rules

    Code Types and Decode Rules Bar code descriptions marked with an asterisk ( * ) define a feature that is a factory default. Bar codes marked with a tilde ( ~ ) require the Multi-Code configuration method. UPC/EAN * Enable UPC/EAN ³...

  • Page 9: Code 128

    Code 128 * Enable Code 128 ³ Disable Code 128 ³ Enable UCC/EAN-128 ‘]C1’ Code Formatting – For Coupon Code 128, see page 3–3. ³ * Disable UCC/EAN-128 ‘]C1’ Code Formatting ³ Ignore <FNC4> Code 128 Characters ³ * Use <FNC4> to Determine Extended ASCII Characters ³...
  • Page 10 Enable PARAF (Italian Pharmaceutical Codes) Support – Code 39 bar codes are converted to ³ PARAF format. * Disable PARAF Support ³ * Allow PARAF Codes Only ³ Allow Non-PARAF Codes ³ Enable TRI-OPTIC Code ³ * Disable TRI-OPTIC Code ³...

  • Page 11: Of 5 Codes

    Enable Alternate Code 39 Reference Comparison Check – assists with elements that ³ are below the 2 to 1 (wide to narrow) element width requirement. * Normal Code 39 Reference Comparison Check ³ ODES * Enable Interleaved 2 of 5 (ITF) ³...
  • Page 12 Alternative ITF first Bar Reference ³ * Normal ITF first Bar Reference ³ Enable Standard 2 of 5 ³ * Disable Standard 2 of 5 ³ ~ Standard 2 of 5 Symbol Length – To specify the number of characters to be decoded, scan ³...

  • Page 13: Codabar

    Enable Hong Kong 2 of 5 ³ * Disable Hong Kong 2 of 5 ³ Enable Follett ITF ³ * Disable Follett ITF ³ Codabar * Enable Codabar ³ Disable Codabar ³ Enable Dual Field Codabar ³ * Disable Dual Field Codabar ³...

  • Page 14: Telepen

    * Disable Code 11 ³ * Check for 1 Code 11 Check Digit ³ Check for 2 Code 11 Check Digits ³ * Do Not Check for 2 Code 11 Check Digits ³ Check for 2 Code 11 Check Digits if Code Length is Greater Than 10 Characters ³...

  • Page 15: Additional Decode Features

    Enable MSI Plessey MOD 10/10 Check Digit – Test MSI Plessey bar codes for a 2 digit ³ Modulo 10 check digit. * Enable MSI Plessey MOD 10 Check Digit – Test MSI Plessey bar codes for a 1 digit ³...

  • Page 16: Configurable Code Lengths

    ~ Minimum Symbol Length – Single-line default is 3. Combine this code with the proper code bytes ³ (on page 16–1), to specify the minimum number of characters in all non-UPC/EAN bar codes. ~ Symbol Length Lock – Combine this code with the proper code bytes, to lock the bar code’s ³...
  • Page 17 ~ Code Length Lock #2 ³ ~ Code Type Lock #2 ³ ~ Code Length Lock #3 ³ ~ Code Type Lock #3 ³ ~ Code Length Lock #4 ³ ~ Code Type Lock #4 ³ ~ Code Length Lock #5 ³...

  • Page 18: Supplements

    Supplements Enable Two Digit Supplements ³ * Disable Two Digit Supplements ³ * Enable Two Digit Redundancies – The scanner will scan the bar code plus the 2 digit add on ³ twice before accepting data. Disable Two Digit Redundancies ³...
  • Page 19 Enable Bookland (978) Supplement Required ³ * Disable Bookland (978) Supplement Required ³ Enable 977 (2 Digit) Supplement Required – The scanner will require a 2 digit supplement to be ³ scanned when an EAN-13 code begins with 977. * Disable 977 (2 Digit) Supplement Required ³...
  • Page 20 * Enable 2 Digit Supplements with 37x, 43x, or UPC # System 5 ³ Disable 2 Digit Supplements with 37x, 43x, or UPC # System 5 ³ * Enable 5 Digit Supplements with 37x, 43x, or UPC # System 5 ³...
  • Page 21 Enable Code ID’s with Supplements ³ * Disable Code ID’s with Supplements ³ * Beep Once on Supplements ³ Beep Twice on Supplements ³ Enable ISBN Check Digit Transmission – Not available with all models. ³ Disable ISBN Check Digit Transmission ³...
  • Page 22 No Supplement Checking if EAN-13 Code is just scanned ³ * Normal Supplement Checking ³ 3–5...
  • Page 23 3–6...

  • Page 24: Gs1 Databar

    GS1 Databar GoDEX’s GS220 scanners with software #14810 and higher can be configured to scan GS1 Databar type bar codes. Double Border Required – Due to the large spaces commonly found in GS1 Databar ³ symbologies, GoDEX recommends double border requirements be enabled when scanning GS1 Databar code type symbologies.

  • Page 25: Gs1 Databar Limited

    GS1 Databar Limited Enable GS1 Databar Limited ³ * Disable GS1 Databar Limited ³ * Transmit GS1 Databar Limited CD ³ Do Not Transmit GS1 Databar Limited CD ³ * Transmit GS1 Databar Limited Application ID – Application identifier “01” is transmitted by default. ³...

  • Page 26: Isbt Code 128 Implementation

    ISBT Code 128 Implementation Configuration Mode Enable ISBT Code 128 ³ Disable ISBT Code 128 ³ The bar codes below enable or disable a special transmit mode as outlined in section 3.5.2 of the ISBT-128 Specification. This output method allows the user to confirm independently the accuracy of the Code-128 check digit.

  • Page 27: Concatenation Configuration Mode

    Concatenation Configuration Mode The following bar codes are used to configure variable time requirements used to find the second bar code of the ISBT concatenation sequence. 100 msec to Find Concatenation Sequence ³ 200 msec to Find Concatenation Sequence ³ 300 msec to Find Concatenation Sequence ³...

  • Page 28: User-Defined Concatenation Configuration Mode

    Donation Identification Number + Donor Identification Number =á + &; Concatenation ³ Donation Identification Number + Confidential Unit Exclusion Status =á + &! Concatenation ³ Product Code + Expiration Date (Form 1) =< + =>Concatenation ³ Product Code + Expiration Date (Form 2) =<...
  • Page 29 The following example demonstrates how to configure the User-Defined ISBT identifiers: Assume the left-hand identifiers are the ISBT defined donation identification number: “=G”; and the right hand identifiers are country specific identifiers “&a”. Scan the ENTER/EXIT configuration mode bar code. Scan the 1 Left Identifier configuration mode bar code.

  • Page 30: Communications

    Communications Enable Light Pen/Wand Communication – Use this option if scanner should be used in ³ place of a light pen. * Enable RS232 – The scanner will work with RS232 +/- 12V serial output. ³ Load Keyboard Wedge Defaults – Scan this code before selecting Normal or Stand Alone ³...
  • Page 31 6–2...

  • Page 32: Scanner Operation

    Scanner Operation Configuration Mode Options Allow Configuration Mode on Power Up – the scanner can only enter Configuration mode before ³ any bar codes are scanned. * Allow Configuration Mode Anytime – Allow the configuration at any time. ³ Allow configuration Codes on Power Up – Once a product bar code is scanned after power- ³...

  • Page 33: Redundant Scans

    Redundant Scans * 0 Redundant Scans – Requires 1 good decode for a good scan. ³ 1 Redundant Scan – Requires 2 consecutive decodes of the same bar code data for a good ³ scan. 2 Redundant Scans – Requires 3 consecutive decodes of the same bar code data for a good ³...

  • Page 34: Led Options

    LED Options Flash Green LED if Rescan Allowed – This indicates same symbol timeout has elapsed. ³ Do Not Flash Green LED if Rescan Allowed ³ Reverse LED Functions – Red = Laser On Green = Good Read ³ * Normal LED Functions – Green = Laser On Red = Good Read ³...

  • Page 35: Beeper Options

    Beeper Options * Normal Tone ³ Optional Tone 1 ³ Optional Tone 2 ³ Optional Tone 3 ³ Optional Tone 4 ³ Optional Tone 5 ³ Optional Tone 6 ³ No Beep ³ * Beep Once on Supplements ³ Beep Twice on Supplements ³...
  • Page 36 Beep on BEL Command – The scanner beeps when it receives a BEL character from the host. If ³ a number is sent within 200 msecs before the BEL character, the scanner will beep that number of times. * Ignore BEL Command ³...

  • Page 37: Data Transmission Delays

    Data Transmission Delays Use these codes to select the amount of delay between sending data characters from the scanner to the host. This helps prevent the scanner from overflowing host-input buffers. * 1 msec Intercharacter Delay ³ 10 msec Intercharacter Delay ³...

  • Page 38: Communication Timeout Options

    Communication Time Out Options Enable Communications Time Out ³ * Disable Communications Time Out ³ * Beep Before Transmit ³ Beep After Transmit ³ ~ Variable Communications Time Out ³ * Default Communications Time Out (2 secs) ³ Short Communications Time Out (1 secs) ³...

  • Page 39: Host Scanner Commands

    Host Scanner Commands Enable D/E Disable Command – The scanner will disable scanning after it receives an ASCII ³ “D” from the host device. It will enable scanning when it receives an ASCII “E”. * Disable D/E Disable. ³ Enable Z/R Type D/E Simulation – The scanner will disable scanning after it receives an ASCII ³...
  • Page 40 Transmit Scanner ID byte with receipt of an “i” (69H) via RS232 – The ID byte is transmitted ³ as 3 bytes (i.e. 0, 0, 1). * Don’t Transmit Scanner ID byte with receipt of an “i” (69H) via RS232 ³...

  • Page 41: Test Modes

    Scan Count Mode ON – The scanner will enter scan count test mode and the scanner’s firmware ³ number will transmit to the host. Do not enable unless instructed by a GoDEX representative. * Scan Count Mode OFF ³ Power-Up with Saved Interface – Do not enable unless instructed by a GoDEX ³...

  • Page 42: Prefixes/Suffixes

    Prefixes/Suffixes Scan the Enter Configuration Mode bar code before trying to set these features (see the Multi-Code Method on page 1–1). User Configurable Prefixes, All Data ~ Configurable Prefix Character #1 – A prefix ID can be added and assigned for data transmission. ³...

  • Page 43: User Configurable Id Characters, Code Specific

    User Configurable ID Characters, Code Specific * Use Configurable Code ID Bytes as Prefixes – User configured, code specific ID bytes are ³ transmitted before the data. If using prefixes, user configured suffixes can not be used. Use Configurable Code ID Bytes as Suffixes – User configured, code specific ID bytes are ³...
  • Page 44 ‡ Enter configuration mode then scan this bar code followed by the three code byte bar codes (on page 16–1) that represent a unique ID character to be associated with this bar code type. ~ Configurable TRI-OPTIC ID ‡ ³ ~ Configurable Standard 2 of 5 ID ‡...

  • Page 45: Standard Prefix Characters

    Standard Prefix Characters Enable STX Prefix – The scanner will transmit a Start of TeXt (ASCII 02H) before each bar code. ³ * Disable STX Prefix ³ Enable Rochford-Thomson Mode ³ * Disable Rochford-Thomson Mode ³ Enable AIM ID Characters ³...
  • Page 46 Enable SANYO ID Characters ³ * Disable SANYO ID Characters ³ Enable Manufacturer ID Prefix ³ * Disable Manufacturer ID Prefix ³ Enable “C” Prefix ³ * Disable “C” Prefix ³ Enable “$” Prefix ID for UPC/EAN ³ * Disable “$” Prefix ID for UPC/EAN ³...

  • Page 47: Standard Suffix Characters

    Standard Suffix Characters Enable CR Suffix – The scanner transmits a carriage return after each bar code. ³ Disable CR Suffix. ³ Enable LF Suffix – The scanner transmits a line feed after each bar code. Disabled when ³ keyboard wedge defaults are loaded. Disable LF Suffix.

  • Page 48: Longitudinal Redundancy Check

    Longitudinal Redundancy Check A Longitudinal Redundancy Check (LRC) is an error checking character that is calculated across a sequence of data characters. It is determined by eXclusive ORing (XOR) the characters to be checked, starting with an initial value of 00H.

  • Page 49: Character Replacements

    Character Replacements To replace a character: Scan the enter/exit configuration mode bar code (on page 1–1). Scan the character to replace code (shown below). Scan the ASCII code byte value of the character you wish to replace. Refer to the ASCII Reference Table in the Code Byte Usage section of this manual.

  • Page 50: User Configurable Suffixes, All Data

    User Configurable Suffixes, All Data Note: Scan the Enter/Exit Configuration mode code before trying to set this feature. Refer to Multi-Code Method on page 1–1. ~ Configurable Suffix Character #1 – A suffix ID can be added and assigned for data ³...

  • Page 51: Special Formats

    Special Formats Enable SINEKO Mode ³ * Disable SINEKO Mode ³ Enable Newcode Formatting Mode A ³ * Disable Newcode Formatting Mode A ³ Enable Newcode Formatting Mode B ³ * Disable Newcode Formatting Mode B ³ Remove All Leading Zero’s ³...

  • Page 52: Code Formatting

    Code Formatting UPC/EAN Formatting * Transmit UPC-A Check Digit ³ Do Not Transmit UPC-A Check Digit ³ Transmit UPC-E Check Digit ³ * Do Not Transmit UPC-E Check Digit ³ Expand UPC-E to 12 Digits – Expand UPC-E bar codes to the 12 digit equivalent, UPC-A bar codes. ³...
  • Page 53 Transmit Lead Zero on UPC-E – This option will transmit a zero before each UPC-E bar code. ³ Do Not Transmit Lead Zero on UPC-E ³ Convert EAN-8 to EAN-13 – The scanner will transmit five zeros before the bar code to convert ³...

  • Page 54: Codabar Formatting

    Codabar Formatting Transmit Codabar Start/Stop Characters – Transmits Codabar’s Start/stop characters before ³ and after each bar code. * Do Not Transmit Codabar Start/Stop ³ * Normal Codabar Start/Stop Characters ³ Enable Transmit Codabar Start/Stop Characters as Lower Case Characters ³...

  • Page 55: Code 39 Formatting

    Code 39 Formatting Transmit Mod 43 Check Digit on Code 39 – This feature works in conjunction with Mod 43 ³ Check Digit on Code 39 option, on page 2–2. Both must be enabled for this feature to work. * Do Not Transmit Mod 43 Check Digit on Code 39 ³...

  • Page 56: Plessey

    Plessey Transmit UK Plessey Check Digit – The scanner will transmit UK Plessey Check Digit characters ³ and must be used with the UK Plessey option. * Do Not Transmit UK Plessey Check Digit ³ Enable UK Plessey Special Format ³...
  • Page 57 9–6...

  • Page 58: Rs232

    RS232 * Enable RS232 Mode – the scanner will work with RS232 +/-12V serial output. ³ Parity Features A parity bit is an extra data bit used to help catch data transmission errors. The scanner’s parity must match the host’s parity. No Parity ³...

  • Page 59: Data/Stop Bits

    * 9600 BAUD Rate ³ 4800 BAUD Rate ³ 2400 BAUD Rate ³ 1200 BAUD Rate ³ 600 BAUD Rate ³ 300 BAUD Rate ³ Data/Stop Bits 8 Data Bits – The number of data bits transmitted for each character. ³...
  • Page 60 * Character RTS/CTS – Activates/Deactivates RTS signal for each character. ³ Message RTS/CTS – Activates RTS before sending the first character and leaves it active ³ until after the last character has been transmitted. Invert RTS Polarity (RSV1) -12V = Active +12V = Inactive ³...

  • Page 61: Software Handshaking

    Enable RTS Counter Toggle – The scanner will toggle the RTS line on a good decode. ³ * Disable RTS Counter Toggle ³ Enable XON/XOFF Handshaking – The scanner will stop transmission whenever on XOFF ³ (ASCII 13H) is received. Transmission will resume after an XON (ASCII 11H) is received.

  • Page 62: Miscellaneous

    Enable 5 NAK Retries Allow up to 5 retransmissions of the data if a ³ NAK is received. * Disable 5 NAK Retries ³ Enable GLS Handshaking – Accept ]V for the ACK acknowledgement. ACK will no longer be ³ accepted but NAK and any additional ACK/NAK protocol characters enabled are still accepted.
  • Page 63 10–6...

  • Page 64: Keyboard

    Keyboard Enable Keyboard Emulation Load Keyboard Wedge Defaults – Loads the default settings for keyboard wedge mode. ³ Enable Stand-Alone Keyboard Emulation – Use this with special stand-alone models that are ³ not cabled for an external keyboard. Scan this bar code to enable the Stand-Alone Mode.

  • Page 65: Keyboard/System Type

    Belgium Keyboard ³ Japan Keyboard ³ IBM 4700 Financial Keyboard ³ Sweden/Finland Keyboard ³ Slovenian Keyboard ³ Keyboard/System Type * AT Keyboard – Includes IBM PS/2 and compatible models 50, 55, 60, 80. ³ XT Keyboard – Special firmware in Voyager. ³...

  • Page 66: Dumb' Terminal Selections

    ‘Dumb’ Terminal Selections Note: The following terminals may require custom cables. IBM Terminal Keyboards ³ Reserved Terminal Keyboard #2 ³ Reserved Terminal Keyboard #3 ³ Reserved Terminal Keyboard #4 ³ Reserved Terminal Keyboard #5 ³ Reserved Terminal Keyboard #6 ³ Reserved Terminal Keyboard #7 ³...

  • Page 67: Special Keyboard Features

    Special Keyboard Features Transmit Make Code Only – Not available on all models. ³ * Transmit Make/Break Code – Not available on all models. ³ * Transmit FOH Break Code – The scanner will transmit the FOH in the break-code sequence. ³...
  • Page 68 Enable Auto Detect Mode (AT/PS2) – Automatically detects caps lock status. ³ * Disable Auto Detect Mode (AT/PS2) ³ Enable Caps Lock (XT) ³ * Disable Caps Lock (XT) ³ Send Numbers as Keypad Data – All data is sent as if it has been entered on a keypad. ³...

  • Page 69: Interscan Code Delays

    Enable Right Alt Key Sequencing ³ Disable Right Alt Key Sequencing ³ Enable LaCaixa Special Keyboard Prefix & Suffix Scan Codes ³ * Disable LaCaixa Special Keyboard Prefix & Suffix Scan Codes ³ InterScan Code Delays * InterScan Code Delay 800 msec – The time specified represents the amount of time between ³...

  • Page 70: Control Sets

    Control Sets In general, standard bar code symbologies will only encode the ASCII character set. Function keys, arrow keys and many other extended keys on an IBM compatible keyboard do not translate to ASCII characters. One method of ‘bar coding’ the extended keys is to substitute the extended key codes when a specific ASCII control character is found in the bar code stream.
  • Page 71 ASCII (HEX) ASCII Control Extended Key Null Numeric Keypad + (Plus) Num Lock Down Arrow Numeric Keypad - (Minus) Insert Delete System Request  (Right Arrow)  (Left Arrow) Caps Lock Shift Tab Left Alt Enter Left Control Up Arrow Home Page Up Page Down...

  • Page 72: Ocia

    OCIA Enable OCIA Mode – Select this option if communications requires OCIA (Optically ³ Coupled Interface Adapter). The host clocks this serial interface. Load OCIA Defaults ³ Enable DTS/Siemens ³ * Enable DTS/Nixdorf ³ Enable NCR-S ³ Enable NCR-F ³ * Transmit character count with non-UPC codes while transmitting in OCIA NCR-S mode ³...
  • Page 73 12–2...

  • Page 74: Light Pen Parameters

    Light Pen Parameters Enable Light Pen Mode – Select this option if the scanner will be used in place of a light pen. ³ It provides light pen emulation of each bar code scanned. * Bars High ³ Spaces High ³...

  • Page 75: Set Narrow Element Width

    Set Narrow Element Width 10x Narrow Element Border – Allows the transmission of Light Pen/Wand emulation using ³ a 10x border. * 50x Narrow Element Border – Allows the transmission of Light Pen/Wand emulation using ³ a 50x border. * 1 ms Narrow Element Width – Allows the transmission of Light Pen/ Wand emulation at ³...

  • Page 76: Ibm 46Xx Configuration

    ® 46xx Configuration IBM Port Enable IBM 46xx Communication – For IBM 46xx SIOC/RS485 communications. Not all ³ scanners support this interface. The correct interface board is required. Load 46xx IBM Defaults – Load default format settings for the IBM 46xx systems. ³...
  • Page 77 14–2...

  • Page 78: Usb

    Enable USB Interface ♦ ³ Enable Low Speed USB Defaults ♦ ³ ♦ This feature is limited to GoDEX scanners without integrated Low Speed USB electronics. Load Integrated Full Speed USB Keyboard Emulation Defaults ³ Load Integrated Full Speed USB IBM/OEM Defaults ³...
  • Page 79 Enable Uni-Directional USB Serial Emulation Mode ³ Enable Bi-Directional USB Serial Emulation Mode ³ Enable Bar Code ID ³ Disable Bar Code ID ³ Enable USB Reserve Code #1 ³ Disable USB Reserve Code #1 ³ Enable USB Reserve Code #2 ³...

  • Page 80: Code Bytes Usage

    Code Bytes Usage The scanner must be in Configuration Mode for the features requiring code bytes for configuration. The Enter/Exit Configuration Mode bar code must be scanned before starting the configuration cycle. User configurable prefix/suffix characters can then be saved by scanning the 3 digit decimal equivalent of the ASCII character into the appropriate character location with the code byte bar codes.

  • Page 81: Reserved Codes

    Code Byte 8 ³ Code Byte 9 ³ Reserved Codes ~ Enable Reserved Code – Contact GoDEX for information about this feature. ³ ~ Disable Reserved Code ³ Code Type Table Code Byte Code Types UPC-A UPC-E EAN-8 EAN-13 Code 39...

  • Page 82: Ascii Reference Table

    ASCII Reference Table Decimal Value/ Control HEX Value Character Code Byte Value Keyboard Eqv 16–3...
  • Page 83 Decimal Value/ Control HEX Value Character Code Byte Value Keyboard Eqv space,blank “ & ‘ apostrophe comma minus period number zero number one 16–4...
  • Page 84 Decimal Value/ Control Keyboard HEX Value Character Code Byte Value < less than > greater than shift P letter l letter O 16–5...
  • Page 85 Decimal Value/ Control Keyboard HEX Value Character Code Byte Value shift K shift L shift M à,shift N , shift 0, underscore ‘ accent grave 16–6...

  • Page 86: Extended Key Code Reference Table

    Decimal Value/ Control HEX Value Character Code Byte Value Keyboard Eqv vertical slash alt mode (alt mode) delete, rubout Extended Key Code Reference Table At Scan PS2 Scan Prefix/Suffix Value 3151 Code Code Hex = Decimal  80H = 128 ...
  • Page 87 At Scan PS2 Scan Prefix/Suffix Value 3151 Code Code Hex = Decimal 97H = 151 98H = 152 99H = 153 9AH = 154 9BH = 155 Numeric + 9CH = 156 Numeric - 9DH = 157 Numeric * 9EH = 158 Caps Lock 9FH = 159 Num Lock...

  • Page 88: Miscellaneous Features

    Miscellaneous Features Custom Defaults Enable Factory Defaults – Scan this code followed by Recall Defaults code to enable and ³ load factory defaults. Recall Defaults ³ Ruby Verifone Defaults – Scan this code followed by Recall Defaults code to enable and ³...

  • Page 89: Serial Program Mode

    Serial Program Mode For Serial Program Mode, all commands must be framed by an STX (02 Hex) and ETX (03 Hex). To recall defaults: Transmit <STX>999999<ETX> through the Serial Port. This will put the scanner in serial program mode. Scanning will be suspended and the scanner will respond with an ACK (06 Hex).

  • Page 90: Contact Information

    Contact Information www.godexintl.com Godex International Godex Americas infoGT@godexintl.com infoGA@godexintl.com +886-2-2225-8580 +1-805-987-5100 Godex China Godex Europe infoGC@godexintl.com infoGE@godexintl.com +86-21-5665-1313 +49-2193-53396-0 18–1...
