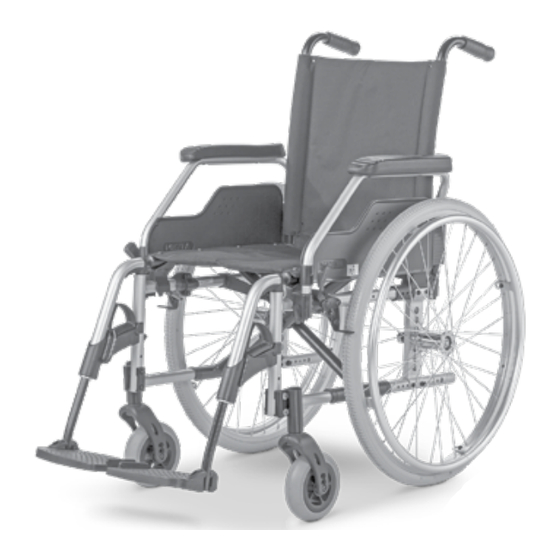

- Page 1 Lightweight wheelchairs Model 1.750, 1.850 Eurochair Model 2.750 Eurochair Model 2.850 Eurochair Pro, XXL Operating manual...
-
Page 3: Table Of Contents
Contents Meaning of the applied markers Introduction List of models Indications / contraindications Acceptance Intended purpose Wheelchair folding/unfolding/carrying Adjustment Combination with manufacturer foreign products Reinstallment Life span Overview Brake Pressure brake - user Locking the brakes Releasing the brakes Service brake Drum brake for accompanying persons Function as operating brakes Brake lever extension... - Page 4 Lower leg support Footplates Footboard Leg support upper part Turning the leg supports to the side Swivelling in the leg supports Removing the leg supports Attaching the leg supports Mechanically height-adjustable leg supports Lifting/lowering the leg support Lifting/lowering the amputee leg support Arm supports Removing the arm support Inserting the arm support...
- Page 5 Handrims Specialities for double handrims Propelling the wheelchair Folding/unfolding with double handrims Head support Therapy table Retaining strap Basic safety information Accompanying person Transfer out of the wheelchair Reaching for objects Driving on falling, rising or transverse gradients Crossing obstacles Loading the wheelchair Transport in vehicles Transport safety of the empty wheelchair...
- Page 6 Technical data Tyre pressure of pneumatic tyres Applied norms Data according to ISO for model 1.750 Eurochair Further technical data for model 1.750 Eurochair Data according to ISO for model 1.850 Eurochair Further technical data for model 1.850 Eurochair Values acc. to ISO for model 2.750 Eurochair Further technical data for model 2.750 Eurochair Values acc.
-
Page 7: Meaning Of The Applied Markers
E-mail address INTRODUCTION < info@meyra.de > and inform the respon- sible governmental agency of your country. Read and observe this manual before first operation. LIST OF MODELS... -
Page 8: Acceptance
musculoskeletal/neuromusculoskeletally caused motion limitations etc.). In case of physical limitation, such as The wheelchair may not be used without blindness, a driving ability certifications an accompanying person in cases of imbal- for independent driving of the wheelchair ance, cognition disorders, large extremity is required. -
Page 9: Wheelchair Folding/Unfolding/Carrying
environmental conditions, such as sun- Tip the wheelchair slightly to one side in light, extreme cold or salty water. order to make the unfolding easier. At the side resting on the floor, press the seat tube – Sand and other dirt particles can seize down to the end stop. -
Page 10: Combination With Manufacturer Foreign Products
COMBINATION WITH MAN- LIFE SPAN UFACTURER FOREIGN We expect an average life span of about PRODUCTS 4 years for this wheelchair, as far as the wheelchair is applied for its designated Any combination of your wheelchair with purpose and all maintenance and service components not supplied by us generally guidelines. -
Page 11: Overview
OVERVIEW The overview shows, representative for all models, the most important components of the wheelchair. Pos. Description (1) Push handle (8) Steering wheel (2) Back support (9) Type plate (on the crossbrace) (3) Arm support (10) Driving wheel (4) Arm support / clothes guard (11) Handrim (5) Seat belt/seat cushion (12) Locking knob –... -
Page 12: Brake
BRAKE Arrange an immediate repair of the brakes by your specialist workshop if the braking performance reduces. Wheelchairs with PU-tyres when stored for longer periods of time, should be put away safely without activated pressure brakes, since otherwise permanent defor- mations to the tyre surface could occur. -
Page 13: Drum Brake For Accompanying Persons
Drum brake for accompanying persons The drum brake is activated by the accom- panying person through the brake levers [1]. Function as operating brakes Use both brake levers evenly and only light- ly in order to achieve a controlled decelera- tion of the wheelchair. -
Page 14: Brake Lever Extension
Brake lever extension Do not use the grips of the brake lever as support. Do not pull off the brake lever extension whilst in motion. – Accidents could result if the brake lever extension is drawn too much. The brake lever extensions multiply the ap- plied brake force and reduce the force you need to apply in order to lock the brakes (1). -
Page 15: Leg Supports
LEG SUPPORTS Before any actions on the leg supports the wheelchair is to be secured against unintentional rolling motions. ☞ Therefore observe chapter Brake on page 12. Calf belt Do not drive without the calf belt. – Dan- ger of accidents. The removable calf belt (1) prevents the feet from sliding off the back of the footboard. -
Page 16: Heel Strap
Heel strap The heel strap (1) prevents the feet from sliding off the back of the footplates. Removing the heel strap For removal the heel strap is pulled off of the attachment bar (2) or, after opening the velcro fastener, pulled from the insert tube (3). -
Page 17: Lower Leg Support
Lower leg support The footplates, resp. footboard needs to be folded up before entry or exit [1]. ☞ Check the locking points! – Remove both feet from the footplates. – Remove lower calf belt, if present. ☞ Therefore observe chapter Calf belt on page 15. -
Page 18: Leg Support Upper Part
Leg support upper part The upper leg support with an inserted lower leg support is termed leg support. Turning the leg supports to the side Leg supports turned to the side are re- leased automatically and can easily come off. Note this when handling (e.g. trans- port). -
Page 19: Swivelling In The Leg Supports
Swivelling in the leg supports For inward swivelling, let the leg supports swivel forward until the lock audibly engag- es [1]. ☞ After audibly swivelling the leg sup- ports inward check the respective lock- ing device. ☞ Afterwards observe chapter Lower leg support on page 17. -
Page 20: Removing The Leg Supports
Removing the leg supports With removed leg supports there is an in- creased danger of tilting backwards. For easy transfer into and out of the wheel- chair as well as a reduced wheelchair length (important for transport) the leg supports can be removed [1]. -
Page 21: Mechanically Height-Adjustable Leg Supports
Mechanically height-adjustable leg supports Never put the free hand into the adjust- ment mechanism. Have the leg support secured by an accompanying person against unintentionally falling down. Do not let the leg support drop on its own weight. – Danger of injury! Lifting/lowering the leg support Before lifting/lowering relieve the leg sup- port by an accompanying person by slightly... -
Page 22: Arm Supports
ARM SUPPORTS Do not use the arm supports to lift or car- ry the wheelchair. Do not drive without the arm supports. No not grab between the frame and arm support. – Danger of squashing! When the wheelchair is being pushed by an attendant the user is to place his hands onto the arm cushions or in his lap and not at the sides between body and... -
Page 23: Removing The Arm Support
Removing the arm support Fold the locking levers (2)+(3) first in order to remove the arm support. Afterwards remove the arm support toward the top [1]. Inserting the arm support First insert the arm support beside the seat surface from the top into the guide [4]. Then press the arm support down and swiv- el the locking lever back down (2) resp. -
Page 24: Swivelling Up The Arm Support
Swivelling up the arm support For transfer out of/into the wheelchair the arm support can be swivelled upward as well as folded behind the back support [1]. Fold the front locking lever up in order to swivel up the arm support (2). Afterwards swivel the arm support about 90°... -
Page 25: Height Adjustment Of The Arm Support
Height adjustment of the arm support For height adjustment of the arm support secure the support pad with one hand to prevent it from falling down. Danger of jamming during the height ad- justment of the arm supports between the wheels and adjustment lever. Version 1: (only on model 1.750, 1.850) The upholstered arm support pads can be... -
Page 26: Back Support
BACK SUPPORT Back support belt, standard The back strap is tightened through the back tubes (1). The extended back support element is vel- cro strapped underneath the seat strap. Back support with angle adjust- ment An angle adjustment increases the dan- ger of tilting and may only be carried out with support castors attached. -
Page 27: Continuous Angle Adjustment Of The Back Support
Continuous angle adjustment of the back support A back support with a gas-pressure spring may only be reclined to the rear when the wheelchair is parked on an even and firm surface. For driving, the back support must be returned to the upright position. During the angle adjustment both push handles are to be pushed down evenly, otherwise there is a danger of tilting. -
Page 28: Back Shell
Back shell (only on model 2.750, 2.850) The back support shell [1] needs to be re- moved before folding the wheelchair. Removing the back support shell Operate parking brakes. ☞ Therefore observe chapter Brake on page 12. 2. Unscrew the knurled screws (2) of the back support shell. -
Page 29: Push Bar
PUSH BAR Before any actions on the push bar the wheelchair is to be secured against un- intentional rolling motions. – View chap- ter Turning the leg supports to the side on page 18. The removable push bar connects the two back support tubes at the pushing handles [1], serves to push the wheelchair and at the same time is the bracket for the head sup-... -
Page 30: Push Handles
PUSH HANDLES The height adjustable push handles are about 20 cm continuously height adjustable and secured against being pulled out [1]. Push handles with clamping device ☞ In doing so, hold onto the push handle that is to be adjusted with one hand. ☞... -
Page 31: Wheels
WHEELS Tyres are made of a rubber mixture and can leave permanent or difficult-to-re- move marks on some surfaces (e.g. plas- tic, wooden or parquet flooring, carpets, mats). Drive wheels Do not use the wheelchair without mounted drive wheels. After inserting the drive wheel the locking button (2) must stick a couple of millime- tres out of the wheel nut. -
Page 32: Support Castors
SUPPORT CASTORS Support castors do not provide sufficient protection against tipping over in certain situations. Definitely refrain from the following: – Leaning the upper body far back. – Jerky acceleration, especially when driving uphill. In order to raise the tilting stability never drive without the support castor swiv- elled to the back. -
Page 33: Handrims
HANDRIMS Weather related danger of slipping of the hands on the damp, smooth handrims. ☞ If needed apply optional handrim cover. The wheelchair can be propelled with on hand with the double handrim [1]. Specialities for double handrims Before each ride ensure the secure fit of the connection rod (2). -
Page 34: Head Support
HEAD SUPPORT Always adjust the upper edge of the head support close to the back of the head and at about eye level. Do not position the head support at neck height. Pull the head support out of the bracket maximally up to the marking. -
Page 35: Retaining Strap
RETAINING STRAP Make sure that no objects are trapped be- tween belt and the body! The retaining strap is not part of the re- taining system for the wheelchair and/or the driver during transport in motor vehi- cles. The retaining strap [1] resp. [2] is screwed from the back onto the respective back support tube. -
Page 36: Basic Safety Information
Increased danger of tipping over when that can be found on our website: < www. using the angle adjustable back support. meyra.com >. Before starting to drive make sure that no The wheelchair serves solely for trans- negative seat inclination has been adjust- porting one sitting person. -
Page 37: Transfer Out Of The Wheelchair
Transfer out of the wheelchair Never lean towards the downhill direction when driving on rising, falling or transverse Drive with the wheelchair as closely as pos- gradients. sible to the spot where you want to switch Avoid jerky changes of the driving condition out of the wheelchair. -
Page 38: Crossing Obstacles
Crossing obstacles The crossing of stairs is only possible with the assistance of two helpers who are fa- After having overcome stairs, support cas- miliar with the danger situation and firmly tors that were previously removed need guide the wheelchair. to be mounted again resp. -
Page 39: Transport In Vehicles
Meaning of the labels on the wheelchair on page 57. ☞ Observe the guideline < Safety with Meyra-wheelchairs, also during transport in motor vehicles >! – This document and further information are available in the < Information center > on our web-... -
Page 40: Driving On Public Highways
☞ In case of physical handicaps, such as soap. blindness the use of the wheelchair is Further information to cleaning can be only permitted with an accompanying found in the < Infozentrum > on our website: person. < www.meyra.com >. -
Page 41: Finish
Finish Repairs The high quality finish ensures an optimum Repairs are generally to be carried out by of protection against corrosion. a specialist dealer. ☞ Should the coating be damaged with Repairs scratches or similar, these areas can be Trustingly contact your specialist dealer for touched up with our paint pen availa- maintenance work. -
Page 42: Information For Extended Pauses Of Use
Information for extended pauses of use No special measures are required during ex- tended pauses of use. Nevertheless storage temperatures are to be observed. ☞ For this observe chapter Technical data on page 45. DISPOSAL The disposal must comply with the respec- tive national law. -
Page 43: Maintenance Schedule
Maintenance schedule WHEN WHAT REMARK Before starting out General Carry out test yourself or with a helper. Test for faultless operation. Before starting out Test brakes for fault- Carry out test yourself or less operation with a helper. The locked wheels should Activate brake lever to the not be able to turn un- limit. - Page 44 WHEN WHAT REMARK Before starting out Check the back tubes Carry out the test yourself and frame tubes for or by a helper. damages If deformations or cracks occur in the welding seams, contact a specialist workshop immediately for repairs. – Danger of acci- dent! Especially before driving in Check the lighting...
-
Page 45: Technical Data
TECHNICAL DATA Tyre pressure of pneumatic tyres Maximum tyre pressure is printed on the All data given in the < Technical data > refers tyres on each side. to the standard version. Full tyre pressure – steering wheel The overall length depends on the position and size of the drive wheels. -
Page 46: Data According To Iso For Model 1.750 Eurochair
Data according to ISO for model 1.750 Eurochair min. max. Overall length with leg support 1000 mm 1040 mm Overall width 560 mm 740 mm (from a width of 700 mm the wheelchair is not suited for trans- port on a train) Overall dimensions 147 kg 148 kg... -
Page 47: Further Technical Data For Model 1.750 Eurochair
Further technical data for model 1.750 Eurochair min. max. Length without leg support 690 mm 730 mm Overall height 900 mm 960 mm Seat cushion thickness 30 mm 60 mm Length without leg supports, drive wheels 610 mm 640 mm (Support castors are removed or swivelled underneath the seat) Additional load –... -
Page 48: Data According To Iso For Model 1.850 Eurochair
Data according to ISO for model 1.850 Eurochair min. max. Overall length with leg support 1020 mm 1050 mm Overall width 560 mm 710 mm (from a width of 700 mm the wheelchair is not suited for trans- port on a train) Overall dimensions –... -
Page 49: Further Technical Data For Model 1.850 Eurochair
Further technical data for model 1.850 Eurochair min. max. Length without leg support 700 mm 760 mm Overall height 840 mm 930 mm Seat cushion thickness 30 mm 60 mm Length without leg supports, drive wheels 610 mm 630 mm (Support castors are removed or swivelled underneath the seat) Additional load –... -
Page 50: Values Acc. To Iso For Model 2.750 Eurochair 2
Values acc. to ISO for model 2.750 Eurochair min. max. Overall length with leg support 1050 mm 1080 mm Overall width 580 mm 730 mm (from a width of 700 mm the wheelchair is not suited for trans- port on a train) Overall dimensions –... -
Page 51: Further Technical Data For Model 2.750 Eurochair 2
Further technical data for model 2.750 Eurochair min. max. Length without leg support 700 mm 760 mm Overall height 930 mm 930 mm Seat cushion thickness 50 mm 50 mm Length without leg supports, drive wheels 700 mm 760 mm (Support castors are removed or swivelled underneath the seat) Additional load –... -
Page 52: Values Acc. To Iso For Model 2.850 Eurochair 2 Pro
Values acc. to ISO for model 2.850 Eurochair min. max. Overall length with leg support 1050 mm 1100 mm Overall width 580 mm 730 mm (from a width of 700 mm the wheelchair is not suited for trans- port on a train) Overall dimensions –... -
Page 53: Further Technical Data For Model 2.850 Eurochair 2 Pro
Further technical data for model 2.850 Eurochair min. max. Length without leg support 830 mm 890 mm Overall height 910 mm 990 mm Seat cushion thickness 30 mm 60 mm Length without leg supports, drive wheels 700 mm 830 mm (Support castors are removed or swivelled underneath the seat) Additional load –... -
Page 54: Values Acc. To Iso For Model 2.850 Eurochair 2 Xxl
Values acc. to ISO for model 2.850 Eurochair min. max. Overall length with leg support 1050 mm 1100 mm Overall width 680 mm 850 mm (from a width of 700 mm the wheelchair is not suited for trans- port on a train) Overall dimensions –... -
Page 55: Further Technical Data For Model 2.850 Eurochair 2 Xxl
Further technical data for model 2.850 Eurochair min. max. Length without leg support 830 mm 890 mm Overall height 910 mm 990 mm Seat cushion thickness 30 mm 60 mm Length without leg supports, drive wheels 700 mm 830 mm (Support castors are removed or swivelled underneath the seat) Additional load –... -
Page 56: Meaning Of The Symbols On The Washing Instruction
Meaning of the symbols on the washing instruction (the symbols correspond to European standard) Wash as delicates with the indicated maximum temperature in °C. Wash as regular laundry with the indicated maximum temperature in °C. Hand wash only Do not bleach. Not suited for the dryer. -
Page 57: Meaning Of The Labels On The Wheelchair
Meaning of the labels on the wheelchair Attention! Read the operating manuals and other provided documen- tation. Do not lift the wheelchair at the arm supports or leg supports. Removable parts are not suitable for carrying. Attention Readjust the brakes. Attention Increased danger of tilting when on inclinations / slopes, es- pecially in combination with short wheel base. -
Page 58: Meaning Of The Symbols On The Type Plate
Meaning of the symbols on the type plate Manufacturer Order number Serial number Production date Permitted user weight max. permissible total weight Permitted axle weights Max. permissible rising gradient Max. permissible falling gradient Permitted maximum speed The product is approved as a seat within a motor vehicle. Max. -
Page 59: Inspection Certificate
INSPECTION CERTIFICATE Recommended safety inspection 1st year (at least every 12 months) Vehicle data: Stamp of specialist dealer: Model: Signature: Delivery note no.: Place, date: Serial-no.(SN): Next safety inspection in 12 months Date: Recommended safety inspection 2nd year Recommended safety inspection 3rd year (at least every 12 months) (at least every 12 months) Stamp of specialist dealer:... -
Page 60: Warranty / Guarantee
< Information center > sector < PMS > on description, delivery note number with de- our website < www.meyra.com >. livery date and serial number (SN). We reserve the right to make technical im- The serial number (SN) can be read off of provements. -
Page 61: Warrantee / Guarantee Section
Warrantee / Guarantee section Please fill out! Copy if necessary and send the copy to the specialist dealer. Warranty / Guarantee Model designation: Delivery note no.: SN (view type plate): Date of delivery: Stamp of the specialist dealer: Inspection certificate for transfer Vehicle data: Serial-no.(SN): Stamp of specialist dealer:... -
Page 62: Notes
NOTES... - Page 63 NOTES...
- Page 64 Your specialist dealer MEYRA GmbH Meyra-Ring 2 32689 Kalletal Kalldorf GERMANY +49 5733 922 - 311 +49 5733 922 - 9311 info@meyra.de www.meyra.de 205 347 701 (Status: 2021-04) All technical modifications reserved.
