- Page 1 Multi-Channel ANEMOMASTER for Windows Instruction Manual KANOMAX JAPAN INC.
-
Page 2: Table Of Contents
Contents Caution...................................... 2 Transcription of this Manual..............................2 1. Components of this System............................3 2. Operation Environment ..............................3 3. Functional Specification..............................4 4. Outline of Software ................................. 5 4.1 Components of Software...............................5 1) Components of Software ..............................5 2) Data File List..................................6 4.2 Set up and Delete of Multi-channel ANEMOMASTER Software ................7 1) Set up ( install ) of Multi-channel ANEMOMASTER....................7 2) Delete (uninstall) of Multi-channel ANEMOMASTER....................8... -
Page 3: Caution
Caution １．Copyrights of this software are property of Kanomax Japan Inc. ２．Partly or wholly duplicating and using this software and user manual without permission is not allowed. ３．Only one computer is allowed to install and use per a set of this software you purchased. -
Page 4: Components Of This System

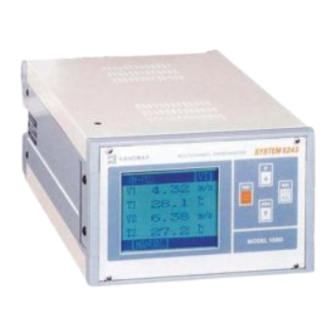

1. Components of this System 5 units of ANEMOMASTER Corresponds to 4 modules of (MAX) can be connected V, VT, VTH, SP Install Multi-channel ANEMOMASTER software for Windows Pic1 Components of system 2. Operation Environment : Computer loaded with Pentium CPU ・Computer : Windows 95 or Windows 98 ・ＯＳ... -
Page 5: Functional Specification
3. Functional Specification ITEM CONTENTS Model No. 1550, 1560, 1500 Module V, VT, VTH, SP Numbers 5 units (maximum) can be connected. ANEMOMASTER Channel Nos to measure MAX. 320CH (in case of V module) CH Nos depend on module. Probe positioning Optional position in 3 dimension of rectangular coordinates. -
Page 6: Outline Of Software
4. Outline of Software 4.1 Components of Software 1) Components of Software This software consists of following files. Items File name Comment Set up program Setup.exe Program to set up “Multi-channel ANEMOMASTER software for Windows”. Set up program checks PC environment and install needed files automatically. -
Page 7: Data File List
2) Data File List Basic data file ・ File name：###.KAM ・ System ：Binary system ・ Contents ：File info, system parameter, RS232C parameter, Measure parameter, Measured time series data, Statistic calculation result ＊This program does data save, handle data, indication, on the basis of this data file. Parameter file ・... -
Page 8: Set Up And Delete Of Multi-Channel Anemomaster Software
4.2 Set up and Delete of Multi-channel ANEMOMASTER Software 1) Set up (install ) of Multi-channel ANEMOMASTER When you execute “Setup.exe” , set up program will check PC environment and install needed files automatically. Default directory of install destination is “ C:¥Program – File¥MAVIEW “ . If you want to change destination, click “... -
Page 9: Delete (Uninstall) Of Multi-Channel Anemomaster
2) Delete (uninstall) of Multi-channel ANEMOMASTER 削除 : 改ページ You can delete multi-channel ANEMOMASTER soft by “ Add/Remove Programs” of “Control Panel”. Pic.3 Delete of multi-channel ANEMOMASTER... -
Page 10: Displays
4.3 Displays This program adopted Multi-document interface ( MDI ). This program opens basic data file ( *.KMA ) and indicate set up data and measurement data which are stored in files. More than two basic data files can not be opened simultaneously. Structure of display is as follows. -
Page 11: Operation Order
5. Operation Order ① Start up program Start up operation (Exe.file : MAVIEW.EXE ) Pic. 4 Index screen ② Initial screen New draw up of data file Pic. 5 File menu : New... - Page 12 ③ Module set up Pic. 6 Module set up screen ④ Probe set up Pic. 7 Probe set up screen ⑤ Open data indication windows Pic. 8 Data indication screen...
- Page 13 ⑥ Set up RS232C Pic. 9 RS232C set up dialogue box ⑦ Measurement parameter set up Pic. 10 Measurement menu ⑧ Start measuring *Click start measurement button of measurement parameter set up dialogue box Pic. 11 Measurement parameter set up dialogue box ⑨...
- Page 14 measurement ) ⑩ Data display after finished data take-in ※ Possible to indicate previous measurement data again. Pic. 13 Data display after finished data take-in ⑪ Data storage Pic 14 File menu Pic. 15 Name and save file ⑫ Finish program : Select “Close” of file menu and finish the program.
-
Page 15: Operation Explanation
6. Operation Explanation 6. 1 Structure of Display Name of program Name of file Title bar Menu bar Tool bar Operation Area Status bar Common message File condition Status Data condition Pic. 16 Structure of display... -
Page 16: Module Set Up
You can move main part of ANEMOMASTER to optional position in set up area by mouse dragging. To delete register of module or main part of ANEMOMASTER, select NULL from combo box. Set up items Model No. of ANEMOMASTER 1550, 1560, 1500 Module type NULL, V, VT, VTH, SP Numbers of ANEMOMASTER main body... -
Page 17: Probe Set Up
6.3 Probe Set up Select items to input Key input Select unit You can change “ * ” and of position “ Blank “ by click Pic. 18 Probe set up window Items to input Connect condition (USE) : 〇 : Connect, × : Disconnect ( change by click or <Enter> key ) Probe No. -
Page 18: Rs232C Set Up
6.4 RS232C Set up Pic. 19 RS232C set up dialogue box Select contents below from combo box. Correspondence port COM1, COM2, COM3, COM4 Baud rate 300, 600, 1200, 2400, 4800, 9600, 19200 bps Delimiter CR, CRLF * When you set up correspondence condition, confirm if it corresponds to ANEMOMASTER main body. -
Page 19: Measurement Parameter Set Up
6.5 Measurement Parameter Set up Possible to select measurement times Pic. 20 Measurement parameter set up dialogue box or repeat time Set up contents below. Measurement mode Fixed to channel mode Data mode Possible to select average mode (Average) or Instant mode (Instant) Interval of measurement time 0.1～6553.5 seconds, possible to set by every 0.1 second... -
Page 20: Time Series Graph
6.6 Time Series Graph 1) Time series graph indication parameter set up Select only times When you click, dialogue box to select probe to display will appear Pic. 21 Time series graph indication parameter set up dialogue box Set up vertical and horizontal line of time series graph, and select probe to display. Air velocity : 0～90m/s Temperature : -50～600℃... -
Page 21: Time Series Graph Indication Window
3) Time series graph indication window Statistics data Line cursor Data cursor Cursor is pointing on position the screen Pic. 23 Time series graph indication window Items indicated Turn page scroll bar on vertical line Pic. 23 Time series graph indication window... -
Page 22: Data Table Display
6.7 Data Table Display 1) Set up data table indication parameter Check items to display Pic. 24 Data table indication parameter set up dialogue box 2) Data table indication window Scroll bar to change Sampling data of 261’st sampling time time is displayed Pic. -
Page 23: Data Display Windows In Plural
6.8 Data Display Windows in Plural Graph 1 Graph 2 Table Pic. 26 Data display windows in plural You can display graphs and tables in plural on screen by adjusting each display size of time series graph and data table. -
Page 24: Print Out
6.9 Print Out This program is possible to print out time series data graph and data table. Orders of print out: a. Click and active window of time series graph (or data table ) you want to print out. b. Select “Print out” item from “File” menu (or click print out icon of tool bar). -
Page 25: User Back Up Function
6.10 User Back up Function 1) Version information Pic. 27 Version information dialogue box 2) Tool hint Tool hint Pic. 28 Tool hint When you put mouse pointer on control, tool hint will appear. 3) File information Possible for user to input Pic. -
Page 26: Message Dialogue Box
7. Message Dialogue box 7.1 Message Dialogue box “Message dialogue box will be displayed to confirm or indicate error message while the program is run. This program has two kinds of “Message” dialogue boxes as below. 1) “Caution” message dialogue box Title Message Command button... -
Page 27: Message List
7.2 Message List “Message” dialogue box consists from “Title” , “Message” and “Command button” as shown in Pic. 30. Following is message list appears while this program is run. 1) “Caution” message list Name of Command Message Title Cause dialogue button Input Value is not correct. -
Page 28: Question Message List
2) Question message list Command Name Message Title Cause button Input Value is not correct Input check Input value is out of set range confirmation Input again? or letters were input. Confirm Stop data take in? Multi-channel Displayed when click stop ANEMOMASTER measurement stop button. -
Page 29: Data Link To Calculation Table Soft
8. Data Link to Calculation Table Soft This program create data file which can be taken in to calculation table soft at the same time with data saving of Measured data. Data file which can be taken in to calculation table soft File Parameter file *File name : ###_P.TXT... - Page 30 ② Select [ Text file ] from [ Kinds of files ]. Select [Text file] from [Kinds of files ] Select items according to contents on screen such as delimited of text file. Select [delimited] Click [Next ] Check comma Check tab Check text Confirm delimit of data...
- Page 31 Select “ General” from data format Preview data format Click finish ④ Text data will taken into work sheet.
