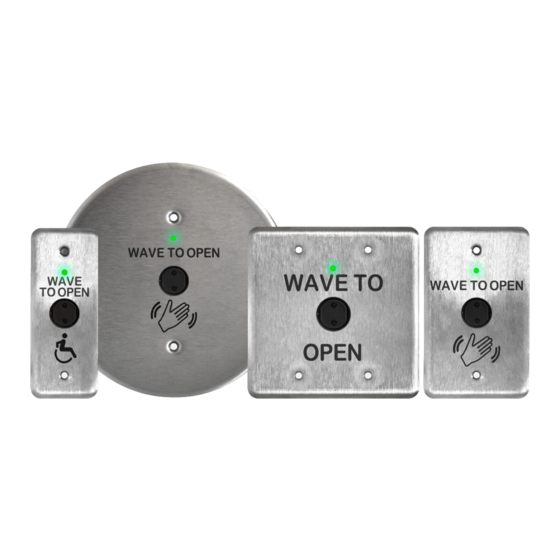

BEA MS51W Manual

Battery-powered, touchless activation with built-in, 900 mhz transmitter
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Visit website for available
languages of this document.
MS51W
BATTERY-POWERED, TOUCHLESS ACTIVATION
WITH BUILT-IN, 900 MHZ TRANSMITTER
EN
75.0068.01 MS51W 20230512
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS51W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEA MS51W

Summary of Contents for BEA MS51W

  • Page 1 Visit website for available languages of this document. MS51W BATTERY-POWERED, TOUCHLESS ACTIVATION WITH BUILT-IN, 900 MHZ TRANSMITTER 75.0068.01 MS51W 20230512 Page 1 of 8...
  • Page 2 IP rating IP65 FCC certification FCC: 2ABWS-10TD900PB IC: 4680A-10TD900PB Specifications are subject to change without prior notice. All values measured in specific conditions, using lithium batteries.. For best performance, BEA recommends using lithium batteries. Page 2 of 8 75.0068.01 MS51W 20230512...

  • Page 3: Assembly Diagram

    ‰ DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be performed by BEA, Inc. Unauthorized disassembly or repair: 1. May jeopardize personal safety and may expose one to the risk of electrical shock.
  • Page 4 To ensure system performance, PREPARE INSTALLATION SITE BEA recommends using only plastic electrical boxes. 1. For new installation, install the For retrofitting an existing installation, remove the appropriate mounting box or previous plate and transmitter. electrical box. When installing jamb version, cutout dimensions are ⁄...
  • Page 5 INSTALL MS51W ASSEMBLY 4. Install MS51W assembly on box. Observe the orientation of the assembly as well as each individual component. text upright LED hole flat portion on top toward wall 5. Secure with the provided screws (#6-32 flathead) and test functionality.

  • Page 6: Complete The Installation

    DELAY DELAY a. Press and release desired learn button. 1s 30s The red LED on the receiver will illuminate. b. Activate the MS51W twice. The blue LED on the receiver will Typically not used illuminate. Control ACT Control COM See 900 MHz Family User’s Guide Control / Transformer Power (75.5937) for more information.

  • Page 7: Troubleshooting

    MS51W does not detect Dead batteries Check battery life by placing your when waving in front of it hand in front of the MS51W. If there is no LED indication, replace batteries. Detection range is too short Check DIP 1 Position (see page 4) and ensure DIP 3 is in OFF position for indoor applications.

  • Page 8: Fcc/Ic Compliance

    BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose. BEA, Inc. strongly recommends that installation and service technicians be AAADM-certifi ed for pedestrian doors, IDA-certifi ed for doors/ gates, and factory-trained for the type of door/gate system.
