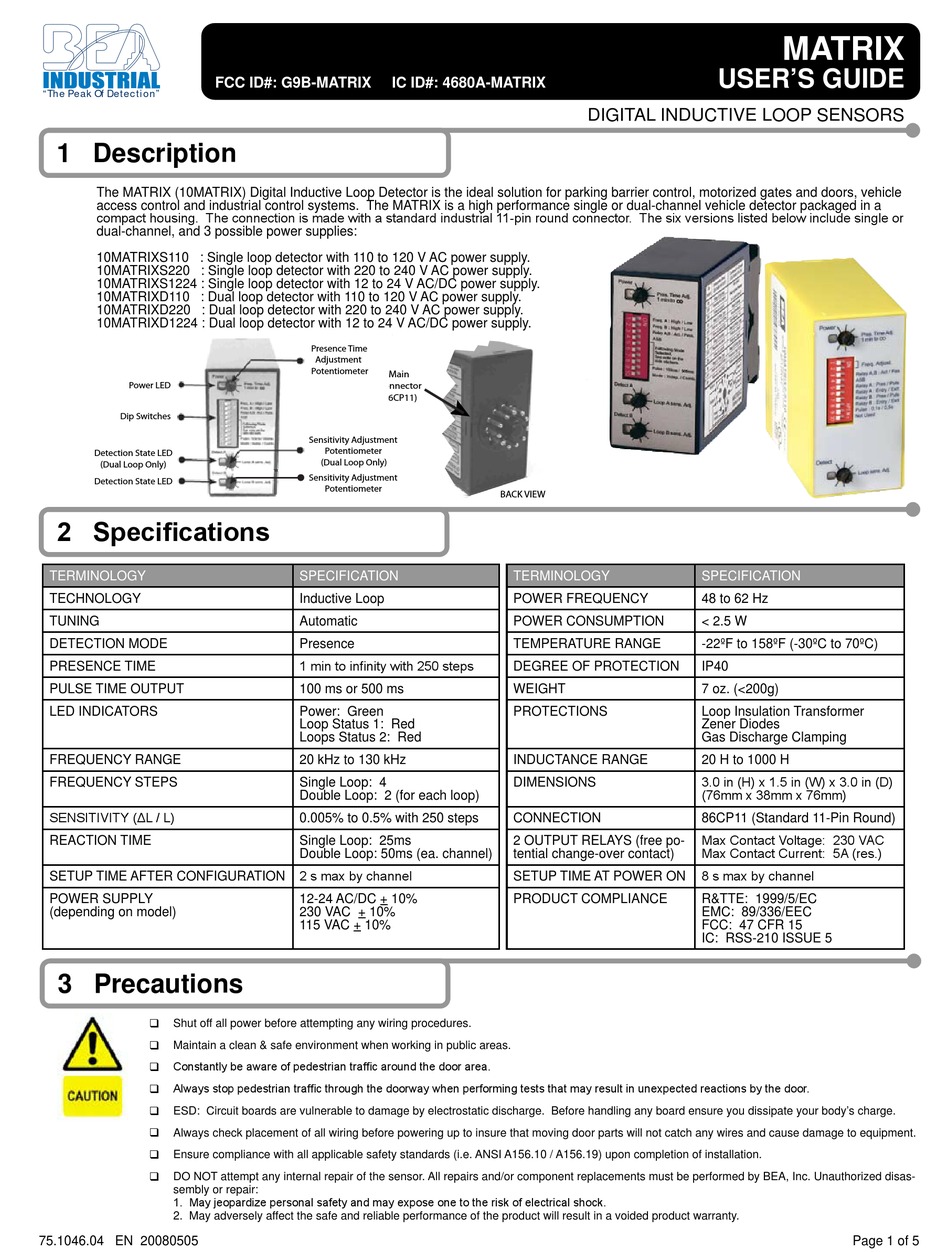

BEA 10MATRIX User Manual

FCC ID#: G9B-MATRIX
"The Peak Of Detection"
1 Description
The MATRIX (10MATRIX) Digital Inductive Loop Detector is the ideal solution for parking barrier control, motorized gates and doors, vehicle
access control and industrial control systems. The MATRIX is a high performance single or dual-channel vehicle detector packaged in a
compact housing. The connection is made with a standard industrial 11-pin round connector. The six versions listed below include single or
dual-channel, and 3 possible power supplies:
10MATRIXS110 : Single loop detector with 110 to 120 V AC power supply.
10MATRIXS220 : Single loop detector with 220 to 240 V AC power supply.
10MATRIXS1224 : Single loop detector with 12 to 24 V AC/DC power supply.
10MATRIXD110 : Dual loop detector with 110 to 120 V AC power supply.
10MATRIXD220 : Dual loop detector with 220 to 240 V AC power supply.
10MATRIXD1224 : Dual loop detector with 12 to 24 V AC/DC power supply.
Power LED
Dip Switches
Detection State LED
(Dual Loop Only)
Detection State LED

2 Specifications

TERMINOLOGY
TECHNOLOGY
TUNING
DETECTION MODE
PRESENCE TIME
PULSE TIME OUTPUT
LED INDICATORS
FREQUENCY RANGE
FREQUENCY STEPS
SENSITIVITY (ΔL / L)
REACTION TIME
SETUP TIME AFTER CONFIGURATION
POWER SUPPLY
(depending on model)
3 Precautions

Shut off all power before attempting any wiring procedures.

Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian traffic around the door area.

Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door.


ESD: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board ensure you dissipate your body's charge.

Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause damage to equipment.

Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / A156.19) upon completion of installation.

DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA, Inc. Unauthorized disas-
sembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.
75.1046.04 EN 20080505
IC ID#: 4680A-MATRIX
Presence Time
Adjustment
Potentiometer
Main
Connector
(86CP11)
Sensitivity Adjustment
Potentiometer
(Dual Loop Only)
Sensitivity Adjustment
Potentiometer
SPECIFICATION
Inductive Loop
Automatic
Presence
1 min to infinity with 250 steps
100 ms or 500 ms
Power: Green
Loop Status 1: Red
Loops Status 2: Red
20 kHz to 130 kHz
Single Loop: 4
Double Loop: 2 (for each loop)
0.005% to 0.5% with 250 steps
Single Loop: 25ms
Double Loop: 50ms (ea. channel)
2 s max by channel
12-24 AC/DC + 10%
230 VAC + 10%
115 VAC + 10%
DIGITAL INDUCTIVE LOOP SENSORS
BACK VIEW
TERMINOLOGY
POWER FREQUENCY
POWER CONSUMPTION
TEMPERATURE RANGE
DEGREE OF PROTECTION
WEIGHT
PROTECTIONS
INDUCTANCE RANGE
DIMENSIONS
CONNECTION
2 OUTPUT RELAYS (free po-
tential change-over contact)
SETUP TIME AT POWER ON
PRODUCT COMPLIANCE
MATRIX
USER'S GUIDE
SPECIFICATION
48 to 62 Hz
< 2.5 W
-22ºF to 158ºF (-30ºC to 70ºC)
IP40
7 oz. (<200g)
Loop Insulation Transformer
Zener Diodes
Gas Discharge Clamping
20 H to 1000 H
3.0 in (H) x 1.5 in (W) x 3.0 in (D)
(76mm x 38mm x 76mm)
86CP11 (Standard 11-Pin Round)
Max Contact Voltage: 230 VAC
Max Contact Current: 5A (res.)
8 s max by channel
R&TTE: 1999/5/EC
EMC: 89/336/EEC
FCC: 47 CFR 15
IC: RSS-210 ISSUE 5
Page 1 of 5
