BEA MS09 Manual

Ip65, touchless, activation sensor

Download this manual

Visit website for

available languages of

this document.

BEA, INC. INSTALLATION/SERVICE COMPLIANCE EXPECTATIONS

BEA, Inc., the sensor manufacturer, cannot be held responsible for incorrect installations or incorrect adjustments of the sensor/device;

therefore, BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose.

BEA, Inc. strongly recommends that installation and service technicians be AAADM-certified for pedestrian doors, IDA-certified for doors/

gates, and factory-trained for the type of door/gate system.

Installers and service personnel are responsible for executing a risk assessment following each installation/service performed, ensuring

that the sensor/device system performance is compliant with local, national, and international regulations, codes, and standards.

Once installation or service work is complete, a safety inspection of the door/gate shall be performed per the door/gate manufacturer's

recommendations and/or per AAADM/ANSI/DASMA guidelines (where applicable) for best industry practices. Safety inspections must

be performed during each service call – examples of these safety inspections can be found on an AAADM safety information label (e.g.

ANSI/DASMA 102, ANSI/DASMA 107, UL294, UL325, and International Building Code).

Verify that all appropriate industry signage, warning labels, and placards are in place.

75.5746.08 MS09 20240801

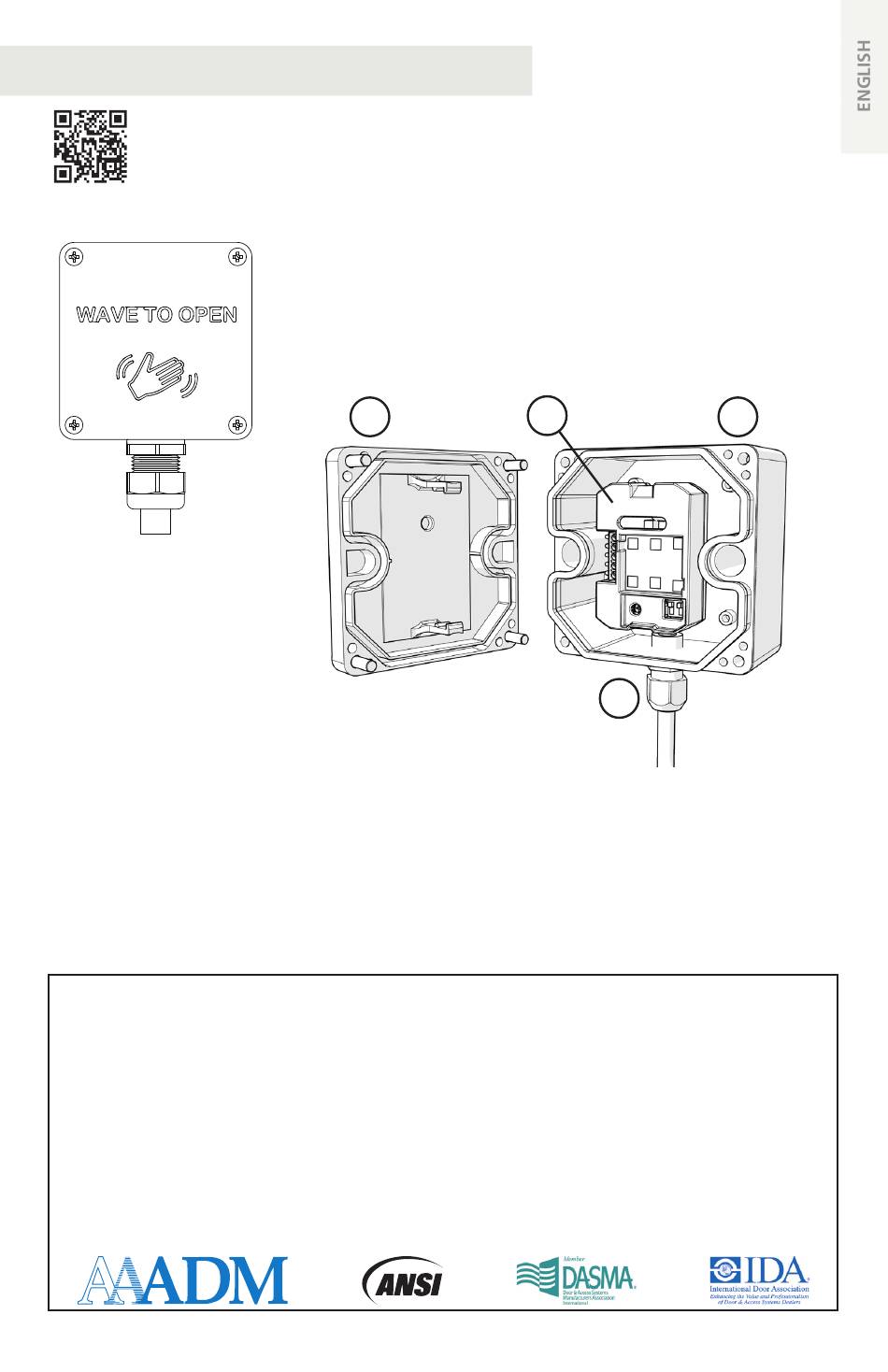

1. Faceplace

2. Microwave motion sensor

3. Connector

4. Housing

IP65, touchless, activation sensor

MS09

Page 1 of 4

Need help?

Do you have a question about the MS09 and is the answer not in the manual?

Page 1 4. Housing BEA, INC. INSTALLATION/SERVICE COMPLIANCE EXPECTATIONS BEA, Inc., the sensor manufacturer, cannot be held responsible for incorrect installations or incorrect adjustments of the sensor/device; therefore, BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose.
Page 2 Wire the cable to the door operator according to manufacturer specifications, then wire the cable to the MS09. POWER – red (12 – 24 VAC/VDC) POWER – black (12 – 24 VAC/VDC) COM (at door control) – white NO – green NC – yellow Page 2 of 4 75.5746.08 MS09 20240801...
Page 3 The relay will hold indefinitely until a second detection occurs. WIRELESS FUNCTIONALITY For the 900 MHz wireless programming instructions, please reference BEA User’s Guide 75.5937 which comes with the 900 MHz wireless receiver (sold separately).
Page 4 (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by BEA Incorporated could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
