Summary of Contents for Sandstrom SBTB14

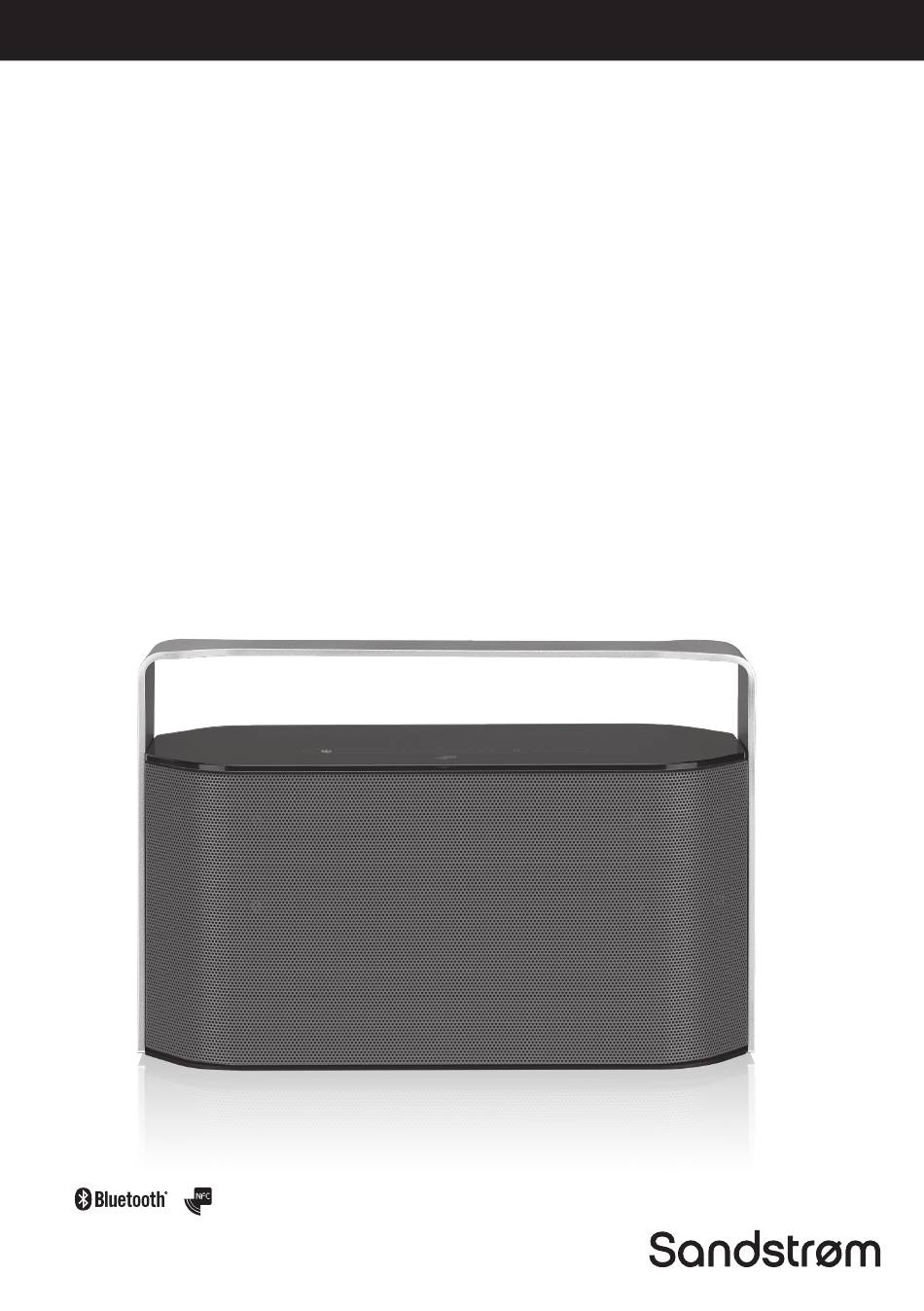

- Page 1 Instruction Manual Portable wireless speaker SBTB14...
-
Page 3: Table Of Contents
Contents Safety Warnings ........................4 Unpacking ..........................6 Product Overview .........................7 Front View ...............................7 Bottom View ..............................7 Remote Control ........................8 Battery Replacement for the Remote Control ..............9 Remote Control Operation Range ..................10 Connections ........................11 Using the AUX Connection ........................11 Connecting to the Mains Supply ......................12 Charging from the USB CHARGING Port ................... -
Page 4: Safety Warnings
Safety Warnings • Read all the instructions carefully before • A minimum distance of 5cm around the using the unit and keep them for future unit should be maintained to allow for reference. sufficient ventilation. • Retain the manual. If you pass the unit • Do not install or place this unit in a onto a third party make sure to include this bookcase, built-in cabinet or in another... - Page 5 Supervision • Children should be supervised to ensure that they do not play with the unit. • Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
-
Page 6: Unpacking
Thank you for purchasing your new Sandstrøm Portable wireless speaker. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Product Overview
Product Overview Front View 4. NFC area 1. Handle 5. Bluetooth Indicator 2. Standby Button Switch the unit between the On and 6. Battery Status Standby mode. Show the power status of the unit 3. Volume +/– Buttons 7. Speaker Press + to increase the volume. -
Page 8: Remote Control
Remote Control Button Switch the unit between the ON and STANDBY modes. Button (For Bluetooth mode) Skip backwards to the beginning of the track or to the previous track. Button Silence the unit or restore the sound. Button (For Bluetooth mode) Skip forwards to the next track. -
Page 9: Battery Replacement For The Remote Control
Battery Replacement for the Remote Control The remote control requires a CR2025, 3V Lithium battery. 1. Lift up the battery compartment cover with a thin head tool. 2. Remove the old battery with a thin head tool. 3. Replace with a new battery. Place the battery compartment cover back to the remote control. -
Page 10: Remote Control Operation Range
Remote Control Operation Range • The remote control sensor on the front unit is sensitive to the remote control’s commands up to a maximum of 6 metres away and within a maximum of 60° arc. • Please note that the operating distance may vary depending on the brightness of the room. -
Page 11: Connections
Connections Using the AUX Connection Use a 3.5mm to RCA stereo audio cable to connect the audio device’s audio output sockets to the unit’s AUX LINE IN Socket. Audio device To the AUX LINE IN Socket AUDIO OUT 3.5mm to RCA stereo audio cable White (not included) -
Page 12: Connecting To The Mains Supply
Connecting to the Mains Supply • This unit is designed to operate with an AC power supply or with the built-in battery. • Connecting the unit to any other power source may cause damage to the unit. Unwind the mains cable to its full length. Connect the mains cable to the mains adapter, and then connect the other end of the mains adapter to the POWER INPUT 13.5V 3.5A Socket of the unit. -
Page 13: General Operation
General Operation Powering ON/OFF When you first connect the unit to the mains socket and slide the POWER ON/OFF SWITCH to ON position, the unit will be in standby mode. • Press for about 3 seconds to switch the unit to ON mode. The will light up. •... -
Page 14: Bluetooth® Operation
2. Activate your Bluetooth device and select the search mode. 3. “SBTB14” will appear on your Bluetooth device list. 4. Select “SBTB14” and enter “0000” for the password if necessary. 5. The Bluetooth button will illuminate when connection successful. 6. To disconnect the Bluetooth function, disable the function from your Bluetooth device. -
Page 15: Aux Operation
AUX Operation 1. Disconnect the bluetooth connection. The unit will enter AUX mode automatically. 2. Connect the input to another audio device via an AUX cable with AUX LINE IN socket. 3. Press + on the unit or VOL+ on the remote control, or slide from – to + on the unit to increase the volume. -
Page 16: Hints And Tips
1000mA (1A). Otherwise, use the mobile device’s own charging adapter for charging. Bluetooth I cannot find “SBTB14” on • Ensure the Bluetooth function is activated on your my Bluetooth device Bluetooth device. -
Page 17: Specifications
Specifications SBTB14 Model Power Power Supply AC 100V–240V ~50/60 Hz Power Consumption 56 W ECO Standby Power < 0.5 W Consumption Output Power 5W x 2 +10W USB Power 5V/1A Feature USB POWER 5V/1A Charging Port x 1, AUX LINE IN Socket x 1... - Page 20 For advice on where to purchase accessories, please contact the store where you purchased your equipment. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, , HP2 7TG, UK Herts. IB-SBTB14-140324V1...
