Summary of Contents for Sandstrom SBTBR14
- Page 1 Instruction Manual Portable wireless speaker SBTBR14...
-
Page 3: Table Of Contents
Contents Safety Warnings ........................4 Unpacking ..........................6 Product Overview .........................7 Front View ...............................7 Bottom View ..............................7 Connections ..........................8 Using the AUX Connection ........................8 Connecting to the Mains Supply ......................9 Charging from the USB CHARGING Port ................... 10 General Operation ......................11 Powering ON/OFF ............................. 11 Adjusting the Volume .......................... -
Page 4: Safety Warnings
Safety Warnings • Read all the instructions carefully before • A minimum distance of 5cm around the using the unit and keep them for future unit should be maintained to allow for reference. sufficient ventilation. • Retain the manual. If you pass the unit •... - Page 5 Supervision • Children should be supervised to ensure that they do not play with the unit. • Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
-
Page 6: Unpacking
Thank you for purchasing your new Sandstrøm Portable wireless speaker. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it off ers. You will also fi nd some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Product Overview

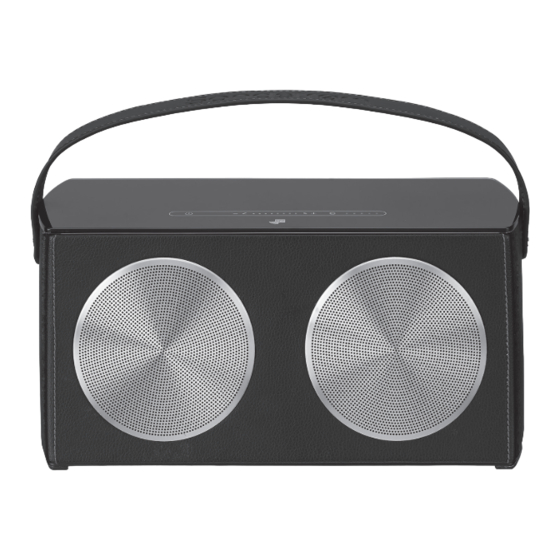

Product Overview Front View 4. NFC area 1. Leather Handle 2. Standby Button 5. Bluetooth Indicator Switch the unit between the On and 6. Battery Status Standby mode. Show the power status of the unit 3. Volume +/– Button 7. Speakers Press + to increase the volume. -
Page 8: Connections
Connections Using the AUX Connection Use a 3.5mm to RCA stereo audio cable to connect the audio device’s audio output sockets to the unit’s AUX LINE IN Socket. Audio device To the AUX LINE IN Socket AUDIO OUT 3.5mm to RCA stereo audio cable White (not included) -
Page 9: Connecting To The Mains Supply
Connecting to the Mains Supply • This unit is designed to operate with an AC power supply or with the built-in battery. • Connecting the unit to any other power source may cause damage to the unit. Unwind the mains cable to its full length. Connect the mains cable to the mains adapter, and then connect the other end of the mains adapter to the POWER INPUT 13.5V 3.5A Socket of the unit. -
Page 10: Charging From The Usb Charging Port
Charging from the USB CHARGING Port The USB FOR CHARGING ONLY 5V 1A Charging Port is designed only for charging mobile devices (e.g. MP3 player, mobile phone, etc). It supplies 5V DC at a charging current of up to 1000mA (1A). Use a USB cable (not included) to connect mobile device to the USB FOR CHARGING ONLY 1A Charging Port of the unit and the mobile device will start charging. -
Page 11: General Operation
2. Activate your Bluetooth device and select the search mode. 3. “SBTBR14” will appear on your Bluetooth device list. 4. Select “SBTBR14” and enter “0000” for the password if necessary. 5. The Bluetooth button will illuminate when connection successful. 6. To disconnect the Bluetooth function, disable the function from your Bluetooth device. -
Page 12: Nfc Operation
NFC Operation NFC is a one touch way of pairing your NFC device via Bluetooth to your speaker. 1. Activate NFC on your mobile device. 2. Place the NFC sensor area on the device close to the unit’s NFC sensor area (it will work best within 10 mm) to connect your device to the unit. -
Page 13: Maintenance
(1000mA or 1A). Otherwise, use the mobile device’s own charging adapter for charging. Bluetooth I cannot fi nd “SBTBR14” • Ensure the Bluetooth function is activated on your on my Bluetooth device Bluetooth device. -
Page 14: Specifications
Specifications SBTBR14 Model Power Power Supply AC 100V–240 V ~50/60 Hz Power Consumption 56 W ECO Standby Power < 0.5 W Consumption Output Power 10 W x 2 USB Output 1000mA Feature USB FOR CHARGING ONLY 5V 1A Charging Port x 1, AUX... - Page 16 For advice on where to purchase accessories, please contact the store where you purchased your equipment. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, , HP2 7TG, UK Herts. IB-SBTBR14-140417V1...
