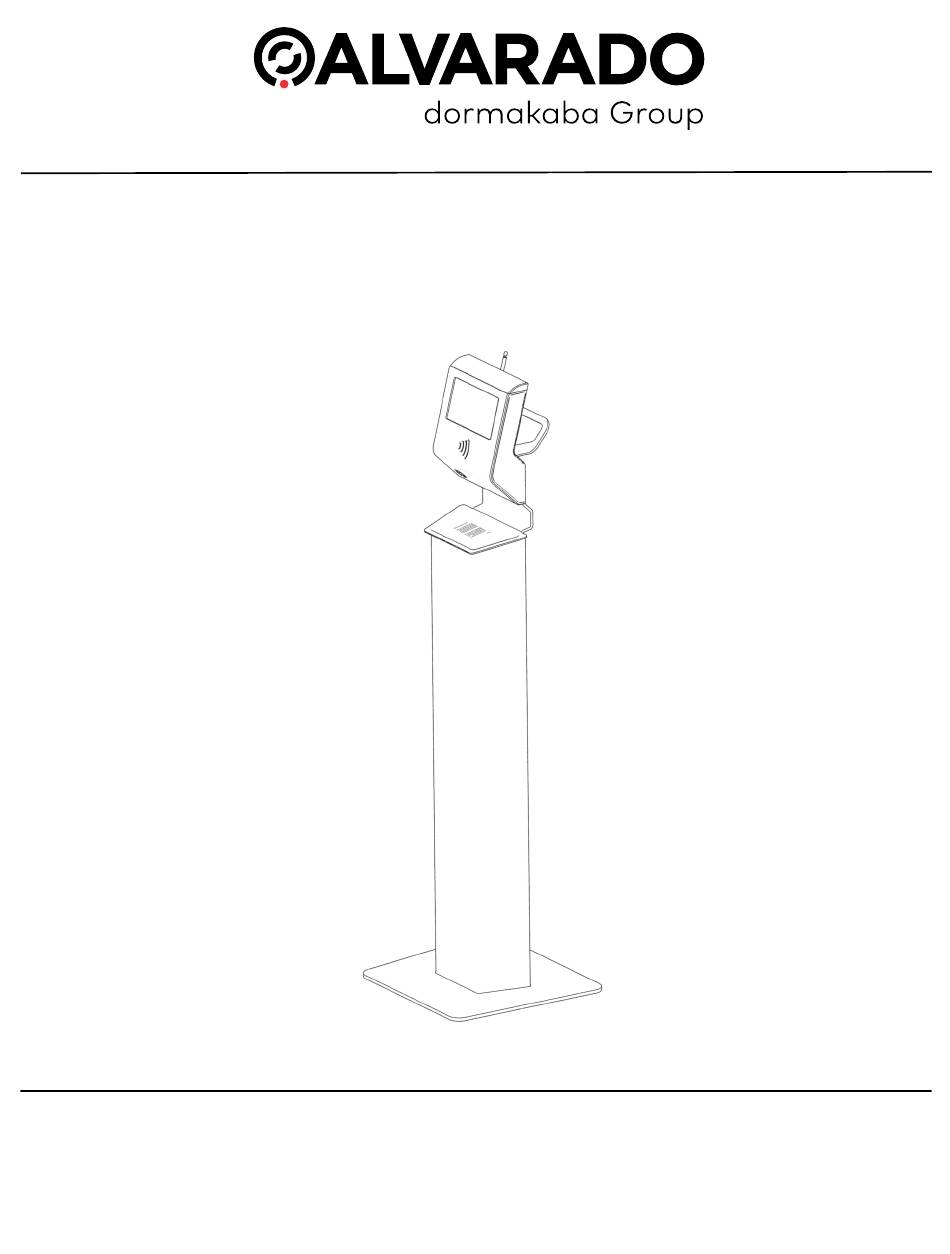

- Page 1 UltraQ Pedestal Guide PUD4599R2-0 Version 1.0 Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com PUD4599R2-0...
-
Page 2: Table Of Contents
UltraQ Pedestals Guide Version 1.0 Contents Preface..................................3 Document Overview..............................3 Support................................... 3 Assembling the Pedestal............................4 Items Required................................ 4 Procedure................................5 Basic Functionality Test.............................. 8 Battery Operations..............................9 Items Required................................ 9 Checking Battery Charge Level. -
Page 3: Preface
UltraQ Pedestals Guide Version 1.0 Preface Document Overview This document describes how to set up a battery-powered portable Alvarado UltraQ pedestal for first-time use. Support Contact Alvarado’s Entertainment Support department for any questions or comments you have about this guide or the processes it describes. -
Page 4: Assembling The Pedestal
UltraQ Pedestals Guide Version 1.0 Assembling the Pedestal The pedestals are shipped in three pieces: the pedestal base, the pedestal post, and the UltraQ head. Follow the directions below to assemble the pedestal. Items Required • Size 5/32” hex key •... -
Page 5: Procedure
3. Use the 7/16” wrench with the nuts and flat washers to secure the pedestal post to the baseplate. 4. Remove the UltraQ head and mounting hardware from the box. 5. Use the 5/32” hex key with the hex screws and split lock washers to secure the UltraQ head to the pedestal post. - Page 6 UltraQ Pedestals Guide Version 1.0 6. Connect the Neutrik connector to the back of the UltraQ head. Page 6 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 PUD4599R2-0...
- Page 7 UltraQ Pedestals Guide Version 1.0 7. Verify the power cable plugging into the bottom of the battery is securely connected. 8. Verify the battery power switch (located under the battery) is set to on. 9. Remove the key from the battery.
-
Page 8: Basic Functionality Test
UltraQ Pedestals Guide Version 1.0 Basic Functionality Test After setting up the pedestal, press the recessed power button and verify the UltraQ powers on. If it does not power on, check the items listed below. Recessed power button • Verify the power cable is plugged into the back of the UltraQ head. -
Page 9: Battery Operations
UltraQ Pedestals Guide Version 1.0 Battery Operations Items Required • Battery key • Replacement battery Checking Battery Charge Level Press the gray charge level display button on the battery to display the current charge level of the battery. A new, fully charged battery should be able to allow continuous pedestal operation for up to 18 hours. -
Page 10: Charging The Battery
UltraQ Pedestals Guide Version 1.0 Charging the Battery The charger is in the power supply box. It should take about three hours to fully charge a new battery. 1. Plug the charger into power. 2. Connect the socket to the battery’s charging port. -
Page 11: Removing/Installing The Battery
UltraQ Pedestals Guide Version 1.0 Removing/Installing the Battery To remove the battery: 1. Press the button on the connector to separate it. Each half of the connector is keyed, so it will only reattach one way when you replace the battery. - Page 12 UltraQ Pedestals Guide Version 1.0 To replace the battery: 1. Place the bottom of the battery in the frame. The cutout section of the top of the battery should be facing the pedestal. 2. Tilt the top of the battery toward the pedestal until the locking latch clicks.
-
Page 13: Using The Removable Dolly
2. Slide the dolly’s guide tab into the hole into the dolly hole on the backplate. 3. Tilt the dolly downward and slide it forward until the catch is flush with the backplate. 4. Use the handle to lean the UltraQ pedestal onto the dolly’s wheels and push/pull it to the desired location. Handle Page 13 For Assistance: support@alvaradomfg.com +1 (909) 591-8431... -
Page 14: Removing The Dolly
UltraQ Pedestals Guide Version 1.0 Removing the Dolly 1. Lean the UltraQ pedestal forward so the dolly’s wheels are off the ground. 2. Pull the dolly away until it is no longer snug against the baseplate. 3. Tilt the dolly up and remove it. -
Page 15: Revision History
UltraQ Pedestals Guide Version 1.0 Revision History Revision Date Author Revision History/Description 1/12/2022 D Bohannon Original Document Page 15 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 PUD4599R2-0... - Page 16 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com © 2022 Alvarado Manufacturing Company, Inc. This work may not be reproduced, published or redistributed, in whole or in part, without the express prior written permission of Alvarado.
