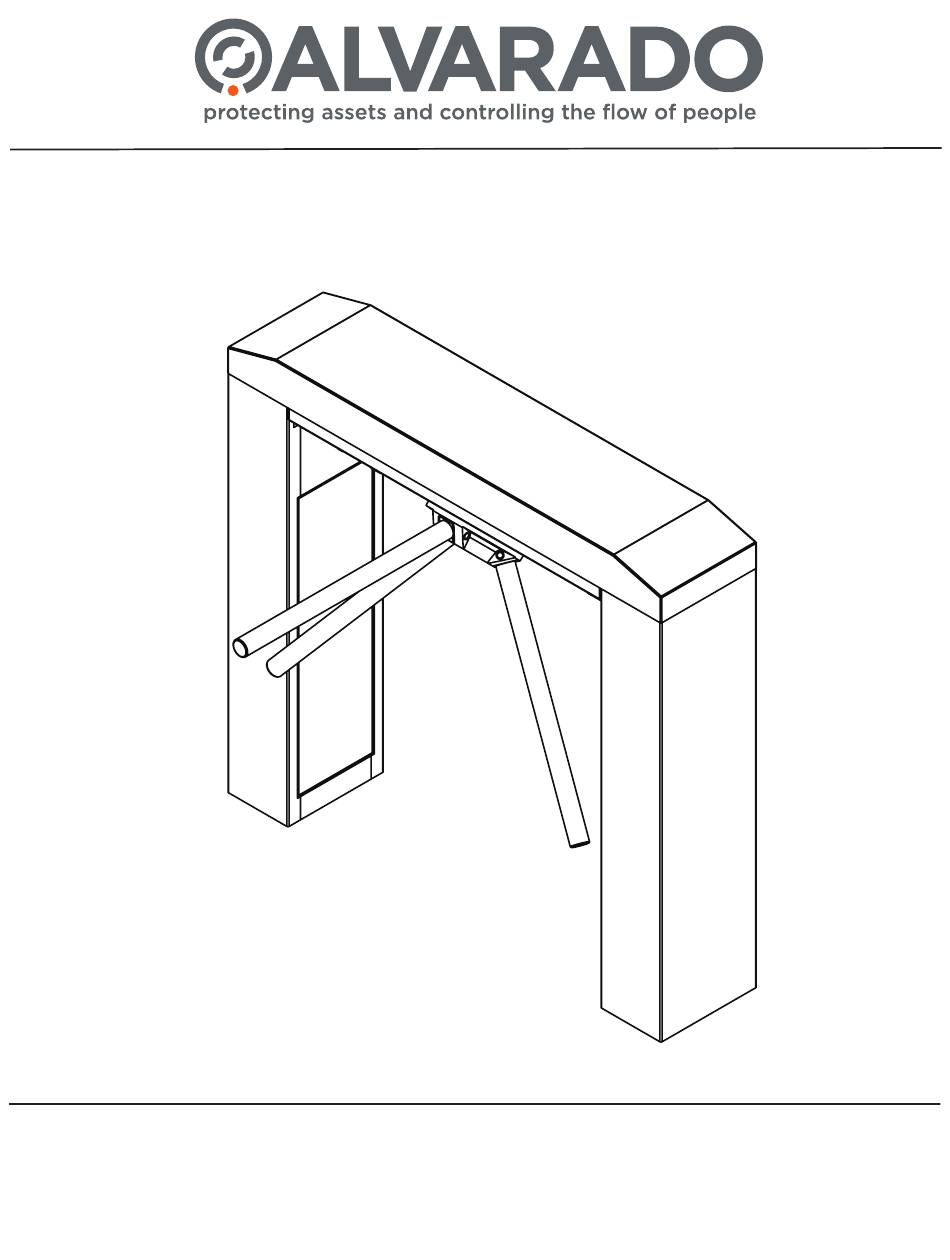

EDM
Motorized Waist High Turnstile
Installation and Maintenance Instructions
Alvarado Manufacturing Company, Inc.
12660 Colony Street, Chino, CA 91710
Telephone: +1 (909) 591-8431
Fax: +1 (909) 628-1403
support@alvaradomfg.com
www.alvaradomfg.com
PUD4146R1-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alvarado EDM

  • Page 1 Motorized Waist High Turnstile Installation and Maintenance Instructions Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Telephone: +1 (909) 591-8431 Fax: +1 (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com PUD4146R1-0...
  • Page 2: Table Of Contents

    Connecting AC Power to the Portable Turnstile (AC-Powered Option Only)............28 Portable Base - Plan, Elevation and Footprint Drawing - EDM-Square................ 29 Appendix - C - Plan, Elevation and Footprint Drawing - EDM Bullnose................ 30 Portable Base - Plan, Elevation and Footprint Drawing - EDM-Bullnose..............31 Revision History.
  • Page 3: Safety Icons

    NOTE Please read these instructions. For further assistance, please contact Alvarado's Technical Support Department at +1(909) 591 - 8431 or visit www.alvaradomfg.com and select the "Support" tab. Support hours are Monday - Friday 6am - 4pm Pacific Time (excluding USA holidays).
  • Page 4: Tools Required

    Base Turnstile on page 26. Uncrating The EDM has been packed for shipping to prevent damage to the unit. Two or more installers are required to unload the EDM at the installation site. Once the turnstile cabinet has been placed in the installation location, carefully remove the protective packing material from the sides of the cabinet.
  • Page 5: Introduction

    EDM Installation and Maintenance Instructions Introduction This manual covers the physical installation process for the EDM Motorized Waist High Turnstile. At the end of this process, you will be able to power up the turnstile and perform a functions check to validate operation.
  • Page 6: Space & Conduit Requirements

    EDM Installation and Maintenance Instructions Space & Conduit Requirements • There must be 2" (50.8mm) of clearance between the turnstile arm and the adjacent turnstile or barrier [Fig. 1]. • Stub up conduit in accordance with local electrical codes [Fig. 2].
  • Page 7 EDM Installation and Maintenance Instructions Space & Conduit Requirements (Cont.) NOTE EDM-Square cabinet shown. Refer to Appendix C on page 30 for the EDM-Bullnose cabinet. Fig. 3a Fig. 3b Fig. 3c PUD4146R1-0 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 Page 7...
  • Page 8: Electrical Specifications

    EDM Installation and Maintenance Instructions Electrical Specifications UL Rated Power Supply 110-120 VAC, 60 Hz or 220-240 VAC, 50 Hz (optional) Power Requirements Maximum power consumption is 60W per lane with all options installed. Operational Voltage Primary power is stepped down and rectified for low voltage 24VDC, 12VDC, and 5VDC operation.
  • Page 9: Anchoring The Turnstile

    EDM Installation and Maintenance Instructions Anchoring the Turnstile Fig. 4 1. Using a turnstile leg key, open the turnstile leg access panels [Fig. 4]. 2. Using a 9/16" socket wrench, remove the four (4) bolts that secure the temporary wood plate to the turnstile.
  • Page 10: Primary Power Wiring Instructions

    EDM Installation and Maintenance Instructions Primary Power Wiring Instructions The following instructions are for fixed turnstile installations only. If you are installing NOTE a portable AC-powered or battery-powered unit, please refer to Appendix B - Portable Base Turnstile instructions on page 26.
  • Page 11: Control Board Description

    To / From Access Control System Inputs - J4 Terminal Block Signal inputs from access control systems are wired into the EDM’s I/O input terminal block. There are two types of input signals, momentary dry contacts (MDC) and sustained dry contacts (SDC).
  • Page 12: Identifying Rotation Direction

    EDM Installation and Maintenance Instructions Control Board Description (Cont.) J4 Terminal Block Input Contacts J5 Terminal Block Output Contacts avior Pin # Function Contact Function & Behavior Pin # Function Contact Function & Behavior Pin # Name Description Type Description...
  • Page 13: Wiring The Control Board

    EDM Installation and Maintenance Instructions Wiring the Control Board The EDM provides bidirectional access control in conjunction with the facility access control system. For bidirectional applications, the CW and CCW directions can be individually configured to different passage modes to suit facility requirements. For example, a turnstile can be configured for Controlled Passage in the CW direction, and Free Passage mode in the CCW direction.
  • Page 14 EDM Installation and Maintenance Instructions Setting Free Passage Mode (I/O Input - J4 Terminal Block) Counterclockwise Direction (CCW) EXTPAS 1. Locate the EXTPAS and GND terminals on EXTREJ the I/O J4 terminal block. EXTACC CCW Direction 2. Using a wire jumper, connect the EXTPAS EMROVR and GND terminals.
  • Page 15: Post-Installation Inspection

    EDM Installation and Maintenance Instructions Post-Installation Inspection NOTE Perform this post-installation inspection BEFORE powering on the turnstile for the first time. 1. Anchoring (fixed installations only): Verify the anchor bolts are tensioned to 20 ft-lbs. Tighten if necessary. 2. Dust, Dirt, & Debris: While the unit is powered down, open the lid to reveal the interior electronics. Blow any dirt, dust, and small debris out of the turnstile with low-pressure compressed air such as Dust-Off.
  • Page 16: Testing Turnstile Functionality

    EDM Installation and Maintenance Instructions Testing Turnstile Functionality Perform the following turnstile functionality tests to validate basic turnstile operation. The following is assumed (Controlled Passage mode tests only): • The access control system is operational and all access control wiring to the turnstile is connected.
  • Page 17 EDM Installation and Maintenance Instructions Testing Turnstile Functionality (Cont.) Test Turnstile Response Procedure EMROVR/GND • Arms drop allowing passage Drop Arm in emergency situations. • Place a jumper across Pins 4 & 5, • Performs boot up sequence EMROVR and GND, respectively.
  • Page 18: Test Key Override Operation

    EDM Installation and Maintenance Instructions Test Key Override Operation Key Override switches are provided to manually place the turnstile into Controlled Passage or Free Passage. There is one key override switch for each rotation direction. The key switches are located on the underside of the turnstile adjacent to the head and arms [Fig.
  • Page 19: Test The Local Counter (Optional)

    EDM Installation and Maintenance Instructions Test the Local Counter (Optional) The battery-powered LCD counter is used to count turnstile rotations. Each rotation of the turnstile arm generates a count. One counter is required per rotation direction. 1. Place the turnstile in Free Passage Mode using the Key Override.
  • Page 20: Remote 3-Way Switch (Optional)

    User Status Lights Open / Close Lights The EDM can also be equipped with Open / Close lights. The lights are installed on the upper "leg" of the cabinet and perform in the following manner [Fig. 14]: • Green - Illuminates when the turnstile is open for use.
  • Page 21: Edm Utility

    EDM Utility The EDM ships with the EDM Utility which allows adjustment of settings and tests turnstile functionality. The EDM Utility is on a USB drive included with the turnstile. Copy the file from the USB drive to your laptop. There is no installation required.
  • Page 22 EDM Installation and Maintenance Instructions EDM Utility (Cont.) Settings Description Item # Sets the communication port necessary for the EDM Utility to Com Port interface with the turnstile. Access CW Activates the turnstile in the Clockwise direction. Access CCW Activates the turnstile in the Counter-Clockwise direction.
  • Page 23: Maintenance

    Maintenance Preventative maintenance should be performed periodically after installation to ensure the product maintains its visual exterior and optimal performance. To maintain the EDM, follow the instructions below as needed. Cleaning the Cabinet Exterior Regular cleaning is the best way to maintain any stainless steel or finished equipment and prevent corrosion.
  • Page 24: Troubleshooting

    EDM Installation and Maintenance Instructions Troubleshooting Symptoms Possible Cause Possible Solution • Verify the power is ON at the circuit breaker. • Inspect fuse on primary power terminal block. • No primary power to the turnstile. • Turnstile does not •...
  • Page 25: Appendix A - Setting The Home Position

    EDM Installation and Maintenance Instructions Appendix A - Setting the Home Position NOTE Power must be on. Fig. 16a 1. Identify the control board attached to the inside surface of the lid [Fig. 16A]. The (D2) LED will be blinking indicating normaloperation mode.
  • Page 26: Appendix B - Portable Base Guide Rail Installation

    EDM Installation and Maintenance Instructions Appendix B - Portable Base Guide Rail Installation These supplemental instructions cover installation steps specific to portable base models only. When the installation is complete, proceed to the Functions Check starting on page 16. Portable Base Plate Illustrated Parts List...
  • Page 27: Installing Neutrik Connector To Ac Cord

    EDM Installation and Maintenance Instructions Installing Neutrik Connector to AC Cord NOTE Portable Base Turnstile units do not ship with power cables. Instead, each turnstile ships from the factory with a disassembled Neutrik connector. Use the connector to create power cables per your facility’s requirements and specifications.
  • Page 28: Connecting Ac Power To The Portable Turnstile (Ac-Powered Option Only)

    EDM Installation and Maintenance Instructions Installing Neutrik Connector to AC Cord (cont.) Fasten bushing by means of a fork wrench 7/8” W rench size 7/8" (SW22) (SW 22), min. Torque 2.5 Nm (1.8 lb-ft). Torque Value 2.5 Nm Finished power connector.
  • Page 29: Portable Base - Plan, Elevation And Footprint Drawing - Edm-Square

    EDM Installation and Maintenance Instructions Portable Base - Plan, Elevation and Footprint Drawing - EDM-Square Fig. B6 Fig. B7 Fig. B8 PUD4146R1-0 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 Page 29...
  • Page 30: Appendix - C - Plan, Elevation And Footprint Drawing - Edm Bullnose

    EDM Installation and Maintenance Instructions Appendix - C - Plan, Elevation and Footprint Drawing - EDM Bullnose Fig. C1 Fig. C2 Fig. C3 Page 30 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 PUD4146R1-0...
  • Page 31: Portable Base - Plan, Elevation And Footprint Drawing - Edm-Bullnose

    EDM Installation and Maintenance Instructions Portable Base - Plan, Elevation and Footprint Drawing - EDM-Bullnose Fig. C4 Fig. C5 Fig. C6 PUD4146R1-0 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 Page 31...
  • Page 32: Revision History

    EDM Installation and Maintenance Instructions Revision History Revision Date Author Description 10/25/17 C.Maynez Original Document Page 32 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 PUD4146R1-0...
  • Page 33 Page left intentionally blank. PUD4146R1-0 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 Page 33...
  • Page 34 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com © 2017 Alvarado Manufacturing Company, Inc. This work may not be reproduced, published or redistributed, in whole or in part, without the express prior written permission of Alvarado.
