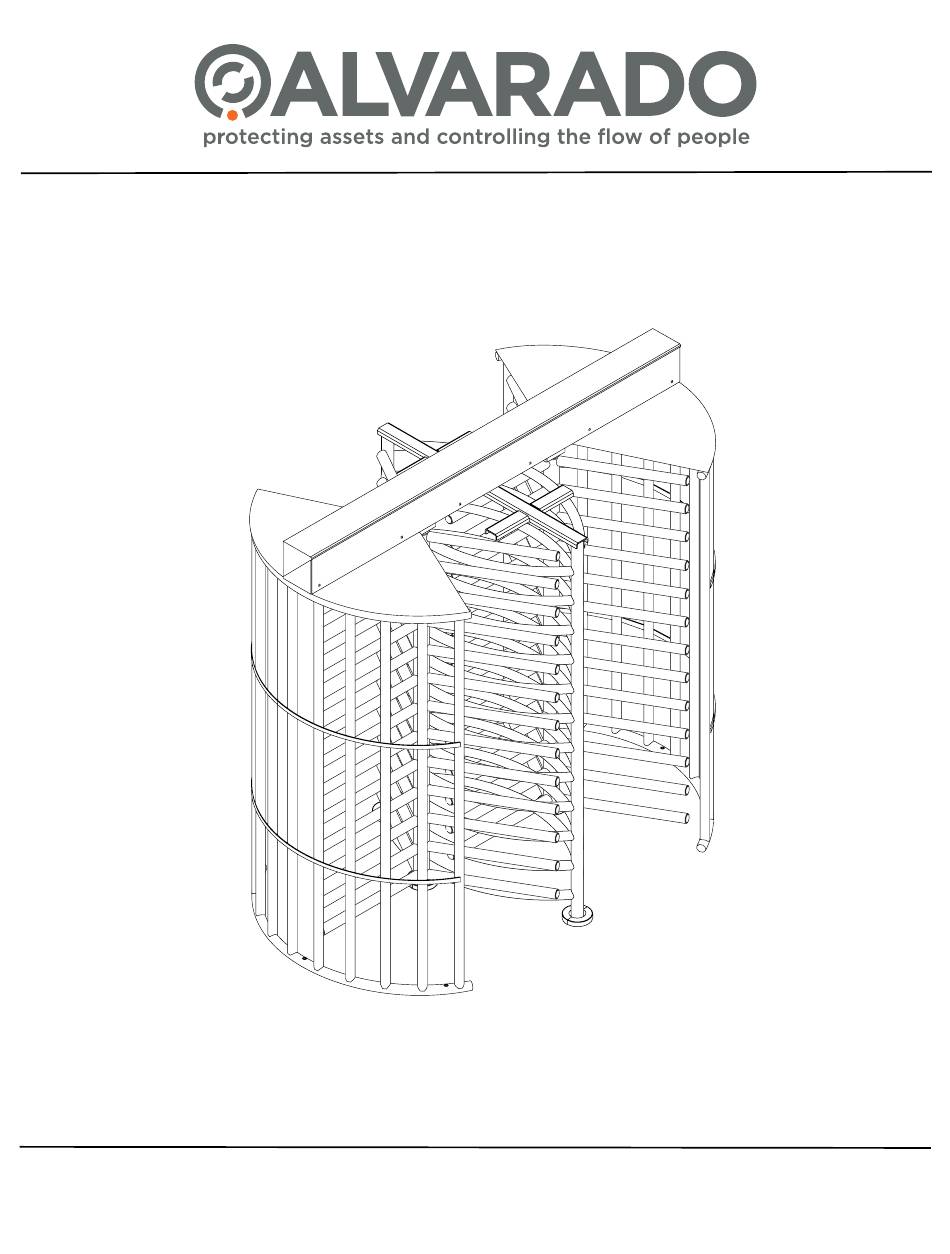

TANDEM FULL HEIGHT MAXIMUM SECURITY TURNSTILE
Installation and Operation Instructions
Alvarado Manufacturing Company, Inc.
12660 Colony Street, Chino, CA 91710
Toll Free: (800) 423-4143
Fax: (909) 628-1403
information@alvaradomfg.com
www.alvaradomfg.com
PUD3227R1-7
