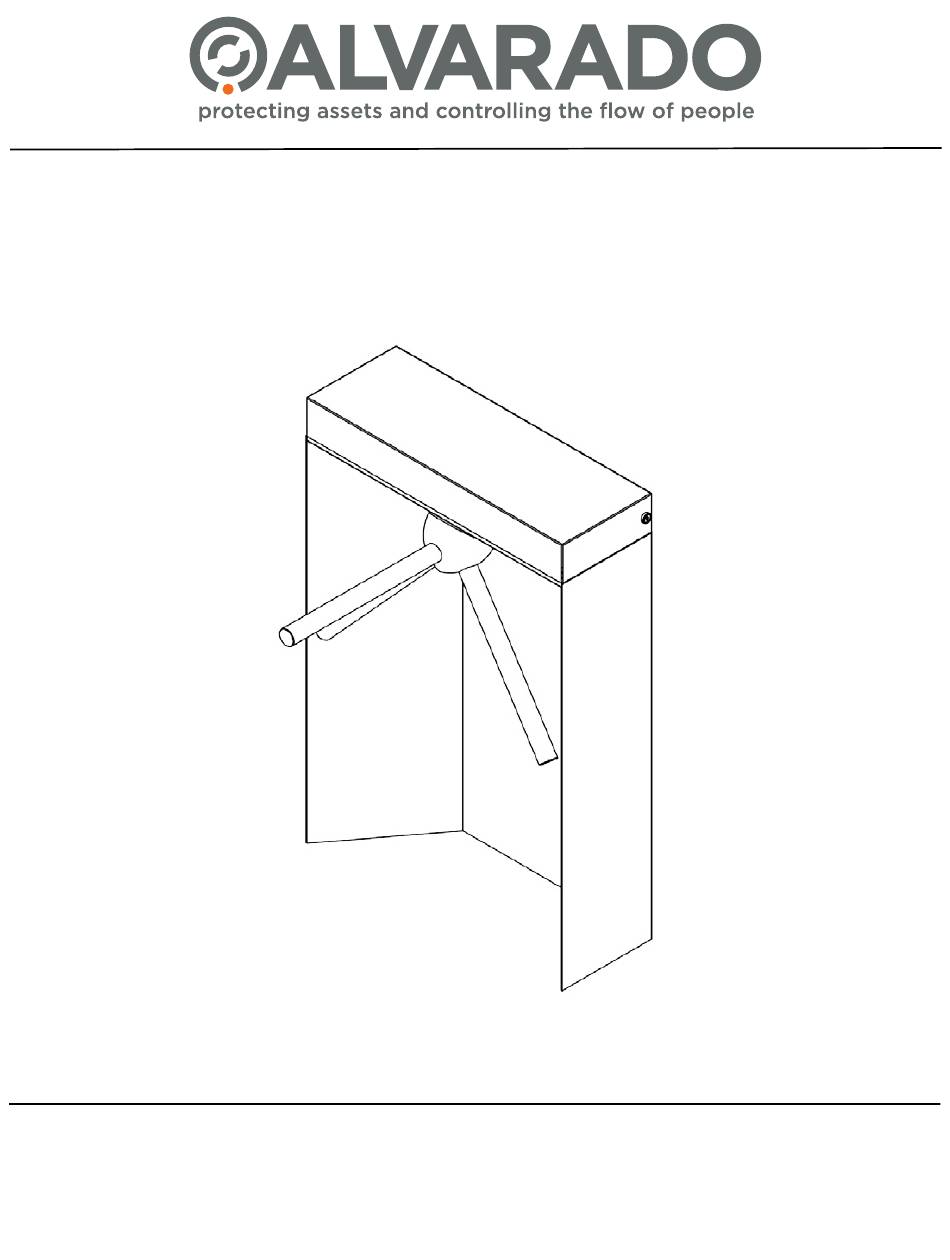

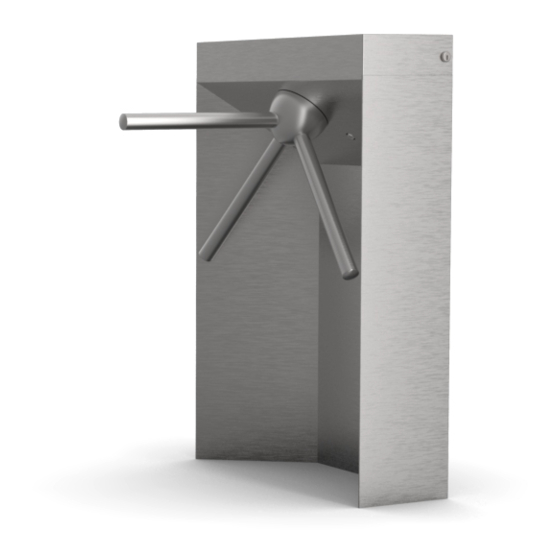

- Page 1 WAIST HIGH SECURITY TURNSTILE (APPLICABLE TO ALL EDC MODELS) Installation and Maintenance Instructions Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com PUD1535R5-5...
-
Page 2: Table Of Contents
This symbol is used in this manual to designate useful information for the installer and operator. NOTE Please read these instructions. For questions, please contact Alvarado at +1 (909) 591-8431, Monday – Friday 7:00 am to 4:30 pm PST. Please read this manual completely before installing or operating the product. Page 2 For assistance: support@alvaradomfg.com +1 (909) 591-8431... -
Page 3: Safety Precautions
• Do not modify or alter the turnstile. • Use only Alvarado parts when repairing or maintaining the turnstile. • Ensure that all users are properly trained. •... -
Page 4: Parts List
This product is shipped with the required installation hardware. Make sure that no parts are missing and/or damaged before beginning installation. If parts are missing and/or damaged, please stop the installation and contact Alvarado. If additional copies of the installation instructions are required, please visit www.alvaradomfg.com. -
Page 5: Before You Begin
The EDC product line of waist high security turnstiles include manual and electric models with varying cabinet sizes and styles. This manual focuses on the EDC (27" length) model for the basis of instruction; however, most steps are identical across models. Any differences will be called out as applicable. Instructions apply to the following models: EDC (27"... -
Page 6: Installation Instructions
EDC Installation and Maintenance Instructions Installation Instructions Anchoring the Turnstile Fig. 2 Transformer Screws 1. Place the turnstile in the desired location. 2. Using a lid key, unlock and open the turnstile lid. There is a lid lock on each side of the turnstile. -
Page 7: Electrical Wiring Instructions
EDC Installation and Maintenance Instructions Anchoring the Turnstile (cont.) 12. Insert a threaded rod & cup assembly down a post anchor tube and into the anchor. Repeat with the other threaded rod & cup assembly and post anchor tube. 13. Check that the turnstile is level and does not rock. If the turnstile rocks, shim as necessary using washer shims. -
Page 8: 10-7821 Turnstile Control Board Layout
EDC Installation and Maintenance Instructions 10-7821 Turnstile Control Board Layout NOTE Refer to Appendix C for 10-7822 turnstile control board used in conjunction with the drop-arm option. Fig. 7 10-7821 Turnstile Control Board CCW CW X 5 R G Y... -
Page 9: 10-7821 Terminal Descriptions
CCW Direction be used to output a “count” signal to an external system such as Count Alvarado’s GateWatch or to provide feedback to the access control system that a turnstile rotation has taken place. Confirmation signal upon turnstile rotation - Common dry contact connection for CNT count signal output. - Page 10 - CW Direction can be used to output a “count” signal to an external system such as Count Alvarado’s GateWatch or to provide feedback to the access control system that a turnstile rotation has taken place. Confirmation signal upon turnstile Common dry-contact signal for CNT count signal output.
-
Page 11: Operations And Functionality
EDC Installation and Maintenance Instructions Operations and Functionality Passage Modes Electric turnstiles may be configured for any combination of the following passage modes: Controlled Passage - The arms are locked in the home position. Upon receipt of an authorization signal from an access control system, the turnstile unlocks in the appropriate direction allowing a single passage. -
Page 12: Local Battery Counter (Optional)
EDC Installation and Maintenance Instructions Local Battery Counter (Optional) A lithium battery-powered LCD counter can be installed on electric and non-electric models. Each rotation of the turnstile arm generates a count. One counter is required per direction. Counters can be ordered as reset or non-reset versions. -
Page 13: Cleaning And Maintenance
Cleaning and Maintenance Maintenance Schedule In order to maximize the longevity of the turnstile, Alvarado recommends adhering to the following maintenance schedule. The maintenance schedule is based on what we would consider a typical installation, which is in a temperate climate with usage averaging 7500 activations per week. -
Page 14: Exterior Maintenance
“passive.” Passive means that the surface is resistant to corrosive reactions (such as rust). To chemically passivate stainless steel, Alvarado recommends the use of a citric acid product called CitriSurf2310, available from Stellar Solutions at www.citrisurf.com. This product is especially formulated to clean and passivate stainless steel and can be used in the field. -
Page 15: Interior Maintenance
EDC Installation and Maintenance Instructions Cleaning and Maintenance (cont.) Interior Maintenance 5) Verify threaded rods are torqued to 80 ft-lbs. Using a torque wrench (ft-lbs.) and 15/16” socket, verify the threaded rods are torqued to 80 ft-lbs. NOTE This procedure requires the junction box / transformer be removed in order to access the left- hand threaded rod. -
Page 16: Lubricate Turnstile Pivot Points, Roller Bearings, And
Interior Maintenance (cont.) 10) Lubricate turnstile pivot points, roller bearings, and solenoid plungers. Alvarado strongly recommends DuPont Teflon Non-Stick Dry-Film Lubricant (Liquid Form) be used when lubricating the turnstile. This lubricant does not leave an oily film and creates a dirt-resistant coating. -
Page 17: Apply Deoxit To All Turnstile Control Board Terminals And
EDC Installation and Maintenance Instructions Interior Maintenance (cont.) 11) Apply DeoxIT to all turnstile control board terminals and wire harnesses. DeoxIT is a contact cleaner / lubricant that is quite beneficial for power and data connections. Yearly applications of this product is strongly recommended in locations with harsh weather or high levels of air-borne contaminants. -
Page 18: Troubleshooting
Replace the springs. missing, broken or worn out. NOTE: The springs installed in the EDC turnstile are specifically designed for use in this application. Use only springs purchased from Alvarado. Turnstile springs are not interchangeable and should only be used in their designated locations. - Page 19 Replace the springs. See Spring Kit in Appendix B on Page missing, broken or worn out. NOTE: The springs installed in the EDC turnstile are specifically designed for use in this application. Use only springs purchased from Alvarado. Turnstile springs are not interchangeable and should only be used in their designated locations.
- Page 20 EDC Installation and Maintenance Instructions Troubleshooting (cont.) Symptom Possible Cause Solution The turnstile The turnstile is not properly Clean and lubricate the roller bearings as described in the head does lubricated. Lubrication section on Page 16. not turn smoothly. If necessary adjust the hydraulic closure as described on Page 15.
-
Page 21: Appendix A - Plan, Elevation And Footprint Drawings
EDC Installation and Maintenance Instructions Appendix A - Plan, Elevation and Footprint Drawings EDC (27" Length) (241) (686) 25.3 (644) 15.8 (402) 12.3 (127.00) (201) (312) 40.6 (1032) (66) (864) (99) (53) (30) ALL DIMENSIONS ARE APPROXIMATE NOTE PUD1535R5-5 For assistance: support@alvaradomfg.com +1 (909) 591-8431... -
Page 22: Edc-E (Extended)
EDC Installation and Maintenance Instructions Appendix A - Plan, Elevation and Footprint Drawings (cont.) EDC-E (Extended) 9.50 (241) 34.00 (864) 30.3 (771) 20.8 (529) 12.3 (216) (312) (188) 40.6 (1032) (864) (53) (66) (99) (119) ALL DIMENSIONS ARE APPROXIMATE NOTE Page 22 For assistance: support@alvaradomfg.com +1 (909) 591-8431... -
Page 23: Edc-Bn (Bullnose)
EDC Installation and Maintenance Instructions Appendix A - Plan, Elevation and Footprint Drawings (cont.) EDC-BN (Bullnose) 9.50 (241) 36.5 (927) 25.3 (644) 15.8 (402) 12.3 (312) (127) (201) (150) 40.6 (1032) (66) (864) (99) (53) NOTE ALL DIMENSIONS ARE APPROXIMATE PUD1535R5-5 For assistance: support@alvaradomfg.com +1 (909) 591-8431... -
Page 24: Edc-Ebn (Extended Bullnose)
EDC Installation and Maintenance Instructions Appendix A - Plan, Elevation and Footprint Drawings (cont.) EDC-EBN (Extended Bullnose) (241) 43.5 (1105) 30.3 (771) 20.8 (529) 12.3 (312) (216) (188) (239) (66) 40.6 (99) (1032) (864) (53) NOTE ALL DIMENSIONS ARE APPROXIMATE Page 24 For assistance: support@alvaradomfg.com +1 (909) 591-8431... -
Page 25: Appendix B - Replacement Parts Kits
EDC Installation and Maintenance Instructions Appendix B - Replacement Parts Kits Below are the most commonly used replacement parts kits for EDC turnstiles. Additional parts kits are available. Contact Alvarado Technical support at (909) 591-8431 for assistance. Kit Locations - EDC Sub Assembly Fig. - Page 26 EDC Installation and Maintenance Instructions Appendix B - Replacement Parts Kits (cont.) Optical Sensor Assembly Kit (Kit P/N 50-04-7380A) DESCRIPTION Optical Sensor Assembly (includes wire harness) 1/4"-20 Hex Nut - Zinc 1/4" Flat Washer 1/4" Spit Lockwasher - Zinc Hydraulic Closure Kit (Kit P/N 50-11-9060)
- Page 27 EDC Installation and Maintenance Instructions Appendix B - Replacement Parts Kits (cont.) Solenoid (12VDC) Kit (Kit P/N 50-10-1070) DESCRIPTION Solenoid 12V, w/ Plunger 8-32 x 1/4" Socket Head Cap Screws - Blk Oxide 8-32 x 5/16" Socket Head Cap Screws - Blk Oxide...
- Page 28 EDC Installation and Maintenance Instructions Appendix B - Replacement Parts Kits (cont.) Turnstile Control Board (Kit P/N 50-10-7821) DESCRIPTION 10-7821 Turnstile Control Board Dry Contact Label 6-32 x 1/4” Round Head Phillips Screw - Zinc 6-32 x 3/8” Standoff, F/F - Aluminum...
-
Page 29: Appendix C - 10-7822 Turnstile Control Board Layout And Terminal Descriptions
EDC Installation and Maintenance Instructions Appendix C - 10-7822 Turnstile Control Board Layout and Terminal Descriptions Fig. C1 10-7822 Turnstile Control Board CCW CW X 5 R G Y X 5 R G Y LEGEND Item Name CCW Test Activation Switch (SW7) - Page 30 Outputs a dry contact upon rotation of the turnstile. This feature can be Passage CCW Direction used to output a “count” signal to an external system such as Alvarado’s Count GateWatch or to provide feedback to the access control system that a turnstile rotation has taken place.
- Page 31 Outputs a dry contact upon rotation of the turnstile. This feature can be Passage CW Direction used to output a “count” signal to an external system such as Alvarado’s Count GateWatch or to provide feedback to the access control system that a turnstile rotation has taken place.
-
Page 32: Revision History
EDC Installation and Maintenance Instructions Revision History Revision Date Author Description 04/02/15 A. Flores Updated junction box figures. Revised maintenance instructions. 10/13/15 A. Flores Revised product dimensions. 01/08/16 A. Flores Revised product dimensions. SW4 DIP switch 8 configures OPN inputs as either normally open (N.O.) or normally closed (N.C.). - Page 33 This page intentionally left blank. PUD1535R5-5 For assistance: support@alvaradomfg.com +1 (909) 591-8431 Page 33...
- Page 34 12660 Colony Street, Chino, CA 91710 Telephone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com © 2014 Alvarado Manufacturing Company, Inc. This work may not be reproduced, published or redistributed, in whole or in part, without the express prior written permission of Alvarado.
