Powering On / Off..............................22 Testing Lane Functionality............................22 User Instructions..............................24 SW1000 Configuration..............................26 Connecting to the SW1000............................. 26 Using SwingGate Utility............................28 Maintenance.................................. 30 Options..................................31 Appendix A - SW1000T Tandem Gate Instructions....................... 32 Installation Tools..............................
SW1000 Installation and Operation Instructions Safety Precautions The SW1000 may present a risk to persons and property if it is not installed and/or operated WARNING correctly. Therefore, this manual must be read in its entirety and all safety and operations information must be followed.

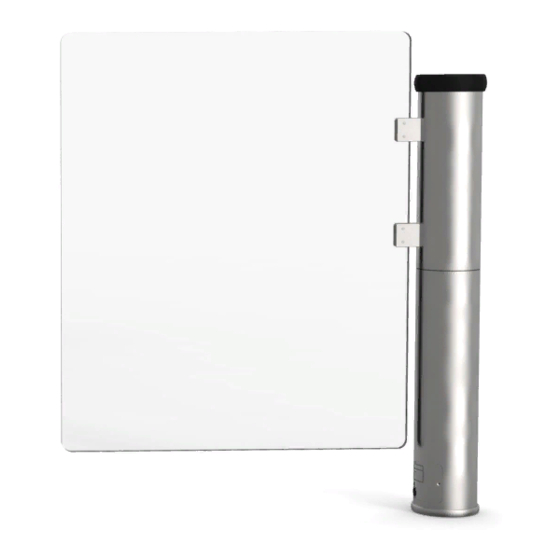

SW1000 Installation and Operation Instructions Introduction Purpose of this Manual This manual covers physical installation, operation, configuration, and maintenance instructions for SW1000 Motorized Pedestrian Security Gates. Please read this manual in its entirety before beginning installation. Intended Users This manual is intended for use by system integrators, facility operators, and owners responsible for installation of the product, the facility access system, and the employees, vendors, and invitees that will use the equipment on a day-to-day basis.
90 degrees away from the signal direction. The SW1000 is an ideal product to provide disabled or delivery access in conjunction with Alvarado's waist high or optical turnstiles.
SW1000 Installation and Operation Instructions Internal Components Figure 2 SW1000 / SW1000T - Interior View SW1000 Tower SW1000T Tower Digital Position Encoder Motor Primary Power Terminal Block Access Control Terminal Block Optional Sensor Terminal Block Configuration Terminal Block Power Supply...
Page 7
SW1000 Installation and Operation Instructions Internal Components (cont.) Digital Position Encoder The digital position encoder continually monitors the position of the barrier and works in conjunction with the motor and motor controller board to accomplish precise barrier movement. Motor The DC brushless motor operates the drive system moving the barrier.
(TB2). Power Failure When power is removed from the unit, the SW1000 barrier moves freely in either direction. When pushed or pulled to the open position, the barrier remains open. When power is restored, the gate resumes normal operation.
Parts List This product is shipped with all installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If parts are missing and/or damaged, please contact Alvarado Technical Support at (909) 591-8431.
SW1000 Installation and Operation Instructions Pre-Installation NOTE Refer to Appendix A for information and instructions specific to SW1000T tandem gate installations. Slab Requirements The following slab requirements must be taken into consideration when determining an installation location: • The gate must be installed on a solid, level concrete pad with a minimum thickness of 4" (102mm).
Primary power is stepped down and rectified for low-voltage 24 VDC, 12 VDC and 5 VDC operation. Fuse 3A (slo-blo) fuse is installed on each gate. Surge Protection Alvarado suggests the use of surge protection on the high-voltage power line to further protect electronics Drive Motor 24V BLDC PUD3448R2-1 For Assistance: support@alvaradomfg.com +1 (909) 591-8431...
SW1000 Installation and Operation Instructions Environmental Requirements • DO NOT install the product outdoors. This product is intended for indoor use only. The following are suggested operating temperature and humidity ranges for the SW1000: Operation Non-Operation/Storage Temperature Range 10° - 32°C / 50° - 90°F 0°...
SW1000 Installation and Operation Instructions Installation Instructions NOTE It is assumed that the Pre-Installation Checklist steps are complete. Refer to Appendix C for portable baseplate installation instructions. Base Installation Figure 7 Base Plate / Barrier Alignment 1. Align the base plate over the conduit opening and mark the location of each anchor hole.
SW1000 Installation and Operation Instructions Tower Assembly Installation Figure 10 Route Wiring 1. Route primary power and access control wiring through the base plate into the tower assembly [Figure 10]. NOTE If installing an SW1000T tandem gate, refer to Appendix A for instructions on routing DC power and communication to the slave gate.
SW1000 Installation and Operation Instructions Primary Power Wiring Figure 12 Three-Wire Pig Tail NOTE REFER TO APPENDIX A FOR INSTRUCTIONS ON WIRING DC POWER TO THE SW1000T SLAVE GATE. CAUTION It is strongly recommended that a licensed electrician perform the following steps, maintaining strict adherence to all local electrical codes.
SW1000 Installation and Operation Instructions Access Control Wiring Terminal blocks for wiring access control signals to the SW1000 are mounted to the pedestal frame [Figure 13]. Instructions for wiring access control signals are provided on the following pages. Figure 13...
SW1000 Installation and Operation Instructions Open Entry Receipt of an input contact opens the gate in Figure 14 Entry Passage Terminals the entry direction for the defined dwell time, then closes. Dwell time can be configured using SwingGate Utility. Typically, these signals are...
SW1000 Installation and Operation Instructions Barrier Hold Open Receipt of an input signal keeps the gate open in Figure 16 Barrier Hold Open Terminals the appropriate direction for as long as the contact signal is sustained. Typically, these signals are provided by an integrated toggle button used to keep the gate open for an indefinite period of time.
SW1000 Installation and Operation Instructions Emergency Override State Select This terminal is used to configure the Emergency Figure 18 Emergency Override State Select Terminals Override terminal (TB3-5) as either normally open or normally closed. The default configuration is normally open (no wire jumper installed). To...
SW1000 Installation and Operation Instructions Complete Installation Covers & Lid Installation Upper & Lower Figure 20 Cover Installation 1. Slide the lower cover over the tower assembly [Figure 20]. Ensure the lower cover is oriented such that the opening is aligned with the power button and fuse assembly, and is seated properly in the base plate groove.
SW1000 Installation and Operation Instructions Barrier Installation Figure 22 Barrier Clamps 5. Install barrier clamps to the tower assembly using provided mounting screws [Figure 22]. Using a torque wrench and 1/4" Allen bit, torque to 39 ft-lbs. Figure 23 Barrier Plates 6.
The power button is located at the base of the tower [Figure 25]. 1. Using a slim object such as a pencil or pen, push the power button. 2. When the SW1000 bootup sequence is complete, the barrier will move to the home position and enter controlled passage mode. Power...
Page 23
SW1000 Installation and Operation Instructions Testing Lane Functionality (cont.) OPEN EXIT TEST PROCEDURE GATE RESPONSE Activate the lane in the exit direction. • The barrier moves to the open position. Secured Side • The barrier returns to the home position after 6 seconds.
Controlled Passage Mode NOTE The SW1000 gate may be controlled by an access control system or a security desk button. The following instructions assume the gate is controlled by an access control system with a card reader for validating credentials.
Page 25
SW1000 Installation and Operation Instructions User Instructions (cont.) Free Passage Mode (Optional) Figure 27 Free Passage Mode 1. No credentials are required for Free Passage mode. Secured Side Approach the gate: • When the exit free passage sensor detects your presence, the barrier moves to the open position.
SW1000 Configuration SwingGate Utility is required to configure gate settings. This utility is located on the software CD that was included with the SW1000. No installation is required. Simply copy SwingGateUtility.exe over to the computer and double- click to run.
Page 27
SW1000 Installation and Operation Instructions Connecting to the SW1000 (cont.) 1. Double-click SwingGateUtility.exe to launch the utility. This will bring up the SwingGate Utility main screen. 2. Select COM port from the drop-down menu and click Open [Figure 30]. NOTE Depending on the computer, the COM port number may differ.
To customize a gate parameter, enter a value in the text box and click Set. • For SW1000T tandem units, settings must be configured on each side. • If after reading this document, you are unclear regarding a particular setting, contact Alvarado before changing the setting. Figure 31 SwingGate Utility Main Screen Parameters Parameter descriptions on next page.
Page 29
SW1000 Installation and Operation Instructions Using SwingGate Utility (cont.) ITEM SETTING DESCRIPTION Panel Profile Selects the panel profile: • Low - 39" barrier height, manufactured before to August 2015 • Mid - 46" barrier height, manufactured before to August 2015 •...
Exterior Finish The best way to maintain the SW1000's exterior finish and prevent corrosion is to clean it regularly. 1. Satin Chrome Finishes - Use only a soft damp cloth for cleaning, as satin chrome scratches easily. To remove light dirt and grime, use a mild detergent diluted in some warm water.
An "Enter" sign can be mounted to the entry side of the barrier. Barrier Etching Customer's choice of logo / artwork may be etched on the barrier. Contact Alvarado for artwork requirements. Exit Free Passage Sensor A motion sensor is used to detect oncoming traffic in the exit direction. When a user is detected, the gate automatically opens in the direction of travel.
SW1000 Installation and Operation Instructions Appendix A - SW1000T Tandem Gate Instructions SW1000T Tandem Gate installations require additional planning and installation steps. Use the information in this section to properly install the SW1000T Tandem Gate. Installation Tools • All tools listed on Page 9 •...
SW1000 Installation and Operation Instructions Conduit Requirements • Conduit opening is 2.5". Recommended conduit size is .5". • Run primary power and access control conduit to the master gate. • Run DC power and communication conduit from the master gate to the slave gate.
SW1000 Installation and Operation Instructions DC Power Crossover Cable DC power is run from the master gate to the slave gate using the DC power crossover cable (10-1353). Follow the instructions below to connect DC power to the slave gate.
SW1000 Installation and Operation Instructions Communication Crossover Cable Communication is run from the master gate to the slave gate using the communication crossover cable (10-1306). Follow the instructions below to connect communication to the slave gate. Figure A5 J15 Connector (Master Gate) 1.
SW1000 Installation and Operation Instructions Appendix B - Connecting the RS232 Programming Cable to the Motor Controller Board In order to gain access to the motor controller board, the barrier, clamps, and tower covers NOTES need to be removed. Refer to the installation section of this manual for more information.
Page 37
SW1000 Installation and Operation Instructions Appendix C - Portable Baseplate Dimension Figure C1 52.48 [1333.0] 42.19 [1071.5] PUD3448R2-1 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 Page 37...
Page 38
SW1000 Installation and Operation Instructions Appendix C - Portable Baseplate Installation The baseplate enables installation of the SW1000 on a solid foundation without the need to drill hoes into the concrete. The baseplates also provides concealed conduit channels for wiring primary power, crossover communication, and access control.
SW1000 Installation and Operation Instructions Troubleshooting This basic troubleshooting section is provided to aid installers with the most commonly encountered installation problems. If you require more troubleshooting assistance, contact Alvarado Technical Support. Symptom Possible Cause Solution The barrier does No power...
SW1000 Installation and Operation Instructions Revision History Revision Date Author Description 1/27/15 A. Flores Added Appendix - Setting the Home Position 10/5/15 A. Flores Includes 2015 design changes. Added configuration, operation, and maintenance instructions. Updated document layout. 1/25/17 A. Flores Added Security Alarm functionality.
Page 41
SW1000 Installation and Operation Instructions This page intentionally left blank. PUD3448R2-1 For Assistance: support@alvaradomfg.com +1 (909) 591-8431 Page 41...
