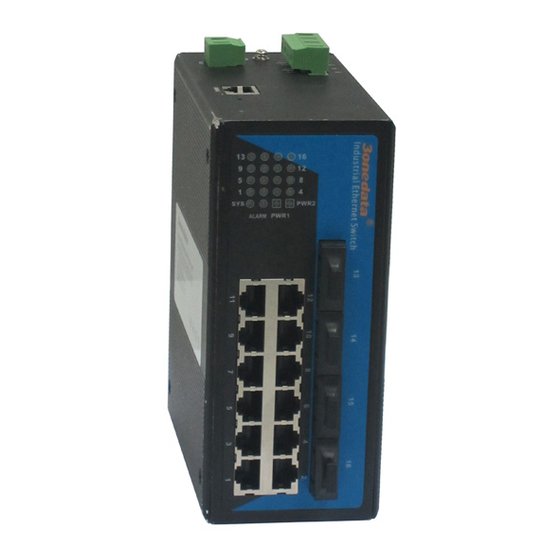

Unmanaged industrial ethernet switch

Advertisement

Quick Links

IES3016L Series
Unmanaged Industrial
Ethernet Switch
Shenzhen 3onedata Technology Co.,Ltd.
Address: 2F, 3B, Jiuxiangliang Industrial District, Xili
Town, Nanshan District, Shenzhen, 518055, China
Website: www.3onedata.com
Phone: +86 0755-26702668
Fax: +86 0755-26703485
【Brief Introduction】
IES3016L series is unmanaged industrial Ethernet switch
which includes
IES3016L-P (12/48VDC) and IES3016L-4F-P
(12/48VDC). All the ports support auto-negotiation, 10/100Mbps,
and F/H duplex, etc. All components chosen for the switch are
industrial level to ensure high performance.IES3016L series
switch provides widen voltage to the device.
【Packing List】
Please check the package and all the components inside are
in good condition before you use the switch.
3onedata Ethernet switch*1
User manual
CD
Warranty card
【Features】
Support 16 ports (16-FE);
Support MAC address auto-learning;
8K MAC address
System switching bandwidth 3.2 Gbps
Support 1 alarm output;
0-60℃ working temperature;
No fan, low consumption design
IP40 protection

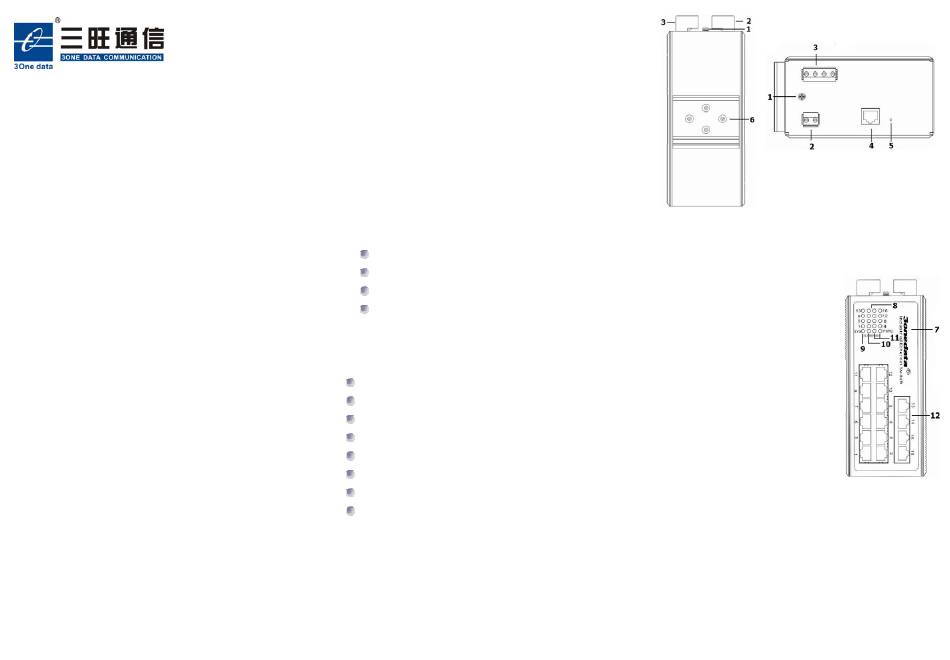

【Panel Layout】
IES3016L-P (12/48VDC):
1. Grounding screw
2. Relay output (2 bits)
3. Power input
4. Console port (RS-232 serial
Port, RJ45)
5. Reset
6. DIN-Rail kit
7 company logo and product name
8. Port indicator
9. System indicator
10. Alarm indicator
11. Power indicator
12. 10Base-T /100Base-TX port
IES3016L-4F-P (12/48VDC):

Advertisement

loading
Need help?

Need help?

Do you have a question about the IES3016L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for 3onedata IES3016L Series

  • Page 1 【Brief Introduction】 IES3016L series is unmanaged industrial Ethernet switch which includes IES3016L-P (12/48VDC) and IES3016L-4F-P (12/48VDC). All the ports support auto-negotiation, 10/100Mbps, and F/H duplex, etc. All components chosen for the switch are industrial level to ensure high performance.IES3016L series switch provides widen voltage to the device.
  • Page 2 The input terminal block of relay is in top panel of the switch. It is the contact of alarm relay. It will be open circuit when alarm happens, or it will be always closed circuit. IES3016L series MDI (straight-through cable)
  • Page 3 Power 1 is working. PWR1 PWR1 is not connected or does Wiring Requirements not run normally. Wiring need to meet the following requirements: Power 2 is working. It is needed to check whether the type, quantity and PWR2 PWR2 is not connected or run specification of cable match the requirement before normally.
  • Page 4 IES3016L (DC): 【Specification】 No-load power: 2.0W@24VDC Technology Full-load power: 4.6W@24VDC Standard: IEEE802.3, IEEE802.3u, IEEE802.3x IES3016L-4F (DC): Transmit mode: store and forward No-load power: 4.8W@24VDC Flow control: IEEE802.3x, back-pressure control Full-load power: 7.0W@24VDC MAC address: 8K System switching bandwidth: 3.2G Mechanical: Cache: 256K Shell: IP40 Weight: 1.1kg...
