IES3016 series
Industrial Ethernet switches
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】
IES3016 series is a Plug-and-play unmanaged industrial Ethernet
switch. The IES3016 industrial Ethernet switches consists of 16
Ethernet ports. The IES3016-2F consists of 14 Ethernet ports and
2 Fiber ports. The IES3016-4F consists of 12 Ethernet ports and 4
Fiber ports. The IES3016-6F consists of 10 Ethernet ports and 6

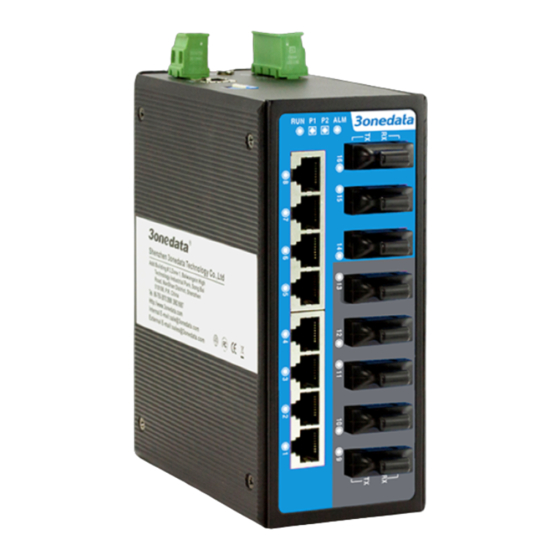

Fiber ports. The IES3016-8F consists of 8 Ethernet ports and 8
Fiber ports that provide an economical solution for your industrial
Ethernet connection. It supports auto flow control, full/half duplex
mode and MDI/MDI-X self-adaption. Product accorded to CE,
FCC standard and Industry grade 4 design requirement, support 2
redundant power input and -40～75℃ working temperature, can
meet all kinds of Industrial environment requirement. It can use in
power, water conservancy, transportation area etc. The switch
support AC power input series and DC power input series
optional.
【Packing list】
Please check the packaging and accessories by your first using.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
Certificate of quality ⅹ 1
Warranty card ⅹ 1
Please inform us or our distributor if your equipments have been
damaged or lost any accessories, we will try our best to satisfy
you.
【Feature】
High performance network exchange technology
Support IEEE802.3, IEEE802.3u, IEEE 802.3x
Support MAC address auto-learning, auto-aging
Support flow control
Support 8K MAC address
Support 12.8Gbps backboard bandwidth
DC power input series support redundancy power
supply(12～48VDC)
AC power input series support AC power supply(100～
240VAC/DC)
Reliable Industrial grade design
Industrial grade 4 design, -40-75℃work temperature
No fan deign
IP40 protection grade
DIN rail

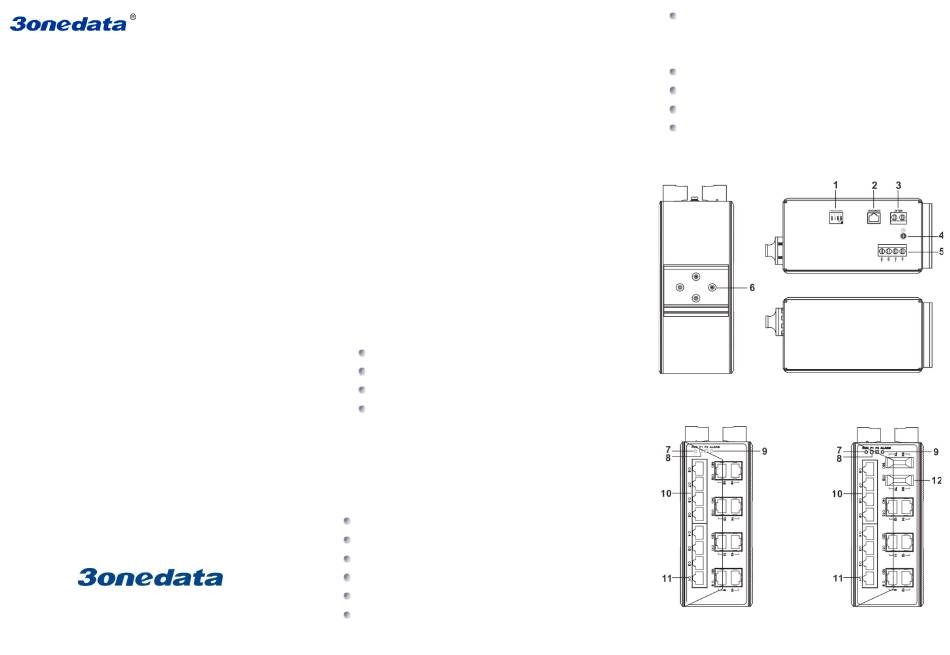

【Panel layout】
Rear view
Vertical view and bottom view
Front panel view
IES3016
IES3016-2F
