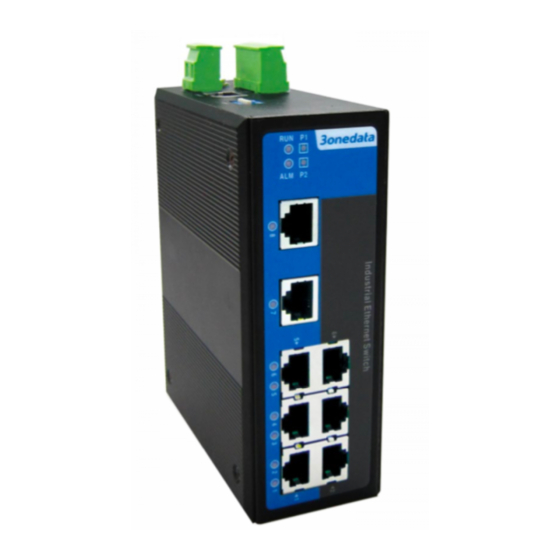

Unmanaged industrial ethernet switch

Advertisement

Quick Links

IES318 Series
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485

【Package Checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1.
Industrial Ethernet switch
3.
Quick installation guide
5.
DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

This series are plug-and-play unmanaged industrial Ethernet
switches. Models as follows:
Model I.
IES318 (8 100M copper ports)
Model II. IES318-1F (7 100M copper ports + 1 100M fiber
port)
Model III. IES318-2F (6 100M copper ports + 2 100M fiber
ports)

【Panel Design】

Top view, Bottom view and Rear view
Nanshan
District,
Front view
2.
Certification
4.
Warranty card
Model I
1.
DIP switch
2.
Power input terminal block
3.
Relay alarm output terminal block
4.
Grounding screw
5.
Wall-mounted location hole
6.
DIN-Rail mounting kit

【Mounting Dimension】

Model II
Model III

【DIN-Rail Mounting】

7.
Power input status indicator P1/P2
8.
Device running indicator RUN
9.
Relay alarm indicator ALM
10.
Ethernet port status indicator
11.
10/100Base-T(X) Ethernet copper port
12.
100Base-FX Ethernet fiber port
Unit: mm
Attention before mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES318 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for 3onedata IES318 Series

  • Page 1 Model III. IES318-2F (6 100M copper ports + 2 100M fiber Power input status indicator P1/P2 ports) Device running indicator RUN Relay alarm indicator ALM IES318 Series 【Panel Design】 Ethernet port status indicator Unmanaged Industrial Ethernet  Top view, Bottom view and Rear view...
  • Page 2 DIN-Rail. LINK/ACT Ethernet port connection is occurs. IES318 series support 1 relay warning message Tips: (1-8) inactive. output (this series only support power down alarm of the port...
  • Page 3 Power supply 12~48VDC, dual power supply Input power supply redundancy, nonpolarity and anti-reverse connection 4 pins 7.62mm pitch terminal Access terminal blocks Consumption No-load: 1.5W@24VDC IES318 Full-load: 2.2W@24VDC No-load: 1.7W@24VDC IES318-1F Full-load: 3.2W@24VDC No-load: 3.6W@24VDC IES318-2F Full-load: 4.3W@24VDC Environmental Limits Working temperature -40℃~75℃...

This manual is also suitable for:

Ies318Ies318-1f
