IES318 Series
Unmanaged Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
Package Checklist
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. DIN-Rail mounting attachment
3. Power line (AC device standard)
4. Certificate
5. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
Product Overview
This series of products is a plug and play unmanaged industrial
Ethernet switch, with the following options available
Model I. IES318-4T4F-2P48 (4 100M copper ports + 4 100M
fiber ports + 9~60VDC dual power supply)
Model II. IES318-4T4F-P220 (4 100M copper ports + 4 100M
fiber ports + 220VAC/DC power input)
Model III. IES318-6T2F-2P48 (6 100M copper ports + 2 100M
fiber ports + 9~60VDC dual power supply)
Model IV. IES318-6T2F-P220 (6 100M copper ports + 2
100M fiber ports + 220VAC/DC power input)
Model V. IES318-7T1F-2P48 (7 100M copper ports + 1 100M
fiber port + 9~60VDC dual power supply)
Model VI. IES318-7T1F-P220 (7 100M copper ports + 1 100M
fiber port + 220VAC/DC power input)
Model VII. IES318-8T-2P48 (8 100M copper ports + 9~60VDC
dual power supply)
Model VIII. IES318-8T-P220 (8 100M copper ports +
220VAC/DC power input)

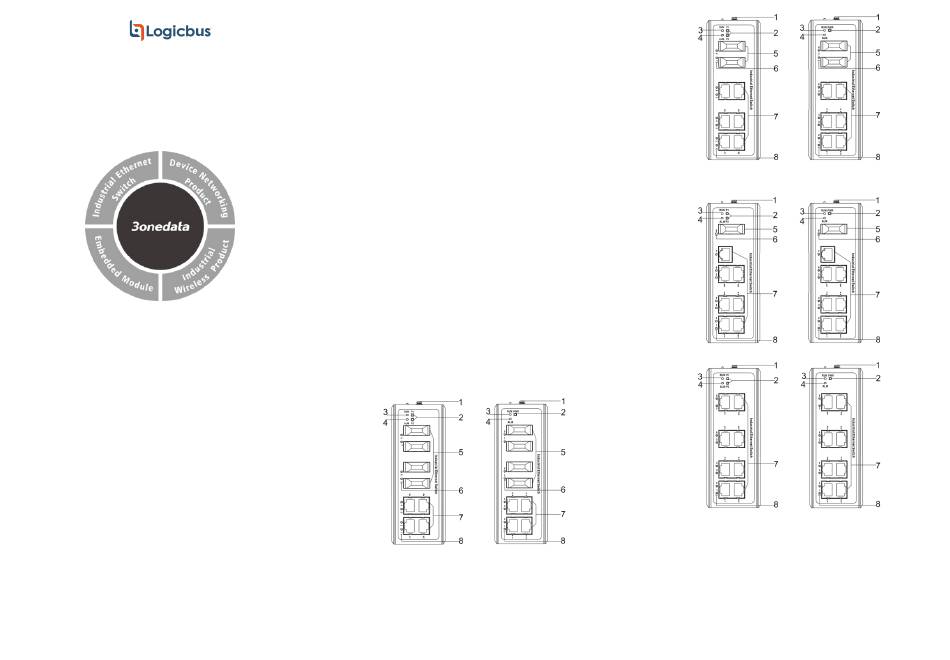

Panel Design
Front view
Model I Model II
Model III Model IV
Model V Model VI
Model VII Model XIII

Advertisement

loading
Need help?

Need help?

Do you have a question about the Logicbus IES318 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3onedata Logicbus IES318 Series

  • Page 1 Model VI. IES318-7T1F-P220 (7 100M copper ports + 1 100M fiber port + 220VAC/DC power input) Model VII. IES318-8T-2P48 (8 100M copper ports + 9~60VDC dual power supply) 3onedata Co., Ltd. Model VIII. IES318-8T-P220 (8 100M copper ports + Address: 3/B, Zone 1, Baiwangxin High Technology 220VAC/DC power input)
  • Page 2 Wall-mounting location hole The product adopts 35mm standard DIN-Rail mounting which Rear view Wall mounting board (optional) is suitable for most industrial scenes, mounting steps as DIP switch follows: Console port DC power input terminal block AC power input terminal block Relay alarm output terminal block Mounting Dimension Unit: mm...
  • Page 3 Power Supply Connection Definition Operation The Ethernet interface has DC dual power supply enable Power 2 Alarm established a valid network Model I, Model III, Model V, and Model VII Set the DIP switch to ON to connection. Flow Control Link/Act support redundant power input, providing enable Flow Control...
  • Page 4 compatible disposal, will help (85~264VAC/DC), with built-in prevent potential damage to overcurrent protection 4-pin 7.62mm pitch terminal the environment and human Access terminal block blocks health, facilitating the reuse, Power Consumption recycling and/or recovery of its component materials. No-load: 3.8W@48VDC Model I Private users should contact Full-load: 4.3W@48VDC...
