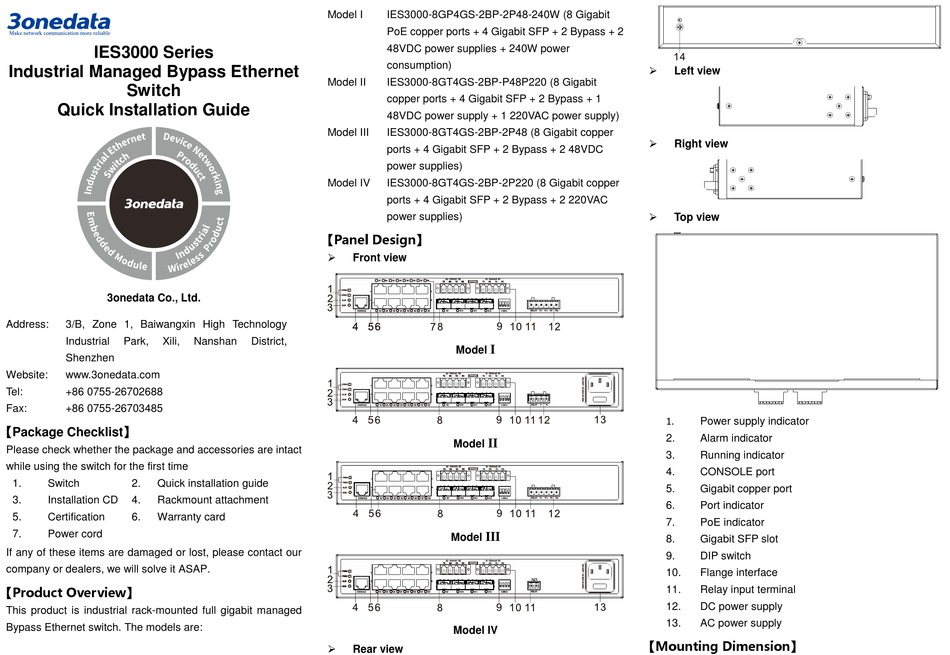

IES3000 Series
Industrial Managed Bypass Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time
1.
Switch
2.
Quick installation guide
3.
Installation CD
4.
Rackmount attachment
5.
Certification
6.
Warranty card
7.
Power cord
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is industrial rack-mounted full gigabit managed
Bypass Ethernet switch. The models are:
Model I
Model II
Model III
Model IV
【Panel Design】

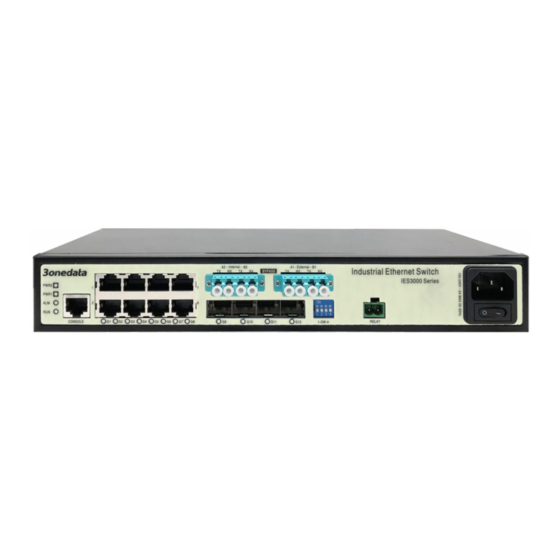

Front view
Nanshan
District,
Rear view
IES3000-8GP4GS-2BP-2P48-240W (8 Gigabit
PoE copper ports + 4 Gigabit SFP + 2 Bypass + 2
48VDC power supplies + 240W power
consumption)
IES3000-8GT4GS-2BP-P48P220 (8 Gigabit
copper ports + 4 Gigabit SFP + 2 Bypass + 1
48VDC power supply + 1 220VAC power supply)
IES3000-8GT4GS-2BP-2P48 (8 Gigabit copper
ports + 4 Gigabit SFP + 2 Bypass + 2 48VDC
power supplies)
IES3000-8GT4GS-2BP-2P220 (8 Gigabit copper
ports + 4 Gigabit SFP + 2 Bypass + 2 220VAC
power supplies)
I
Model
II
Model
III
Model
Model IV
Left view
Right view
Top view
1.
Power supply indicator
2.
Alarm indicator
3.
Running indicator
4.
CONSOLE port
5.
Gigabit copper port
6.
Port indicator
7.
PoE indicator
8.
Gigabit SFP slot
9.
DIP switch
10.
Flange interface
11.
Relay input terminal
12.
DC power supply
13.
AC power supply
【Mounting Dimension】

Advertisement

loading
Need help?

Need help?

Do you have a question about the IES3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3onedata IES3000 Series

  • Page 1 Model I IES3000-8GP4GS-2BP-2P48-240W (8 Gigabit PoE copper ports + 4 Gigabit SFP + 2 Bypass + 2 48VDC power supplies + 240W power IES3000 Series consumption)  Industrial Managed Bypass Ethernet Left view Model II IES3000-8GT4GS-2BP-P48P220 (8 Gigabit Switch copper ports + 4 Gigabit SFP + 2 Bypass + 1...
  • Page 2 Unit: mm screws to mount the right and left mounting lugs on Power Power supply Power supply range supply type Schematic the rack. 48VDC(12~48VDC) 220VAC(100~240VAC) Step 4 Check and confirm that the product is mounted  2 DC power supplies firmly on the rack, mounting ends The Model I and Model III of this 【Dismounting the Device】...
  • Page 3 Status Description disconnected running When powered on, abnormally TX, RX at A2 end Power supply connect to RX, TX at A1 connected normally side separately, PWR2 Power supply TX, RX at B2 end disconnected running connect to RX, TX at B1 abnormally side separately.
  • Page 4 The maximum power of PoE port: PoE (Only for PoE PoE power supply pin: V+, V+, V- product) and V- correspond to Pin 1, 2, 3 and 6 2*4LC-LC, single mode fiber, Flange interface support Bypass CLI command management Console port port(RS-232), RJ45 2-pin 5.08mm pitch terminal blocks or 4-pin 5.08mm pitch terminal...
