Sumake ST-6676 Manual

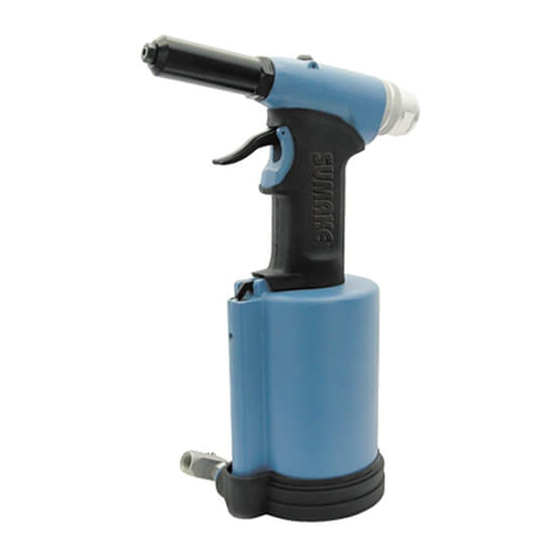

1/4" (6.4mm) full range air hydraulic riveter
Hide thumbs

Advertisement

Quick Links

Download this manual
SUMAKE
1/4"(6.4mm) Full Range Air Hydraulic Riveter
Specification:
Riveting Capacity
Stroke Length
Traction Power
Overall Height
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Non-Vacuum)
ST-6676
1/8", 5/32", 3/16, 1/4"
(3.2mm, 4.0mm, 4.8mm, 6.4mm)
0.875" (23mm)
3800 lbs (1723 kg)
12-1/2" (317mm)
9 CFM (255 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
5.0 lbs (2.3 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
No load: 71.1 dB(A)
Load:
< 2.5 m/s²
Sound power level
No load: 82.1 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
Remark
EN ISO 15744
Please always
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
Uncertainty
K= 3dB
ST-6676-S-1902E-FPF
wear ear
hearing!

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-6676 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sumake ST-6676

Summary of Contents for Sumake ST-6676

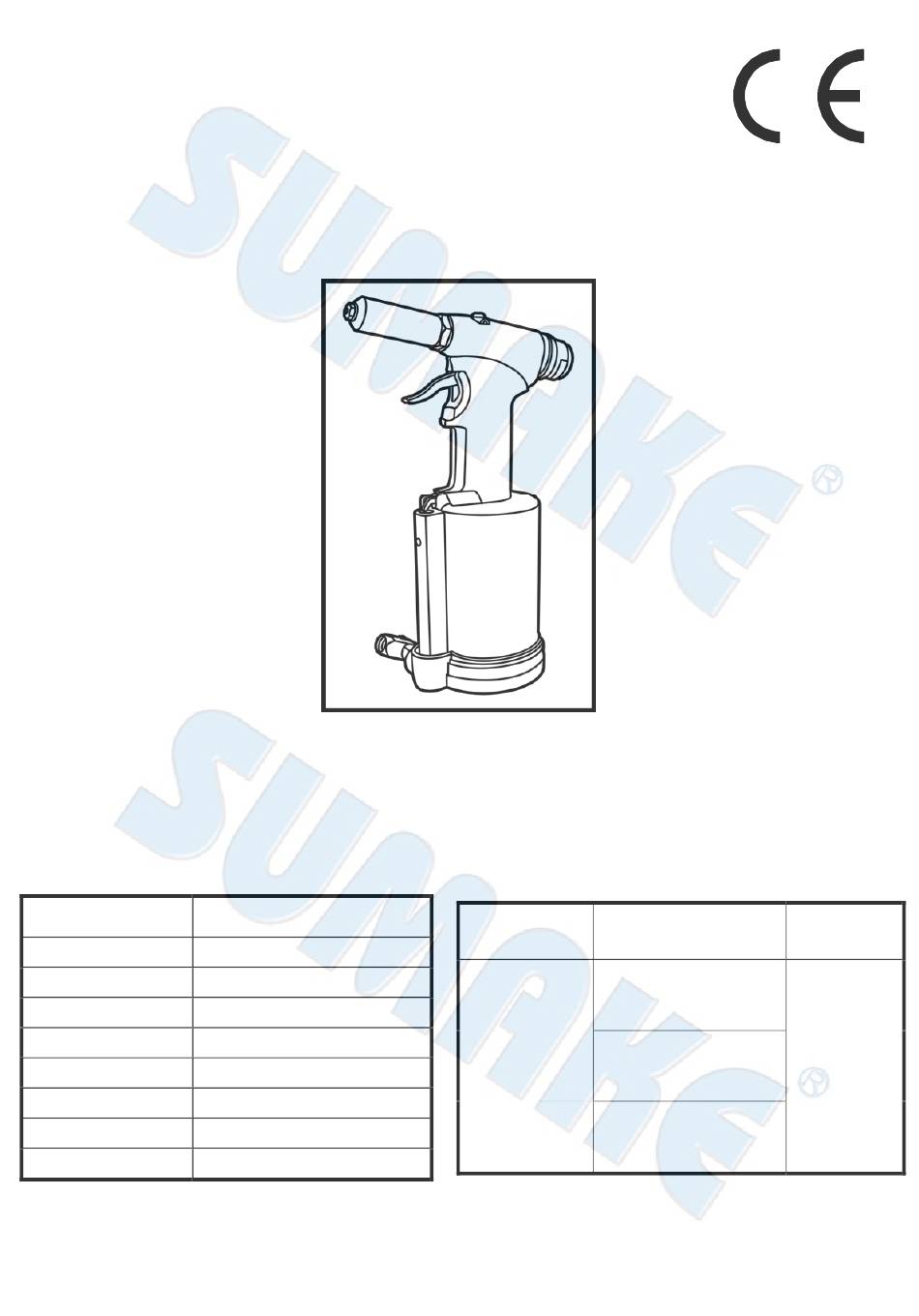

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 5.0 lbs (2.3 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6676-S-1902E-FPF...

  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1/4"(6.4MM) FULL RANGE AIR HYDRAULIC RIVETER (NON-VACUUM) Model/ Serial No.：ST-6676 to which this declaration applies, complies with these normative documents: ...

  • Page 3: General Information

    Adjustable vacuum air flow Easy access to spent mandrels The ST-6676 comes with 1/8”, 5/32”, 3/16” and 1/4” nosepieces for open end rivets. The 1/4” nosepiece is factory-installed on the tool; one each of the 1/8”, 5/32” and 3/16” nosepieces are included in the accessory bag.
  • Page 4 attaching Nosepiece). Use the 11mm wrench included with accessories to loosen and tighten the Nosepiece. If setting 1/8” or 5/32” rivets, you need to remove Jaw Pusher (#5) and replace it with Pusher Tube (#70). To do this, remove Nosepiece (#1) and Head (#2) from Riveter.
  • Page 5 Operating Instructions Attach a ¼” NPT (Quick Connect Valve) to the Air Inlet Fitting (#47). Plug air supply into Quick Connect Valve. Air supply should operate at no higher than 115 PSI. Squeeze Trigger (#51) to start the vacuum system. Insert mandrel of rivet into Riveter.
  • Page 6 NEVER allow Mandrel Bottle to fill more than 1/3 full. Damage to Hydraulic Plunger may occur. To empty Mandrel Bottle, turn knob at end of bottle to reveal bottle opening. Shake mandrels out of hole. Once emptied, turn knob until opening is covered and Mandrel Bottle is resealed. ST-6676-I-1106B-FP...
  • Page 7 ST-6676 1/4" (6.4MM) FULL RANGE AIR HYDRAULIC RIVETER (NON-VACUUM) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 6676-01 1/4" Nosepiece 6676-29 O-Ring Seal 6676-01A 1/8" Nosepiece 6676-30 Screw Plug 6676-01B 5/32" Nosepiece 6676-31 Air Cylinder Body 6676-01C 3/16" Nosepiece...
  • Page 8 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 9 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 10 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
  • Page 11 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
