Air Vibration-Reduction Needle Scaler
Specification:
Blow Per Minute
Needle
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-2569
4,800 b.p.m.
Φ3 x 180 x 19 pcs
33 mm
20 CFM (566 L/min)
14-1/2" (368 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
5.5 lbs (2.5 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Load
12.1 m/s²
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
Load: 99 dB(A)
Sound power level
Load: 110 dB(A)
Uncertainty
K= 3dB
ST-2569-S-2109C-JIF
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-2569
Summary of Contents for Sumake ST-2569

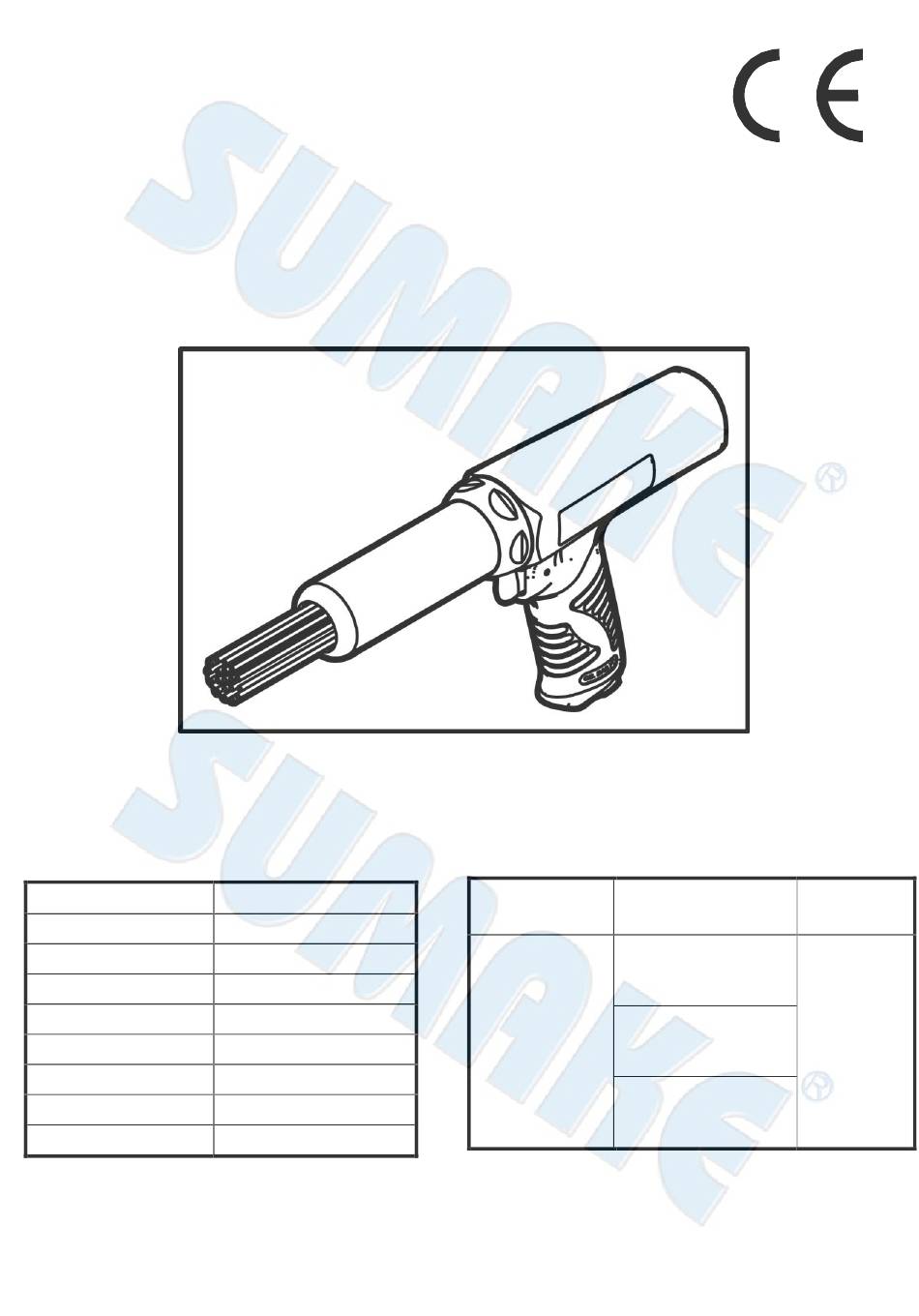

- Page 1 3/8” (10 mm) to risk of Air Hose (I.D.) impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 5.5 lbs (2.5 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2569-S-2109C-JIF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR VIBRATION-REDUCTION NEEDLE SCALER Model/ Serial No.：ST-2569 to which this declaration applies, complies with these normative documents: ...
- Page 3 Check air system and connections Valve set damaged or broken Disassemble and repair Low revolution rate Not enough air pressure Check air pressure efficiency Motor running abnormal Not enough lubrication, Lubricate or replace parts or unusual noises occur cylinder, piston damaged ST-2569-I-2102C-JI...
- Page 4 ST-2569 AIR VIBRATION-REDUCTION NEEDLE SCALER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 2569-01 Handle 2569-12 Cylinder Cap 2569-02 Inlet Bushing (1/4") 2569-13 Piston 2569-03 O-Ring P12 (D11.8xW2.4) 2569-14 Cylinder 2569-04 Valve Stem 2569-15 Seal 2569-05 O-Ring P4 (D3.8xW1.9)
- Page 5 SCALER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
- Page 8 warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary.
