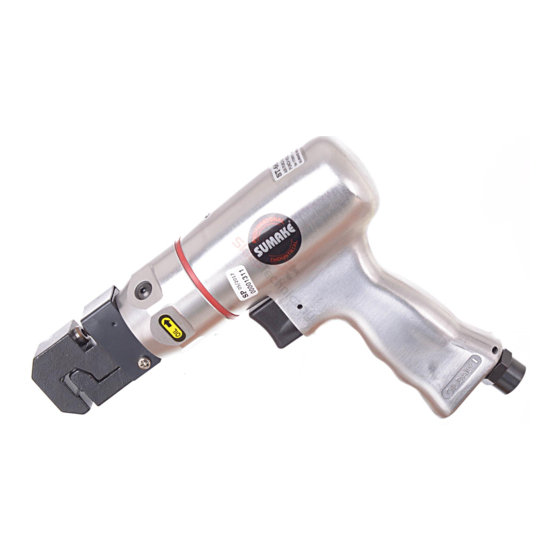

Sumake ST-6653DA Quick Start Manual

Sumake ST-6653DA Quick Start Manual

Air punch & flange punch hole dia. 8mm

Advertisement

Quick Links

SUMAKE
Specification:
Capacity
Punch Hole
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Air Punch & Flange
Punch Hole Dia. 8mm
ST-6653DA
1.2 mm
Dia. 8 mm
7-1/2" (250 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.64 lbs (1.12 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
No Load:
3.97 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
Remark
EN ISO 15744
Please always
load: 79 dB(A)
wear ear
protector at
environment
Sound power level
noise level >
load: 90 dB(A)
80 dB(A) due
to risk of
Uncertainty
impaired
K= 3dB
hearing!
ST-6653DA-S-2010B-D5F
