Sumake ST-6671 Instructions Manual

Sumake ST-6671 Instructions Manual

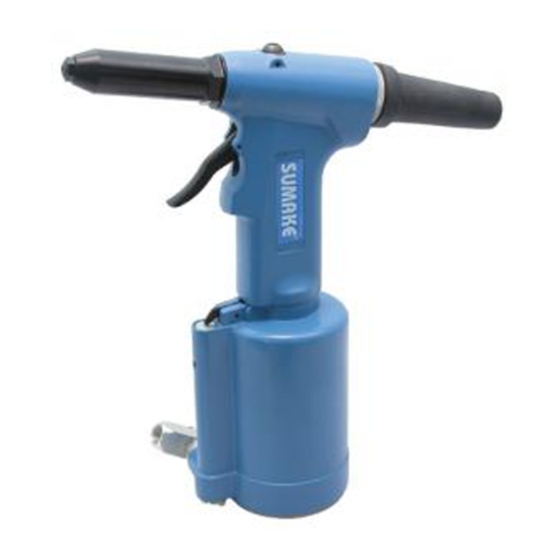

3/16"(4.8mm) air hydraulic riveter

Advertisement

Quick Links

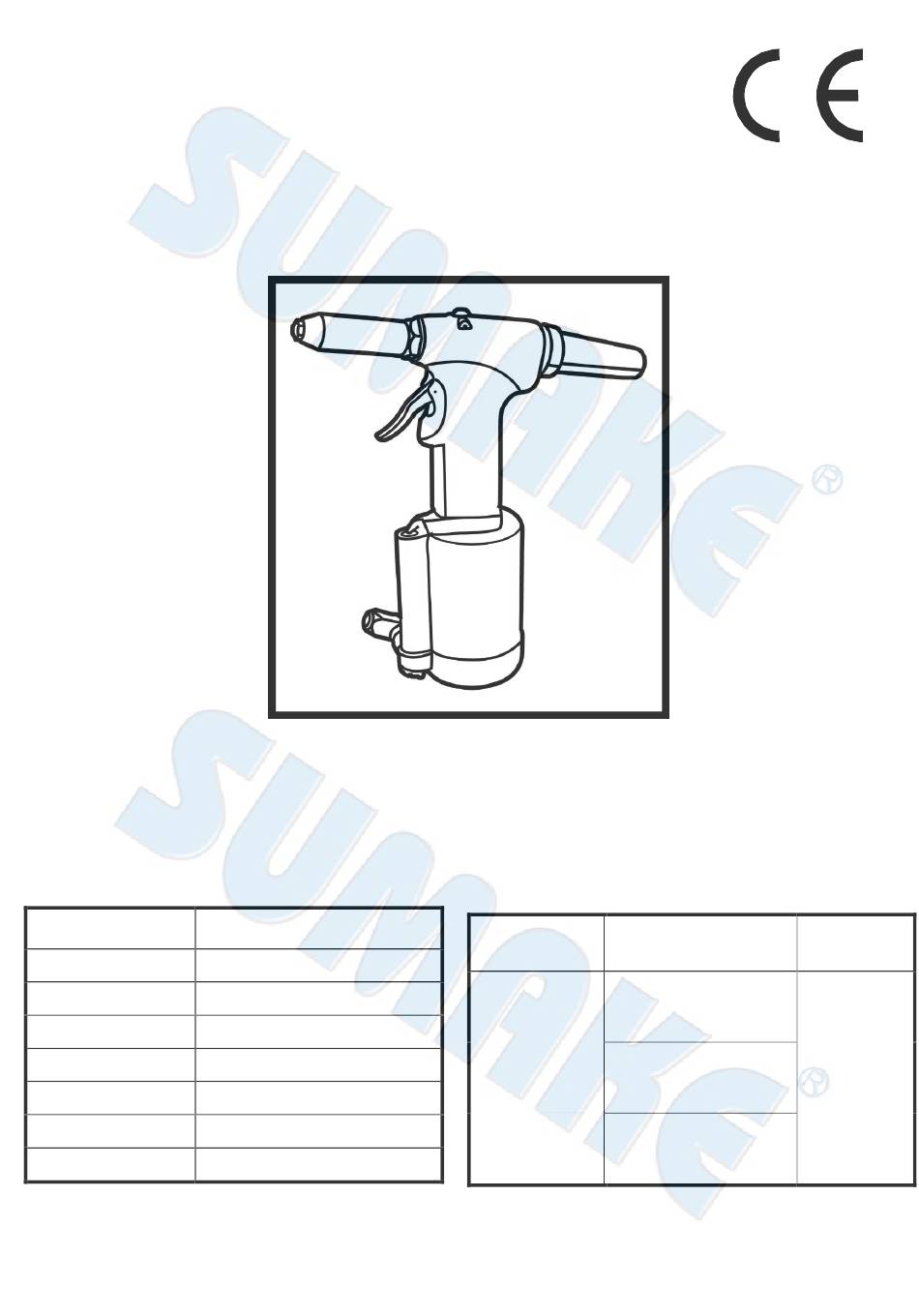

SUMAKE
3/16"(4.8mm) Air Hydraulic Riveter
Specification:
Riveting Capacity
Stroke Length
Traction Power
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Non-Vacuum Type)
ST-6671
3/32", 1/8", 5/32", 3/16
(2.4mm, 3.2mm, 4.0mm, 4.8mm)
5/8" (16mm)
2300 lbs (1000 kg)
9 CFM (255 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
4.0 lbs (1.8 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
Load:
< 2.5 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
No load: 71.1 dB(A)
Sound power level
No load: 82.1 dB(A)
Uncertainty
K= 3dB
ST-6671-S-2208D-FPF
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-6671 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ST-6671

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of Air Pressure 90 psi (6.3 bar) impaired Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 4.0 lbs (1.8 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6671-S-2208D-FPF...
  • Page 2: General Information

    Carefully screw Head (#2) back onto tool securely. Making sure the Jaw pieces stay in place. Lastly, screw correct Nosepiece onto tool The ST-6671 comes with 3/32”, 1/8”, 5/32” and 3/16” nosepieces for open- ( either 3/32”, 1/8” or 5/32” Nosepiece, corresponding to rivet size you end rivets.
  • Page 3 Jaws will be loose in narrow end of Head. Remove the 3 Jaw pieces, clean serrations with a wire brush or steel wool to remove debris. Once Jaws are clean, carefully reassemble by inserting 3 pieces of ST-6671-I-1011B-FP Jaws into narrow end of Head, with serrations of jaws facing inward...
  • Page 4: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: 3/16"(4.8MM) AIR HYDRAULIC RIVETER (NON-VACUUM TYPE) Model/ Serial No.:ST-6671 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 5: Parts List

    ST-6671 3/16" AIR HYDRAULIC RIVETER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 6671-01 3/16" Nosepiece 6671-31 Air Cylinder Body 6671-01A 1/8" Nosepiece 6671-32A Damping Ring 6671-01B 5/32" Nosepiece 6671-33 O-Ring Seal 6671-01C 3/32" Nosepiece 6671-34 Cylinder Cap...
  • Page 6 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 7: General Safety Rules

    The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 8 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
  • Page 9: Maintenance Instruction

    General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
