Sumake ST-M5032H Manual

Sumake ST-M5032H Manual

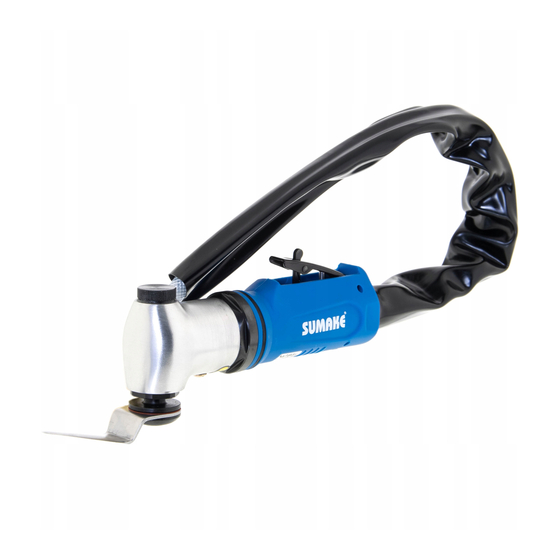

Mini air knife w/1pcs blade, hose

Advertisement

Quick Links

SUMAKE
Mini Air Knife W/1pcs Blade, Hose
Specification:
Free Speed
Cutting Distance
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
PNEUMATIC TOOLS
ST-M5032H
20,000 s.p.m.
3mm
13 CFM (368 L/min)
9-21/25" (250 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
1.48 lbs (0.67 kg)
Noise and Vibration:
Vibration
EN ISO 28927-8
Sound Pressure Level
No Load:
22.68 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
No load: 84 dB(A)
protector at
Sound power level
environment
No load: 95 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-M5032H-S-2011C-D5F
Remark
wear ear
hearing!

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-M5032H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ST-M5032H

  • Page 1 Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 1.48 lbs (0.67 kg) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan ST-M5032H-S-2011C-D5F...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: AIR KNIFE W/1PCE BLADE, HOSE Model/ Serial No.: ST-M5032H to which this declaration applies, complies with these normative documents: ...
  • Page 3 Use a 3 HP or larger To install a new blade, loose the black hexagon Sumake is a manufacturer and exporter of air 1. This tool is not insulted for coming into compressor for each sander.
  • Page 4: Parts List

    Ball Bearing (6000ZZ) M5032-43 Hexagon Wrench Key 5 M5032-20 Front End Plate M5032-45 "O" Rubber Band M5032-21 Spring Pin (Φ2.5x4) M5032H-46 Air Hose Ass'y 1/4" [ST-M5032H] M5032-22 Spring Pin (Φ2.5x5) M5032H-47 Sponge [ST-M5032H] M5032-23 Washer M5032H-48 Exhaust Hose [ST-M5032H] M5032-24...
  • Page 5 CUTTER(SAW) Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 other parts of the body. 2. While using the tool, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks which may help avoid discomfort and fatigue. 3.
  • Page 8 the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary.
