Sumake ST-5555C Original Instructions Manual

Sumake ST-5555C Original Instructions Manual

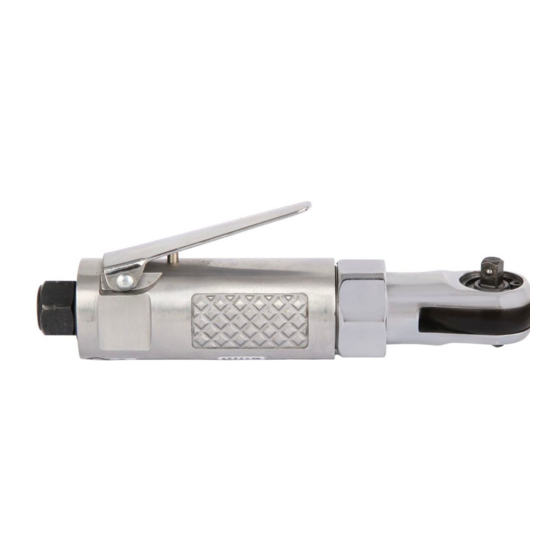

1/4" air ratchet wrench

Advertisement

Quick Links

SUMAKE

Specification:

Free Speed
Capacity Bolt Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

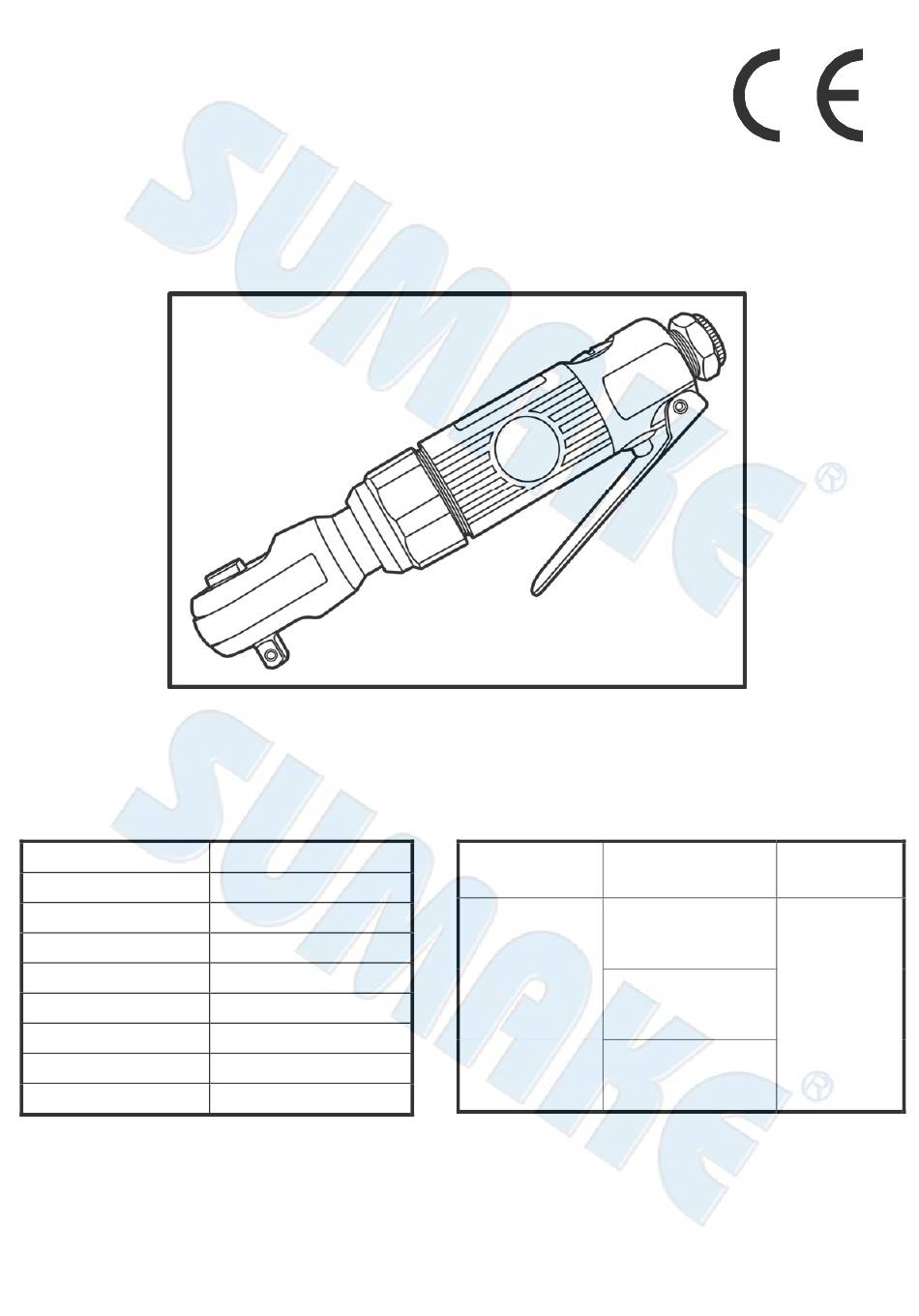

1/4" Air Ratchet Wrench
ST-5555C
240 r/min
1/4" (M6)
25 ft-lb (34 N-m)
10 CFM (283 L/min)
6-1/2" (165 mm)
1/4" (6.35 mm)
1/4" (6.35 mm)
90 psi (6.3 bar)
1.32 lbs (0.6 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
Load:
1.1 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
Remark
EN ISO 15744
Please always
load: 86 dB(A)
wear ear
protector at
environment
noise level > 80
load: 97 dB(A)
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-5555C-S-1603A-KLF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-5555C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ST-5555C

  • Page 1 Air Hose (I.D.) 1/4” (6.35 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 1.32 lbs (0.6 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-5555C-S-1603A-KLF...
  • Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: 1/4" AIR RATCHET WRENCH Model/ Serial No.: ST-5555C to which this declaration applies, complies with these normative documents: ...
  • Page 3 Foreword compressor and the tool. Use a 3 HP or larger 3.2 Torque Adjuster Sumake is a manufacturer and exporter of air compressor for each sander. You can adjust the torque by rotating the knob tools since established. We have devote all our which indicated by 1 to 6.
  • Page 4 ST-5555C 1/4" AIR RATCHET WRENCH PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5555C-01A Air Inlet (PT19) 5555C-22 Idler Gear Pin 5555C-01B Air Inlet (NPT18) 5555C-23 Idler Gear Plate 5555C-02 Housing 5555C-24 Spacer 5555C-03 Roll Pin 5555C-25 Clamp Nut...
  • Page 5 RATCHET WRENCH Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards Disconnect the assembly power tool for threaded fasteners from the energy supply before changing the inserted tool or accessory. Do not touch sockets or accessories during impacting, as this increases the risk of cuts, burns or vibration injuries.
  • Page 8 shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet.
