Sumake ST-66342-1 Manual

Sumake ST-66342-1 Manual

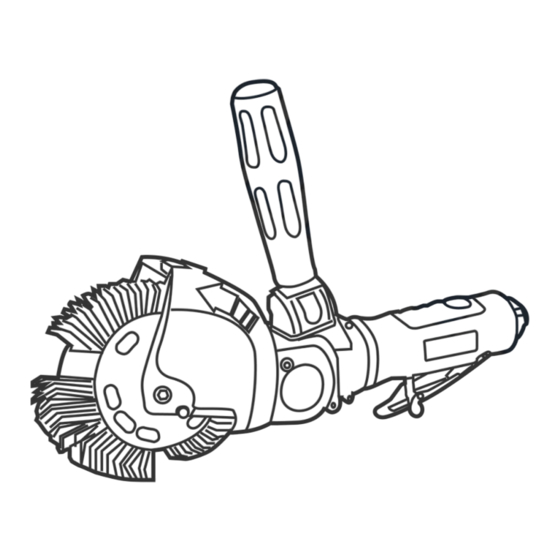

Non-vacuum remove-pro tool w/0.5mm wire wheel-medium bend

Advertisement

Quick Links

SUMAKE
Non-Vacuum Remove-Pro Tool
W/ 0.5mm Wire Wheel-Medium (Bend)
Specification:
Free Speed
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-66342-1
4090 r/min
10 CFM (283 L/min)
11" (280 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.47 lbs (1.12 kg)
Noise and Vibration:
Vibration
EN ISO 28927-1
Sound Pressure Level
Load:
1.98 m/s²
Sound power level
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
load: 86.4 dB(A)
protector at
environment
load: 97.4 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-66342-1-S-2102B-ST
Remark
wear ear
hearing!

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-66342-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumake ST-66342-1

  • Page 1 > 80 dB(A) due to Air Pressure 90 psi (6.3 bar) risk of impaired Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.47 lbs (1.12 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-66342-1-S-2102B-ST...
  • Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: NON-VACUUM REMOVE-PRO TOOL W/0.5MM WIRE WHEEL-MEDIUM (BEND) Model/ Serial No.:ST-66342-1 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 3 Trigger worn out or valve set damaged or Disassemble, repair and replace parts Trigger function normally broken Wrong size of stone or Wrong size for spindle of stone or collet of Chang spindle of stone or collet. Grinding stone can’t be used collet tool ST-66342-1-I-2009A-ST...
  • Page 4 ST-66342(W) NON-VACUUM REMOVE-PRO TOOL W/RUBBER ERASER (STRIPPING WHEEL) -LOW NOISE PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 66342-37 Screw 66342-01S Air Regulator Set [Incl. 1, 2, 3(2), 4] 66342-38 Plastic Housing 66342-40 Toothed Pulley 66342-02 O-Ring (P12) 66342-41 Key (3x13) 66342-03...
  • Page 5 ERASER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 5. Release the start and stop device in the case of an interruption of the energy supply. 6. Use only lubricants recommended by the manufacturer. 7. Personal protective safety glasses shall be used, suitable gloves and protective clothing are recommended 8.
  • Page 8 Specific safety instructions Warnings shall be given about any specific or unusual hazards associated with the use of the power tool. Such warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet.
