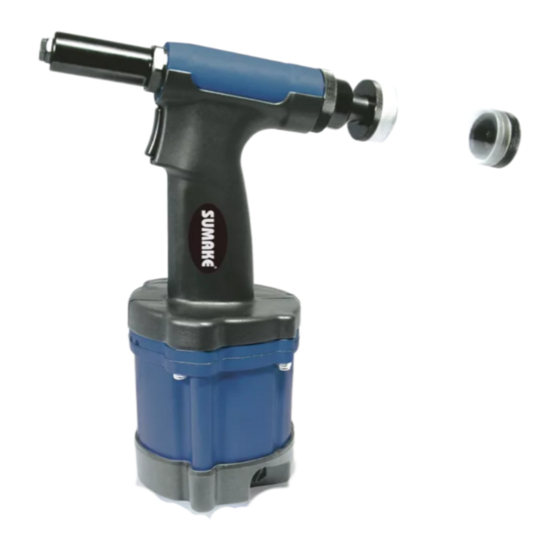

Sumake ST-66154 Instruction Manual

Sumake ST-66154 Instruction Manual

114" (6.4mm) air hydraulicblind rivets fastening riveter (vacuum type)

Advertisement

Quick Links

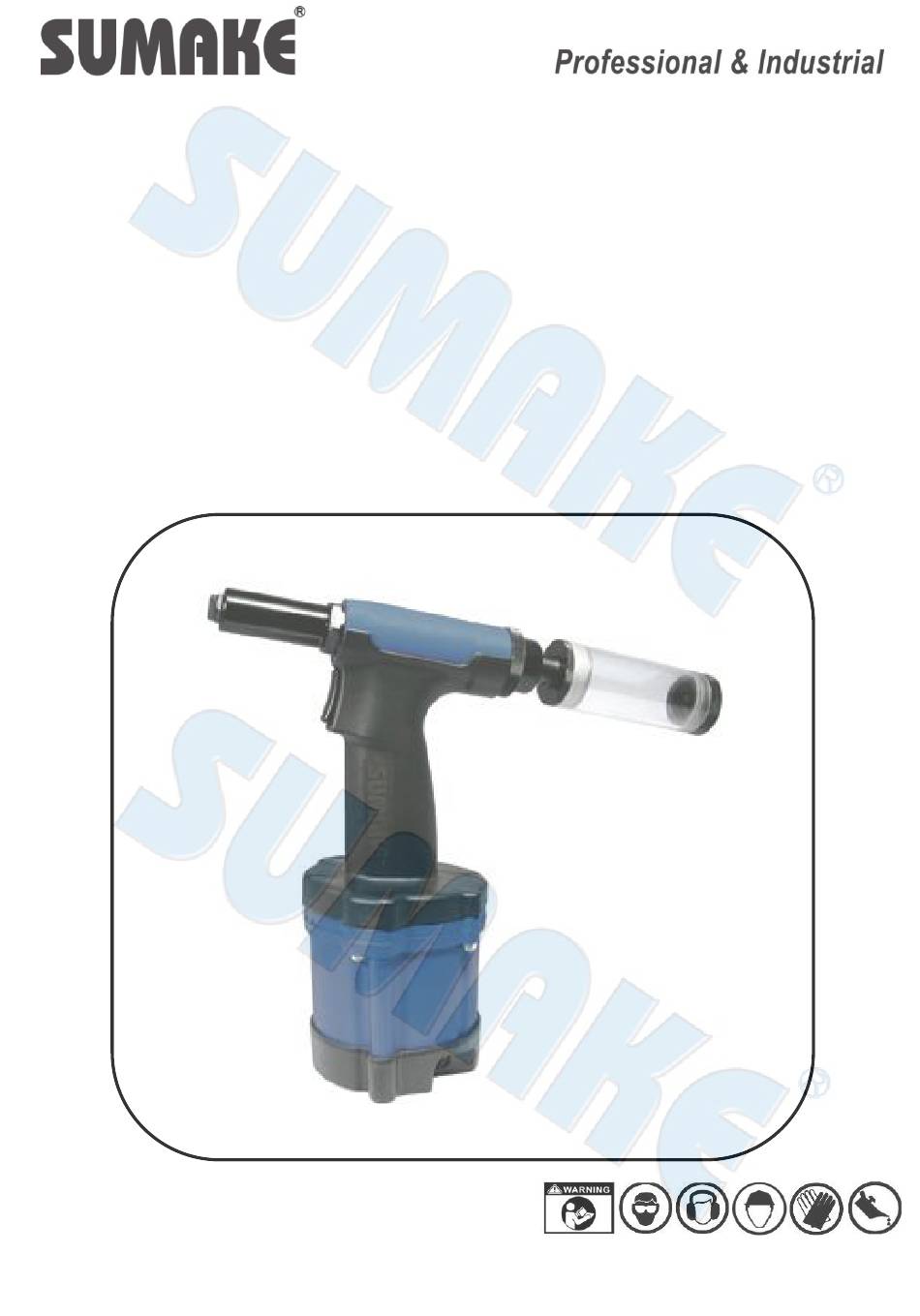

INSTRUCTION MANUAL
ST-66154
ITEM NO.:
1/4" (6.4MM) AIR HYDRAULICBLIND
RIVETS FASTENING RIVETER
(VACUUM TYPE)
ST-66154-I-1910C-CP
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-66154 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ST-66154

  • Page 1 INSTRUCTION MANUAL ST-66154 ITEM NO.: 1/4" (6.4MM) AIR HYDRAULICBLIND RIVETS FASTENING RIVETER (VACUUM TYPE) ST-66154-I-1910C-CP...
  • Page 2: Operation

    INSTRUCTION MANUAL OPERATION 1. When the Trigger (58) is depressed, the Valve Stem (39) is moved off its seat and the air enters the bottom of the Air Cylinder (39), forcing the Piston Assembly (32~35). As the Piston Assembly rises, the Plunger Rod (32) forces hydraulic fluid into the upper part of the Hydraulic Section (1), retracting the Hydraulic Plunger (4).
  • Page 3 MALFUNCTION & REPAIR A. Rivet mandrel is gripped by the jaws but the rivet can not be set and mandrel can not be broken CAUSE : Low air pressure or loss of hydraulic fluid. REMEDY : Increase air pressure to 7 bar ( 100 PSI ) maximum at tool. Make sure all fitting including Rear Gland (17) and Head (26) are tightened.
  • Page 4: Safety Rules

    SAFETY RULES Use only dry filtered air regulated to 6.3bar(90 PSI) on the tool inlet. Do not exceed maximum 7bar(100PSI). Disconnect the tool from the air supply before any assembly or disassembly Do not face the end of the Rear Gland (17) while operating the tool. Inspect the Hydraulic Section prior to use.
  • Page 7: Specification

    80 dB(A) due Air Hose (I.D.) to risk of Air Pressure 90 psi (6.3 bar) impaired Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 4.3 lbs (1.95 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-66154-S-2011F-CPF...
  • Page 8: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: 1/4"(6.4mm) AIR HYDRAULIC RIVETER (VACUUM TYPE) Model/ Serial No.:ST-66154 to which this declaration applies, complies with these normative documents: ...
  • Page 9 ST-66154 1/4" (6.4MM) AIR HYDRAULIC BLIND RIVETS FASTENING RIVETER ST-66154-P-2302K-CP...
  • Page 10 ST-66154 1/4" (6.4MM) AIR HYDRAULIC BLIND RIVETS FASTENING RIVETER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 66154-01A Hydraulic Section 66154-43 Inlet Plug 66154-02 O-Ring 66154-47A Set Screw 66154-03 Back-Up Ring 66154-49A 66154-04A Hydraulic Plunger 66154-50 Washer 66154-06...
  • Page 11 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 12 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 13 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
  • Page 14 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
