Sumake ST-66342W Manual

Sumake ST-66342W Manual

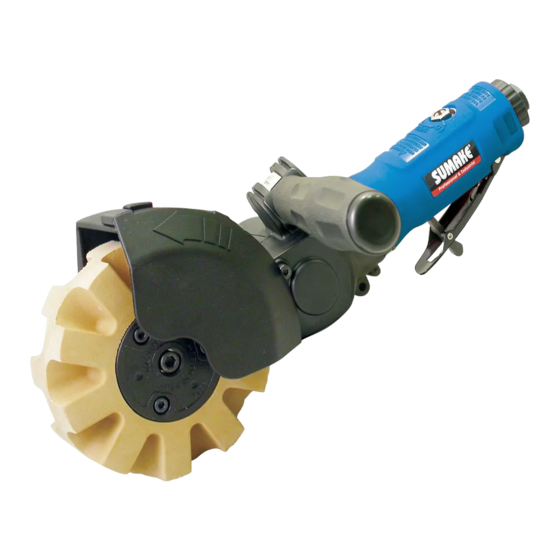

Non-vacuum remove-pro tool w/ stripping wheel

Advertisement

SUMAKE
Specification:
Free Speed
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
Non-Vacuum Remove-Pro Tool
W/ Stripping Wheel
4090 r/min
10 CFM (283 L/min)
11" (280 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.47 lbs (1.12 kg)
PNEUMATIC TOOLS
ST-66342W
Noise and Vibration:
Vibration
EN ISO 28927-3
Load:
0.4 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
load: 81 dB(A)
Sound power level
load: 92 dB(A)
Uncertainty
K= 3dB
²
ST-66342W-S-1408E-STF
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-66342W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ST-66342W

  • Page 1 > 80 dB(A) due to Air Pressure 90 psi (6.3 bar) risk of impaired Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.47 lbs (1.12 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-66342W-S-1408E-STF...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: NON-VACUUM REMOVE-PRO TOOL W/ STRIPPING WHEEL Model/ Serial No.:ST-66342W to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 3 There is no user serviceable part inside this tool. Sumake is a manufacturer and exporter of air mechanism, and may cause trouble. So, install an Please send the tool to a qualified personnel or our tools since established.
  • Page 4: Parts List

    ST-66342(W) NON-VACUUM REMOVE-PRO TOOL W/RUBBER ERASER (STRIPPING WHEEL) -LOW NOISE PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 66342-37 Screw 66342-01S Air Regulator Set [Incl. 1, 2, 3(2), 4] 66342-38 Plastic Housing 66342-40 Toothed Pulley 66342-02 O-Ring (P12) 66342-41 Key (3x13) 66342-03...
  • Page 5 ERASER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 5. Release the start and stop device in the case of an interruption of the energy supply. 6. Use only lubricants recommended by the manufacturer. 7. Personal protective safety glasses shall be used, suitable gloves and protective clothing are recommended 8.
  • Page 8: Specific Safety Instructions

    Specific safety instructions Warnings shall be given about any specific or unusual hazards associated with the use of the power tool. Such warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet.
