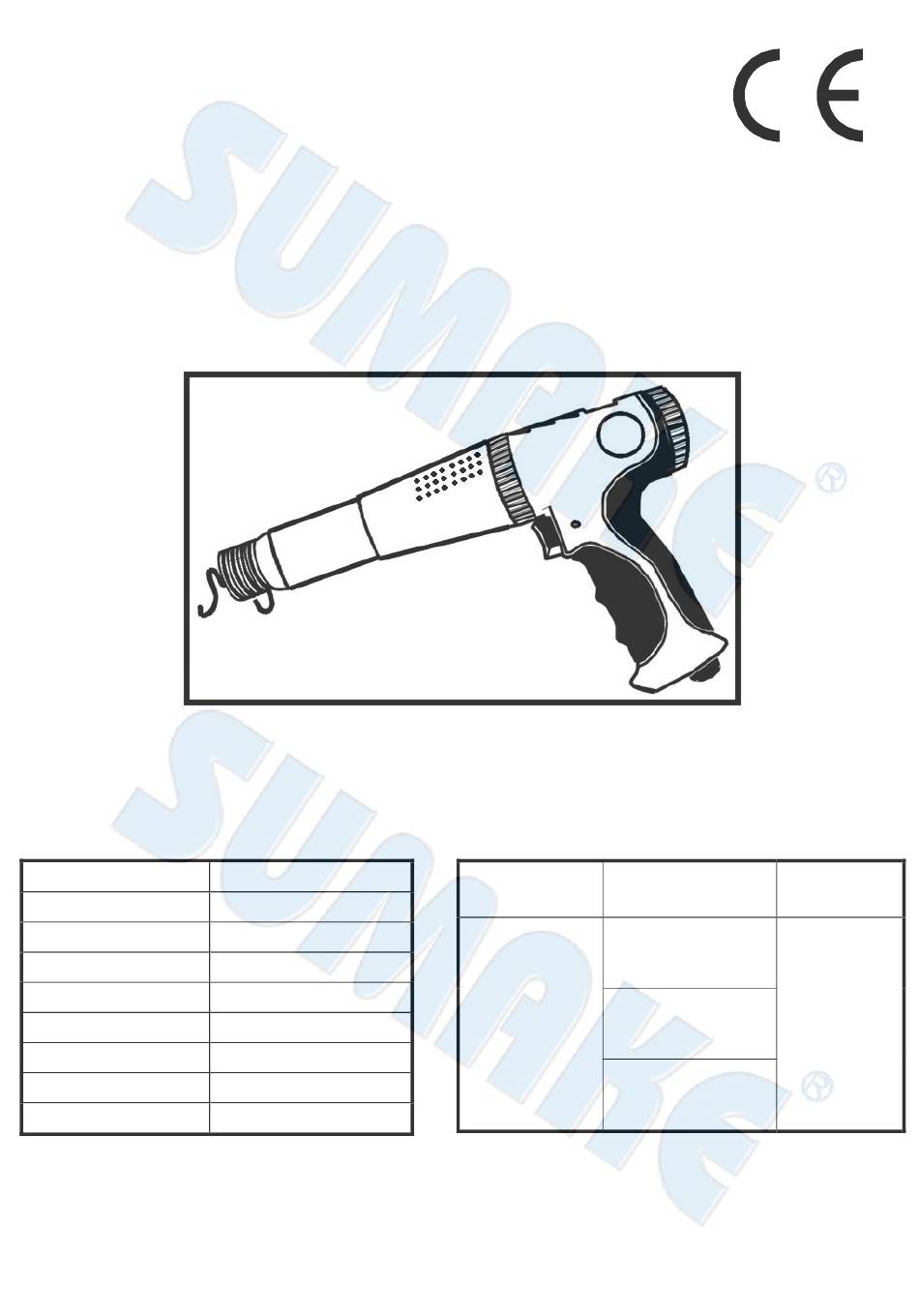

Sumake ST-2234 Quick Start Manual

250mm vibration-reduction air hammer

Advertisement

Quick Links

SUMAKE
250mm Vibration-Reduction Air Hammer
Specification:
Blow Per Minute
Bore Diameter
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-2234/R(H)
2,200 b.p.m.
3/4" (19 mm)
4-1/8" (103 mm)
14 CFM (396 L/min)
10.5" (260 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
4.2 lbs (1.9 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Sound Pressure Level
No Load:
8.3 m/s²
Sound power level
load: 109.7 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 98.7 dB(A)
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2234/R(H)-S-1308C-JIF
Remark
wear ear
hearing!

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-2234 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumake ST-2234

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 4.2 lbs (1.9 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2234/R(H)-S-1308C-JIF...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: 250mm COMPOSITE VIBRATION REDUCTION AIR HAMMER Model/ Serial No.:ST-2234/R(H) to which this declaration applies, complies with these normative documents: ...
  • Page 3: Operation Method

    Adjust regulator inlet No air flow Check air system and connections Low revolution rate Not enough air pressure Check air pressure Air leakage form the tool Check all connect points and efficiency repair Disk valve damaged Change the disk valve ST-2234-I-1303C-JI ...
  • Page 4: Parts List

    ST-2234/R(H) 250mm COMPOSITE VIBRATION-REDUCTION AIR HAMMER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 2234R-01 Cylinder (Round) - 10mm 2234-11 Spring 2234H-01 Cylinder (Hex) - 10mm 2234-12 Spring 2234H1-01 Cylinder (Hex) - 11mm 2234-13 Shim 2234-02 Piston 2234-14...
  • Page 5 HAMMER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
  • Page 8 7. Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to safeguard against possible hose-to-tool and hose-and-hose connection failure. 8. Do not exceed the maximum air pressure stated on the tool. 9.
