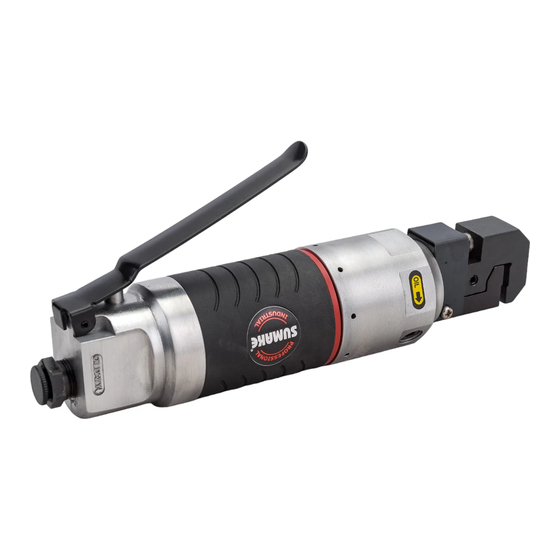

Air punch & flange

Advertisement

Quick Links

SUMAKE
Specification:
Capacity
Punch Hole
Punch Stroke
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Air Punch & Flange
ST-6652D
1.6 mm
Dia. 5 mm
4mm
10" (250 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.53 lbs (1.15 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
No Load:
3.97 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
Remark
EN ISO 15744
Please always
wear ear
load: 70.6 dB(A)
protector at
environment
noise level >
load: 81.6 dB(A)
80 dB(A) due
to risk of
Uncertainty
impaired
K= 3dB
hearing!
ST-6652D-S-2010C-D5F
