Sumake ST-2211 Quick Start Manual

Sumake ST-2211 Quick Start Manual

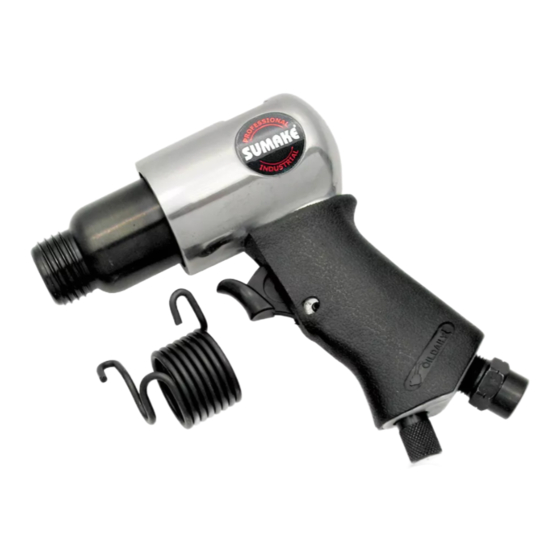

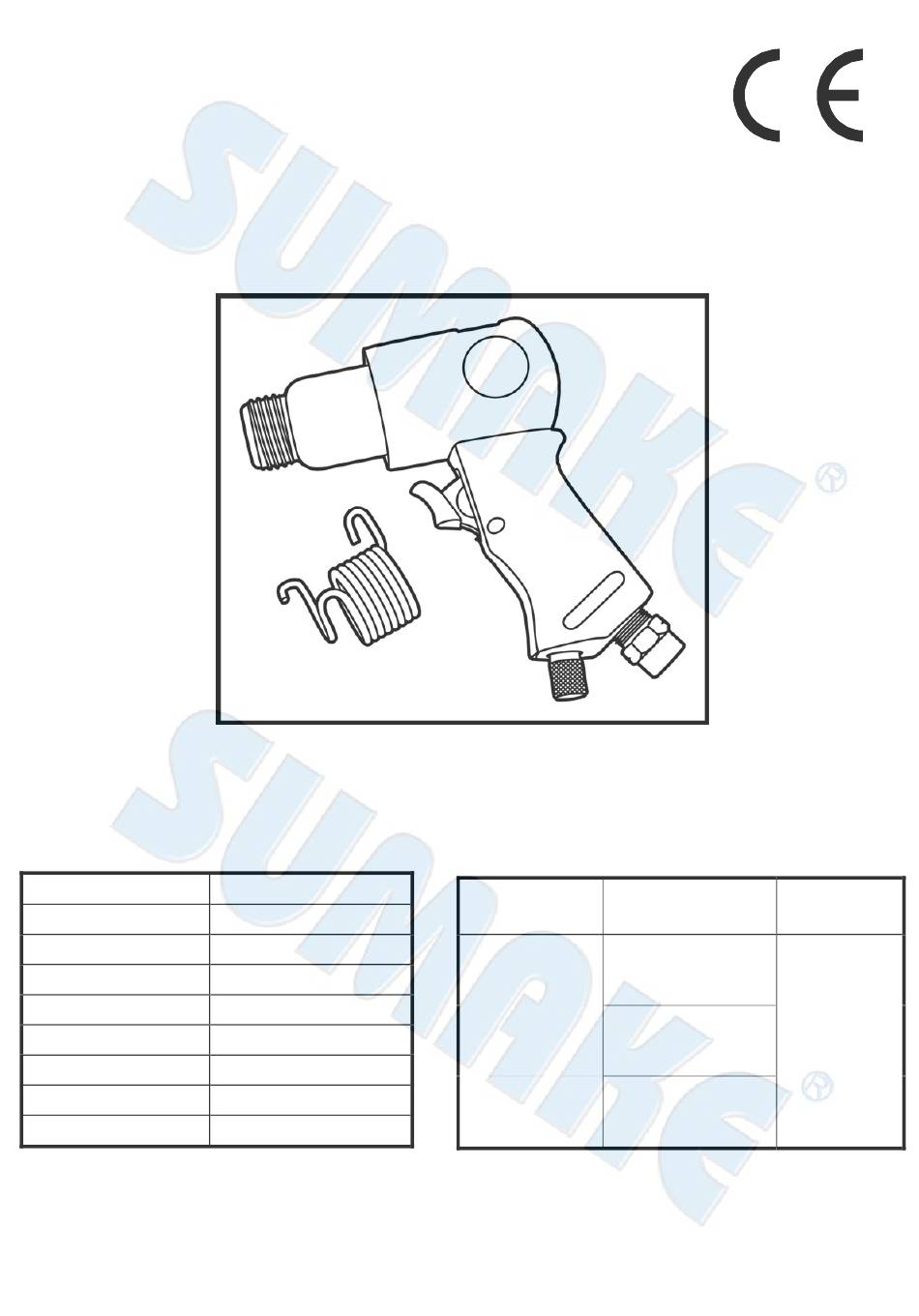

150mm air hammer

Advertisement

Quick Links

SUMAKE

Specification:

Blow Per Minute
Piston Diameter
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
150mm Air Hammer
ST-2211/R(H)
4,500 b.p.m.
3/4" (19.05 mm)
1-5/8" (41 mm)
14 CFM (396 L/min)
5-1/4" (160 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.8 lbs (1.3 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Sound Pressure Level
Load:
12.6 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 102 dB(A)
protector at
environment
noise level > 80
load: 113 dB(A)
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2211/R(H)-S-1603D-SCF
Remark
wear ear
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-2211 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumake ST-2211

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 2.8 lbs (1.3 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2211/R(H)-S-1603D-SCF...
  • Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: 150mm AIR HAMMER Model/ Serial No.:ST-2211/R(H) to which this declaration applies, complies with these normative documents: ...
  • Page 3 Application: It injects high efficiency into manual chipping, riveting, breaking of concrete and asphalt etc. Operation Method: Before starting work drain any water from the air tank and blow condensation from the air line. Drain compressor more frequently in hot humid weather. Always ensure air is turned off before installing or removing tools etc.
  • Page 4 ST-2211/R(H) 150MM AIR HAMMER ST-2210/R(H) 150MM AIR HAMMER, W/4PCE CHISELS PARTS LIST Parts No. Description Q'ty 2211-01 Retainer Spring 2211-02S Valve Seat Ass'y [Incl. 2, 3, 4, 5, 6] 2211-07 Trigger 2211-08 Dowel Pin 2211-09 Ball Seat 2211-10 Push Rod 2211-10A O-Ring (P2x1.5)
  • Page 5 HAMMER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
  • Page 8 7. Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to safeguard against possible hose-to-tool and hose-and-hose connection failure. 8. Do not exceed the maximum air pressure stated on the tool. 9.
