Page 3
In case of sale or transfer, give this manual to the new owner. The illustrations in this manual are presented for your reference according to the latest information available at the moment of printing. ANDERSON GROUP reserves the right to modify its machines without advance notice.
Table of Contents 1 Anderson limited warranty ..................4 2 Safety ........................7 Safe Operators ....................... 7 Danger Zone ......................7 Secure Attachment to the Tractor ................7 Dangerous Situations ..................... 7 Prevention ......................7 Safe Maintenance and Repair .................. 7 Fuel ........................
Page 5
- Product model and serial number; - Purchase date and invoice number; - Dealer name, address, and telephone number and salesperson name; - Precise and detailed description of your problem. ANDERSON GROUP Address: 5125 de la Plaisance Chesterville (Québec) CANADA G0P 1J0 Email Service: support@grpanderson.com...
In no event will Anderson be liable for any incidental or consequential damages or injuries, including but not limited to loss of profits, rental of substitute equipment, or other commercial or personal loss or damages arising as a result of a fundamental breach or breach of a fundamental term.
Page 7
The fundamental responsibility of warranty is to correct defects in material and workmanship of the products sold by Group Anderson Inc. (hereafter called ‘’Anderson’’). This outline is intended to assist you in awareness of Anderson’s Warranty Policies and to assure that you obtain the best service possible for your Anderson machine. ...
Page 8
Anderson’s Responsibilities: In the event that parts must be shipped from Anderson, freight will be paid by Anderson and will be shipped by the most economical means to arrive in the shortest possible time. Air, Next Day Air, Priority and other special shipment methods requested by the Dealer will be at the Customer’s expense.
2 Safety Your ANDERSON bale wrapper was designed to reduce to a minimum the risks to the operator. However, it must be used only for the work it was designed for. Additionally, since it includes a powerful hydraulic system, moving metal parts, and a gasoline engine and all these elements can cause serious injury to humans or animals, it is strongly recommended to read and to closely adhere to the following guidelines.
tighten the tank cap and wipe away any spilled fuel. Never add gasoline when the engine is hot or operating. Have a working fire extinguisher within arm’s reach near the baling site. Hydraulic Oil Any leak of pressurized oil can cause serious injuries. Do not use your hands to locate a leak, but rather an object such as a piece of cardboard.
End of Operation If you will not use the bale wrapper again for a long period of time, do not forget to close the engine fuel valve (1), located beneath the choke on the right side of the engine (Figure 2.2). Figure 2.2 Closing the fuel valve.

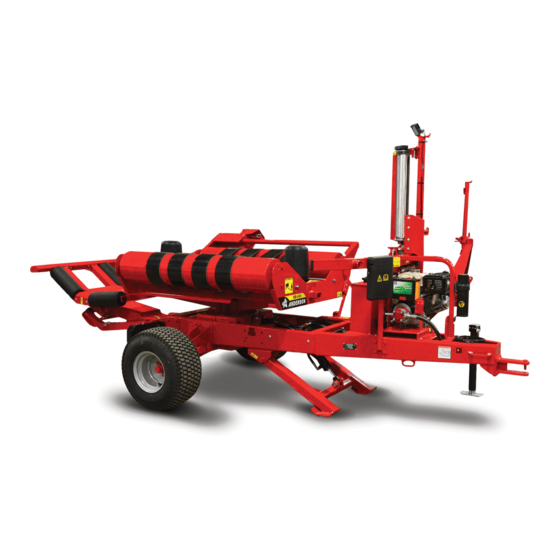

3 General Characteristics and Specifications Congratulations! You are now the owner of an ANDERSON bale wrapper, a high-quality machine designed for the separate storage of round bales of up to 5 feet (1.5m) in diameter. This agricultural machine is carefully manufactured by our company to give you many years of reliable performance.
General Specifications Figure 3.2 Exterior dimensions for the base model Figure 3.3 Exterior dimensions for model with optional Dimensions and Weight Dimensions and Weight for for base model model with optional 187.5 po 219.68 po Length (A) Length (D) (4,77m) (4.58m) 89 po 89 po...
4 Adjustment Procedures Verifications Before Each Use Check the level hydraulic oil in the tank of your unit. Check the oil level in the Honda engine, if applicable, as well as the need for fuel. Open the fuel valve and check the engine air filter. If necessary, lubricate the machine well after each day of use.
Follow the diagram (Figure 4.2) to unroll the start of the film between the rubber roller and an aluminium roller, then around the other aluminium roller. Open the film cutter with the lever and place it at the edge of the film. Close the clamp of the film cutter to hold it in place. Figure 4.2 Direction of film unwinding Avoid leaving the plastic film rolls in the sun for a long period of time before using them.
Adjusting the Plastic Film Cutter First check the condition of the stainless steel blade (1) in the diagram of (Figure 4.4) and change it as necessary. Figure 4.4 Plastic film cutter blade Additionally, by pushing the plastic in the direction of the blade, the fingers normally push the rubber stopper to the adjustment bolt in the back.
Warning ! Grease Gun Lubrication Your ANDERSON bale wrapper must be lubricated with a grease gun in the places indicated by the sticker (Figure 6.1). Figure 6.1 Grease gun lubrication Note: The use of synthetic grease is highly recommended...
Page 19
Central axle of turntable (1 on the top) Pivots of tilting table (2) Axles of the tilting cylinder...
Page 20
Axles of the unloading platform cylinder Pivot of the unloading platform (4)* Front and rear stabilizers (2 grease cups each) and cylinder axles (2each)
Page 21
Bearings of the two feed rollers of the belts (1 on each end, total of 4)
Other Lubrication Points The power transmission chains and other moving parts of the machine must be oiled or greased regularly or every 50 hours. This also applies to the 2 toothed wheels of the plastic film stretcher. Figure 6.2 Other lubrication 1 Figure 6.3 Other lubrication 2 (through the hole in the guard)
Cleaning and Other Maintenance Pay particular attention to the cleanliness of the plastic film cutter system. An accumulation of debris (hay, dust, string, etc.) can reduce its functionality. Regularly check the cutting condition of the blade. Always keep the rollers and the gears of the plastic film stretcher free of all residue to prevent these parts from jamming, breaking, or tearing the plastic film.
7 Troubleshooting: Problems and Solutions Before calling a technician, examine your machine and consult the table below to find a solution. Attempt to isolate the problem to find out if it is a hydraulic or electrical problem by using the manual functions on the hydraulic valve. If you are still not able to solve the problem yourself, ask for help from the customer service department of your agricultural dealer.
Page 25
Check if the roll installed was damaged to begin with and replace it if necessary. Check if hay or something else is inhibiting or blocking the The plastic film breaks, plastic film stretcher. Remove the object and clean the film develops holes, or tears stretcher.
8 Optional Equipment Stabilizers Activated by hydraulic cylinders and controlled by manual controls at the front of the machine, these two pieces of equipment improve the stability of the bale wrapper. They are equipped with security valves (lock valves) to prevent inadvertent movement of stabilizers or the feet from collapsing, whether the machine is turned on or not.
Page 27
Figure 8.2 Bale unloading platform D This optional unloading ramp makes it possible to gently discharge wrapped bales behind the bale wrapper. This system is composed of a rigid platform, a hydraulic cylinder, and a maintenance-free nitrogen cylinder. Bale Unloading Platform (D3) Figure 8.3 Bale unloading platform D3 This optional equipment makes it possible to bring the bales to a vertical position and set them down on the flat side.
Page 28
Installation of the three position unloading platform (D3) Here are the steps to install the unloading platform D3 from the unloading platform D : Installation of the foot Sand the shaft. Slide the foot on the shaft and lock in place with the linchpin. (1).
Page 29
Place the cone shaped roller on the same side as the foot as you will be bumping the bale to the opposite side. This procedure is for if you are dropping the bale to the left side. The same procedure is used when dumping to the right side but the foot and cone roller will be placed on the other side of the machine.
Figure 8.4 Accumulator of the unloading arm If using a tractor for this procedure we recommend that you put a relief valve between the wrapper and the tractor. This way you can fully open the oil from the tractor and regulate it with the relief valve.
Page 31

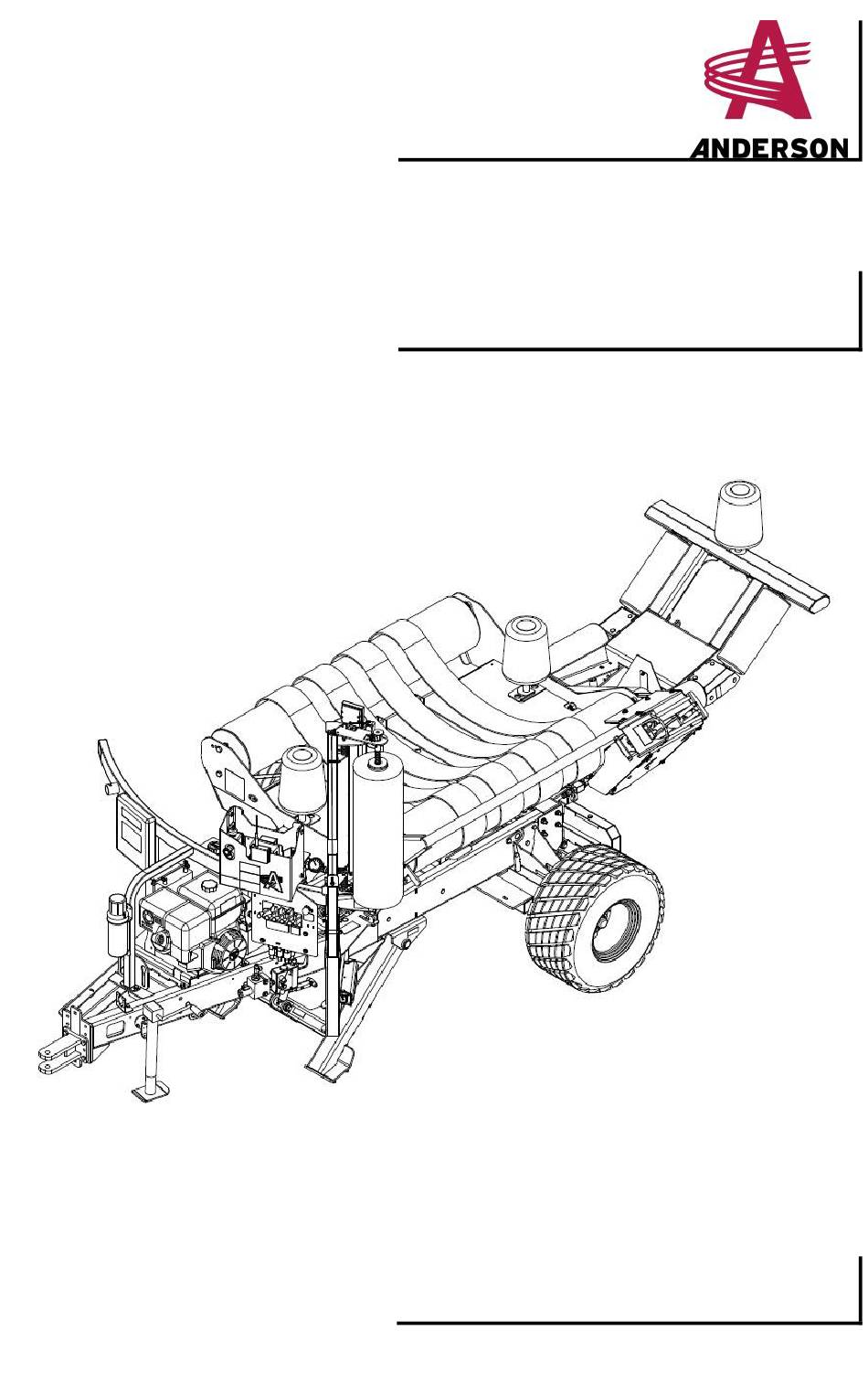

Parts manual ROUND BALE WRAPPER 680HS ALWAYS KEEP THIS MANUAL WITH THE WRAPPER...
Page 33
20 – Decals For any parts order, please use the parts manual to find the item(s) you need and contact your dealer to order it or contact us directly at : ANDERSON GROUP 5125 de la Plaisance Chesterville (Québec) CANADA G0P 1J0...
Page 34
501057 HEX HALF NUT GR5 1-8 Z 224004 HOSE CLAMP 500445 CARRIAGE BOLT GR5 3/8-16 X 1 3/4 Z 500017 HEX BOLT GR5 1/4-20 X 2 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 35
TONGUE PARTS LIST ITEM PART DESCRIPTION NOTE 501032 HEX NYLON LOCKNUT GR5 3/8-16 Z 500084 HEX BOLT GR5 3/8-16 X 1 322457 JACK 502045 LOCK WASHER 3/8 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 36
ROLLING BEARING CAGE LM48510 303034 BEARING LM48548 303077 RADIAL SHAFT SEAL 2500-2 1-2 X 1 3-4 -A 481000 DUST CAP 507010 WHEEL BOLT 1/2-20 X 1 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
DESCRIPTION NOTE 325107 325112 SUPPORT ROLLER 303045 BEARING 320006 RETAINING RING 320039 HITCH PIN 5/32 X 3 5/16 223026 ROLLING SUPPORT STAND SHAFT 223049 BALE GUIDE ROLLER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 38
LOCK WASHER 5/16 Z 502014 FLAT WASHER 5/16 Z SEE NEXT PAGE VALVE ASSEMBLY SEE NEXT PAGE VALVE ASSEMBLY 500084 HEX BOLT GR5 3/8-16 X 1 502045 LOCK WASHER 3/8 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 39
PARTS LIST ITEM PART DESCRIPTION NOTE 465007 HYDRAULIC BLOCK VALVE 451281 6 M.JIC - 10 M.ORB 45° 451356 PLUG ORB 10 451266 8 M.JIC - 10 M.ORB 90° Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 40
FLAT WASHER 1/4 Z 501030 HEX NYLON LOCKNUT GR5 1/4-20 Z 500016 HEX BOLT GR5 1/4-20 X 2 1/4 451172 6 M JIC - 8 M ORB Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
HEX NYLON LOCKNUT GR5 3/8-16 Z 501024 HEX FLANGE NUT GR2 1/2-13 Z 500099 HEX BOLT GR5 3/8-16 X 3 224262 DUMPING TABLE SAFTY PLATE 320023 LOCK PIN 5/16 X 2 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 42
6 - STRETCHER POST Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 43
319798 WORK SPOTLIGHT 304007 SPRING 224079 PIN FOR RUBBER ROLL 224077-1 PIN FOR ROLL HOLDER 500084 HEX BOLT GR5 3/8-16 X 1 502014 FLAT WASHER 5/16 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
7 - STRETCHER DETAIL B Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 45
LOCK WASHER WITH 315056-1 507003 HEX SOCKET SET SCREW CUP 1/4-20 X 1/2 500042 HEX BOLT GR5 5/16-18 X 3/4 501021 HEX FLANGE NUT GR2 5/16-18 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 46
501022 HEX FLANGE NUT GR2 3/8-16 Z 501020 HEX FLANGE NUT GR2 1/4-20 Z 500004 HEX BOLT GR5 1/4-20 X 3/4 451190 12 M.JIC - 12 M.ORB Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
15 - DROP OFF 29.1 29.4 29.3 29.2 29.3 20 26 29.5 21.9 21.7 21.8 21.3 21.1 21.2 22.3 21.4 22.2 21.6 21.5 22.1 Groupe Anderson, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 61
HEX FLANGE NUT GR2 3/8-16 Z 223188 ROLLER SUPPORT 29.1 325107 29.2 325112 PLASTIC CONE 29.3 303045 BEARING 1654-Z 29.4 320006 RETAINING RING 29.5 320039 HITCH PIN 3/16 Groupe Anderson, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 62
223225 580-680 LEFT LIGHT PROTECTOR 500180 HEX BOLT GR5 1/2-13 X 2 900562 CONTOUR LIGHT 900563 REFLECTOR 234223-1 580-680 STANDARD LIGHT KIT 315111 580-680 TRAILER PLUG Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
Page 63
18 - 2ND STRETCHER OPTION Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 64
18 - OPTION DEUXIÈME TENSIONNEUR DETAIL D 36 32 37 Groupe Anderson, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 65
LINK 2 320031 LOCK PIN 223229 SPACER 2 223216 LINK 4 223197 LINK 1 (SECOND.TENS.680) 223217 LINK ATTACHMENT 500179 HEX BOLT GR5 1/2-13 X 1 3/4 222085 SPACER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 66
HEX BOLT GR5 1/2-13 X 1 1/2 501024 HEX FLANGE NUT GR2 1/2-13 Z 500254 HEX BOLT GR5 5/8-11 X 4 501035 HEX NYLON LOCKNUT GR5 5/8-11 Z 502008 FLAT WASHER 5/8 Z Groupe Anderson, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 68
18 - 2ND STRETCHER OPTION 13.6 Groupe Anderson, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 69
LOCK WASHER 3/8 322299 GREASE FITTING 223205-1 ARM DEVIATOR 224263 DEVIATOR 500442 CARRIAGE BOLT GR5 3/8-16 X 1 Z 481016 PLASTIC PLUG 501022 HEX FLANGE NUT GR2 3/8-16 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 70
18 - 2ND STRETCHER OPTION Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 71
FLAT WASHER 1/4 Z 500098 HEX BOLT GR5 3/8-16 X 2 3/4 224261 PLASTIC SUPPORT LOCK 304063 SPRING 325181 CABLE 320027 RETAINNING RING INT. 1 3/4 224004 HOSE CLAMP Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 72
PARTS LIST ITEM PART DESCRIPTION NOTE 224260 WASHER 224077-1 320027 RETAINNING RING INT. 1 3/4 320113 RETAINNING RING EXT. 3/4 B 303012 BEARING 6204RS-750 224082 PLASTIC SUPPORT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 74
CYLINDRE DES PATTES AVANT CUT AND HOLD CYLINDER CYLINDRE DES PATTES ARRIÈRE ROTARY TABLE MOTOR DIVERTER VALVE TILTING TABLE FRONT OUTRIGGER CYLINDER REAR OUTRIGGER CYLINDER Groupe Anderson / Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@anderson-equipment.com...
Page 75
09-51 223165-1 09-23 223123-1 09-52 223167-1 09-24 223166-1 09-53B 223175-1 09-11B 223254 09-25B 223255 09-25C 223256 09-54 223269 09-25 223125 09-26 223164 09-27 223176-1 Groupe Anderson / Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@anderson-equipment.com...
Page 76
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 77
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 78
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 79
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 80
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 81
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 82
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 83
20 - DECALS / DÉCALQUES SECTION AF-AF SECTION AE-AE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
Page 84
20 - DECALS / DÉCALQUES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
