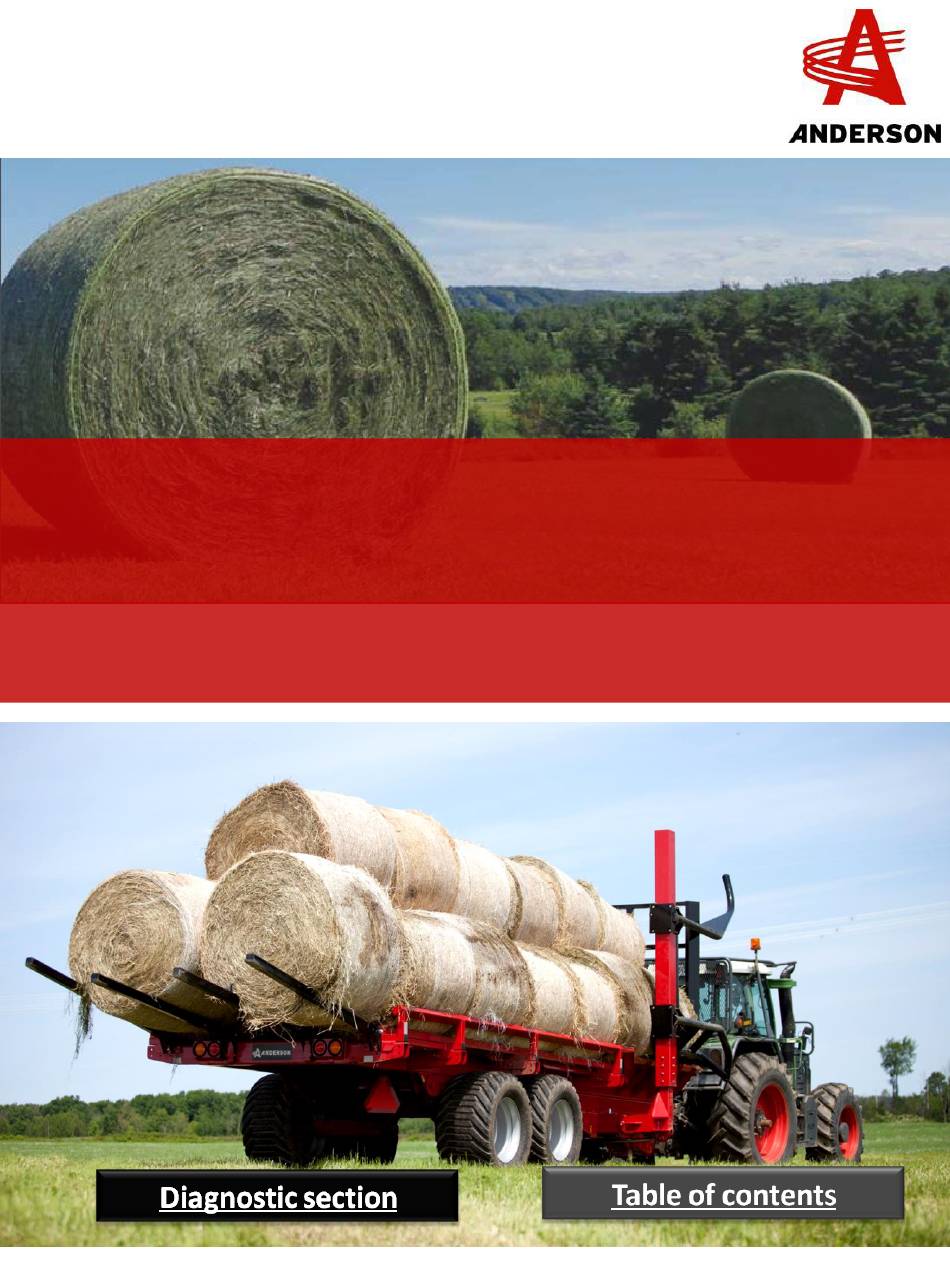

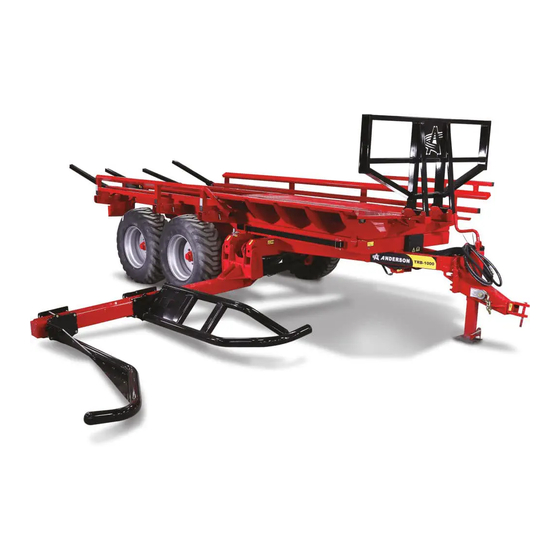

DIAGNOSTIC GUIDE FOR BALE CARRIER
When navigating the pages you will see buttons to send you to the
corresponding procedures / sections of the troubleshooting table. You can also
use the shortcut to the table of contents (procedures) to obtain a specific
procedure. At any time you may click on the Anderson logo at the top of any
page to return to this page.
Advertisement
Table of Contents
Related Manuals for Anderson TRB1000
Summary of Contents for Anderson TRB1000
- Page 1 / sections of the troubleshooting table. You can also use the shortcut to the table of contents (procedures) to obtain a specific procedure. At any time you may click on the Anderson logo at the top of any page to return to this page.
- Page 2 Bale carrier Diagnostic procedure Select model of bale carrier TRB1000 Round bale TRB1400 TRB2000...
- Page 3 Bale carrier Diagnostic procedure Model(s) : TRB1000, TRB1400, TRB2000 TRB1000 TRB1400 TRB2000 Problem with Problem with Problem with unloading loading arm pusher platform Click here to Click here to Click here to continue continue continue Recommended oil flow is 10 GPM (45 L/min)
- Page 4 Bale carrier Diagnostic procedure Model(s) : TRB1000, TRB1400, TRB2000 Problem with loading arm TRB2000 only: The loading arm Problem with does not move. the loading arm extension. Click here to continue TRB2000 with The hydraulic The U-shaped Lack of grease joystick only: hoses aren’t...
- Page 5 Bale carrier Diagnostic procedure Model(s) : TRB1000, TRB1400, TRB2000 The loading arm does not move. TRB2000 with joystick only: Verify if the Problem with Verify if the Verify if the warning the limit computer is soleneoid indicator lights switch or the turned on.
- Page 6 Bale carrier Diagnostic procedure Model(s) : TRB2000 Problem with the loading arm extension TRB 2000 with TRB2000 joystick without joystick The loading arm The loading arm The loading arm extension does does not retract goes down but not move. but stops to 45°. does not retract.
- Page 7 Bale carrier Diagnostic procedure Model(s) : TRB1000, TRB1400, TRB2000 Problem with the unloading platform The unloading The unloading platform does not platform does move. not move. REF# A-TRB-008 Unloading of the TRB The loading The hydraulic The diverter arm is too hoses aren’t...
- Page 8 Bale carrier Diagnostic procedure Model(s) : TRB1000, TRB1400, TRB2000 Problem with the pusher The bales are not The pusher does pushed far enough not move REF# A-TRB-009 Adjustment of the stoke limiter The diverter The hydraulic The loading TRB2000 with valve is hoses aren’t...
- Page 9 Remorques autochargeuses Procédure de diagnostique Modèle(s) : TRB2000 avec joystick seulement The pusher does not move TRB2000 with joystick only: Problem with Verify if the Verify if the Verify if the the limit soleneoid valve computer is warning indicator switch or the is not jammed.
-
Page 10: Table Of Contents
Table of contents Verification of computer A-TRB-001 Verification of the valve connections A-TRB-002 Verification of the spool A-TRB-003 Remove the locking pin of the loading arm A-TRB-004 Adjustment of the limit switch A-TRB-005 Adjustment of the pressure switch A-TRB-006 Verification of the diverter valve A-TRB-007 Unloading of the TRB A-TRB-008... -
Page 11: Verification Of Computer
PROCEDURE REF# A-TRB-001 Verification of computer TRB2000 with joystick only If you are not able to activate the functions of the joystick, check if there’s a steady light on the controller. This light, located on the bottom of the grey box (photo 1), indicates a power supply to the controller. -
Page 12: Verification Of The Valve Connections
PROCEDURE REF# A-TRB-002 Verification of the valve connections TRB2000 with joystick only If you are not able to activate one or many functions of the joystick, check if the valve received a signal from the controller. When you activate a function, there’s a light on the valve (Photo 1). -
Page 13: Verification Of The Spool
PROCEDURE REF# A-TRB-003 Verification of the spool TRB2000 with joystick only If you can see a light on the valve but no functions are working, the spool must be jammed in the valve. You can try to unjam it by pushing the spool with a screwdriver while you activate the function with the joystick (Photo 1). -
Page 14: Remove The Locking Pin Of The Loading Arm
PROCEDURE REF# A-TRB-004 Remove the locking pin of the loading arm If the loading arm cannot be activated, you may have to remove the locking pin. Do not forget to store the pin in its storage place, so you avoid to lose it. The pin is different from one model to another, the photo below has been taken from a TRB2000. -
Page 15: Adjustment Of The Limit Switch
PROCEDURE REF# A-TRB-005 Adjustment of the limit switch TRB2000 with joystick only A limit switch is installed close to the pivot of the loading arm. A welded cam on the arm varies the position of the device which tells the controller the position at which the arm is (less than 45 °... - Page 16 PROCEDURE REF# A-TRB-005 Adjustment of the limit switch TRB2000 with joystick only Photo 2 Photo 3 The limit switch is located behind the guard...
-
Page 17: Adjustment Of The Pressure Switch
PROCEDURE REF# A-TRB-006 Adjustment of the pressure switch TRB2000 with joystick only Problem with telescopic loading arm: The arm retracts but stop at The arm goes down but 45° doesn’t retract Pressure switch Pressure switch located on the located on the inside frame inside frame 1- Unlock the pressure switch with... -
Page 18: Verification Of The Diverter Valve
PROCEDURE REF# A-TRB-007 Verification of the diverter valve A diverter valve is installed on the trailer to prevent the unloading table and the pusher ( TRB2000 the unloading table only) to be activated when the arm is over 45 ° from the ground. A welded cam on the arm varies the position of the diverter valve. -
Page 19: Unloading Of The Trb
PROCEDURE REF# A-TRB-008 Unloading of the TRB To unload the trailer TRB, it is very important to choose a level ground and ensure there are no obstacles such as electric power or telephone lines. Bring the trailer to a complete stop where you want to unload the bales. Turn the control to raise the platform. -
Page 20: Adjustment Of The Stroke Limiter
PROCEDURE REF# A-TRB-009 Adjustment of the stroke limiter The pusher of the trailer TRB has a stroke limiter which allows loading 1.2m bales (4 ft) or 1.5 m (5 ft) in length (see Figure 4.4). The picture # 1 shows the position of the stroke limiter when carrying 1.2m bales (4 ft) long and the picture # 2 shows the positioning of the stroke limiter for transporting bales 1.5m (5 ft) length. -
Page 21: Adjustment Of The Trb Fork
PROCEDURE REF# A-TRB-010 Adjustment of the TRB fork It is important to adjust the fork of the loading arm to support the bales diameter that will be loaded. First, position the inner fork to the first hole. The suggested width is the diameter of the bale minus 14 inches.
