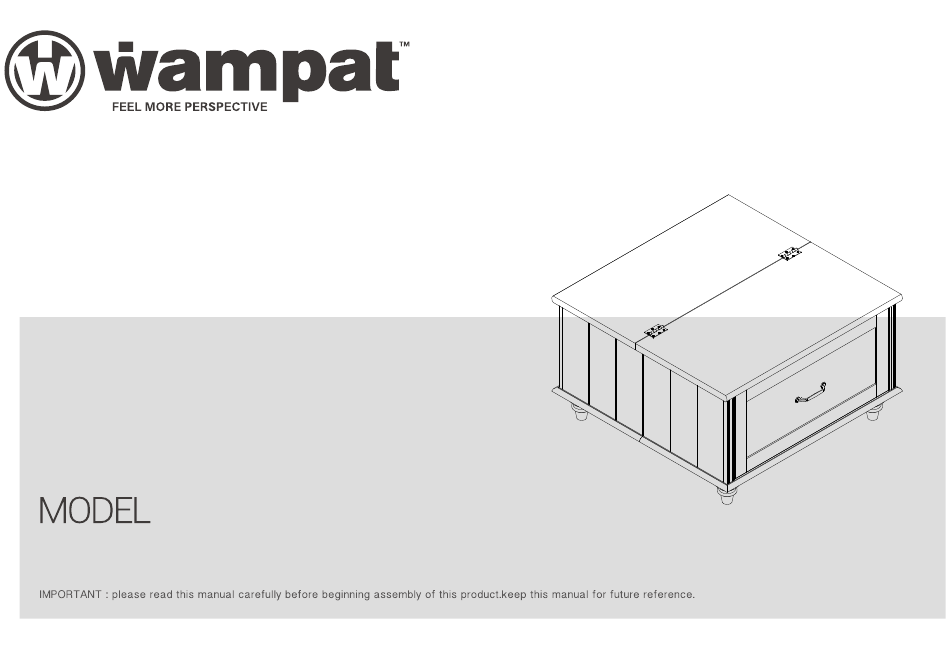

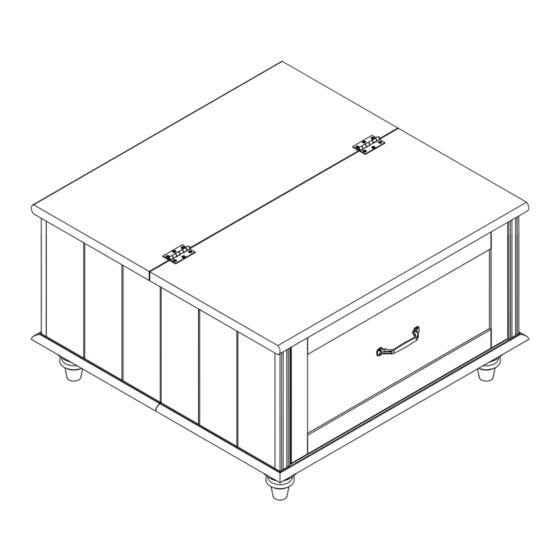

- Page 1 Assembly Instructions W02F2125W...
- Page 4 ●The provided glue(H) is to secure When first inserting dowels, locate the wood dowels(B) in place . Cam bolt Wooden dowel Wooden dowel Cam lock appropriate hole for the dowel , place a Ø8x40mm Ø6x30mm Ø6x35mm Ø15x9mm small amount of glue in the hole and insert the dowel .
- Page 5 x 12 x 10 · Screw cam bolts(C) into panels(5,6). · Insert dowels(B) into panels(5,6). ３...
- Page 6 x 18 · Insert dowels(B) into panels(7,9,10).
- Page 7 2 Person Task · Attach panels (7,9,10) to panel(5). · Insert and secure cam locks( D) to panels (7,9,10) to lock it.
- Page 8 2 Person Task · Attach panels(7,9,10) to panel(6). · Insert and secure cam locks(D) to panels(7,9,10) to lock it.
- Page 9 2 Person Task · Screw cam bolts(C) into panel(1). x 10 x 10 · Attach panels (5,6,7,9) to panel( 1). · Insert and secure cam locks( D) to panel s(5,6,7,9) to lock it.
- Page 10 · Insert dowels(A) into panel(4). · Insert parts(M) into panel(4) correctly. · Screw cam bolts(L) into panel(4).
- Page 11 · Attach panel( 3) to panel(4). · Insert and secure cam locks( D) to panel( 3) to lock it.
- Page 12 x 14 · Attach panels (3,4) to panels (5,6,9,10) with screws (G).
- Page 13 · Attach legs(8) to panels( 3 ,4) . · Stick the skid pads( ) on the bottom of the legs(8).
- Page 14 x 12 · Screw parts (O) to panels (1,2) using part (Q). · Stick stickers (E) on legs.
- Page 15 ·Attach parts (N2) to panel (2) using screws (P). ·Attach parts (N1) to panel (5) using screws (P). ·Attach parts (N1) to parts (N2) with parts (N3). ·Before installing, split N1,N2, N3,as shown in the figure · Attach parts (K) to panels (10) with bolts ( J) correctly.
- Page 16 · Screw cam bolts(C) into panel(12). · Insert dowels(B) into panels(12,13,14).
- Page 17 · Attach panel(16) to panel(12). · Insert and secure cam locks(D) to panel(16) to lock it. · Attach panel (12) to panels (13,14) with screws (F). · Carefully slide panel (15) into place along the bottom of the assembly.
- Page 18 · Screw cam bolts(C) into panel(11). · Attach parts (K) to panels (11) with bolts (J) correctly.
- Page 19 · Attach panel(11) to panel(13,14,16). · Insert and secure cam locks(D) to panel(13,14,16) to lock it.
- Page 20 · Stick stickers (E) on cam locks (D). x 32 Slider arm Slider bracket · Assembled the drawers as per diagram Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm.
