- Page 1 HDMI 2.0 ARC Extender over HDBT 4KEX70-ARC-H2 User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................2 Panel .............................. 3 Transmitter......................... 3 Receiver..........................4 Installation and Application................... 5 Brackets Installation ......................... 5 Application ..........................5 Audio DIP Switch Control ..................6 ARC Mode ............................ -
Page 3: Introduction

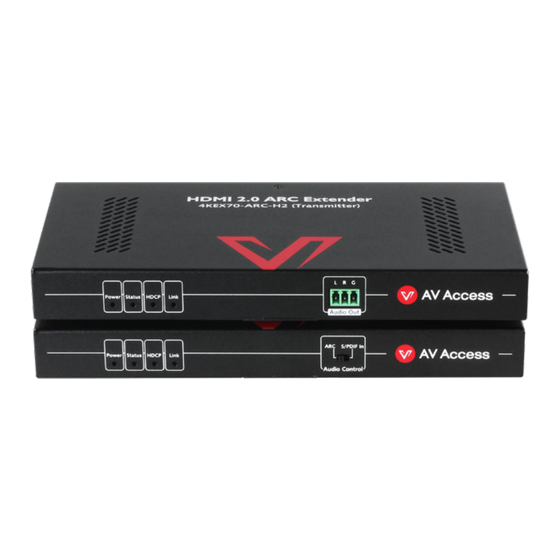

Introduction Introduction Overview 4KEX70-ARC-H2 is an HDBaseT Extender. It supports 4K@60 4:4:4 with HDR and HDCP 2.2 compliant, offers the distribution of uncompressed UHD video, audio, power, and IR together up to 40m/131ft over a single Cat X cable. By the DIP switch of Audio Output on the receiver, it’s able to configure the ARC channel feed by TV (with ARC support), or auxiliary S/PDIF Input port. -
Page 4: Panel
Introduction Panel Transmitter Front Panel Name Description ON: The transmitter is powered on. POWER LED OFF: The transmitter is powered off. Flashing Slowly: The transmitter is working properly. STATUS LED OFF: The transmitter is not working properly. ON: HDCP content is being transmitted. Blinking: Non-HDCP content is being transmitted. -
Page 5: Receiver
Introduction Receiver Front Panel 1 2 3 Name Description ON: The receiver is powered on. Power LED OFF: The receiver is powered off. Flashing Slowly: The receiver is working properly. Status LED OFF: The receiver is not working properly. ON: HDCP-protected content is being transmitted. Flashing Quickly: Non-HDCP content is being HDCP LED transmitted. -
Page 6: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure the device is disconnected from the power source. Remove the four screws that secure the side panels to the transmitter/receiver (see figure 1). Position and install the mounting brackets with the four mounting screws provided (see figure 2). -
Page 7: Audio Dip Switch Control
Audio DIP Switch Control Note: Slide the “Audio Control” DIP switch to “ARC” mode. Detail information, please refer to “Audio DIP Switch Control” section. Audio DIP Switch Control The Extender features an Audio DIP Switch that can be used to control audio output. -
Page 8: S/Pdif In Mode
Audio DIP Switch Control S/PDIF IN Mode When you configure the auxiliary S/PDIF input, please switch it to S/PDIF IN mode and connect an audio system to the S/PDIF IN port of receiver, and an Audio System such as an AV Receiver to S/PDIF OUT port of transmitter. Audio signal from S/PDIF IN port will pass through to S/PDIF OUT port. -
Page 9: Operate With Rs232
Operate with RS232 Operate with RS232 According to the bi-direction RS232 pass through function, you can use two RS232 control systems for serial communication by connecting to the devices via serial cables in order to control the source device or the display. Control System or Controlle d Devi ce RS232 Cable Transmitter... -
Page 10: Specification
Specification Specification Technical Input 1 x HDMI, 1 x HDBT Input Signal Type HDMI with HDCP 2.2 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 , 1366x768 1440x900 , 1600x900 , 1600x1200 , 1680x1050 Input/Output 1920x1080 1920x1200 3840x2160 2,3,5,6,8... -
Page 11: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
