- Page 1 AV-72-RF Radio Controlled Solar Aviation Light with Tactical IR Mode & 128bit Encryption Installation & Service Manual Version 3.0...
- Page 2 Radio Controlled Solar Aviation Light Global 2.4GHz RF Radio Dual internal Control high-performance solar modules Internal RF module & antenna LED aviation lens with 0 to +7° vertical divergence Tough UV-stabilised LEXAN® polycarbonate lens and light base Figure 1 Leading Dimensions of AV-72-RF...
-
Page 3: Table Of Contents
AV-72-RF Radio Controlled Solar Aviation Light with Tactical IR Mode & 128bit Encryption Table of Contents Introduction ........................4 Operating Principle ..................... 4 Technology ........................4 AV-72-RF Model ......................5 Assembly & Installation ....................8 Unpacking Instructions .............................8 Initial Inspection ..............................8 Assembling the Light &... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Avlite products are of a consistent and superior quality. Optical Performance Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. -
Page 5: Av-72-Rf Model
The battery is protected from over-charging within the circuit to ensure maximum battery life. The Avlite AV-72-RF solar airfield light is exceptional in its unique ability to ‘track the sun’, operating reliably in low sunlight conditions. Made from tough, durable polycarbonate and using the latest high-intensity LED’s, the AV-72-RF light boasts dual high-performance solar modules... - Page 6 Waterproof IP68 Intellectual Property Patents US Pat. No. 6,667,582. AU Pat. No. 778,918 Trademarks AVLITE® is a registered trademark of Avlite Systems Warranty * 3 year warranty Options Available • Avlite Pilot Activated Lighting Control • IR LEDs • External ON/OFF Switch •...
- Page 7 M100103 EN61000-6-3:1997. EN61000-6-1:1997 Quality Assurance ISO9001:2008 Intellectual Property Trademarks AVLITE® is a registered trademark of Avlite Systems Warranty * 1 year warranty • Specifications subject to change or variation without notice Subject to standard terms and conditions Latest products and information available at www.avlite.com...
-
Page 8: Assembly & Installation
Avlite office if there is any hardware missing. Initial Inspection Inspect all hardware for damage. If there is any damage, please contact your Avlite Office. Retain original packing material for possible future use in shipping the AV-72-RF. Assembling the Light & Configuration of Settings 1. -
Page 9: Installing The Light Assembly To The Frangible Stake Mount
2. RF lights should always be installed on mounting plates and stakes. Avlite does not recommend installation on rubber tiles. The completed AV-72-RF mount plate assembly is to be mounted on the Stake (Fig 3) in firm soil (not loose sand, screenings or other unbound material). -
Page 10: Installing The Light Assembly To The Frangible Concrete Mount
Fit the AV-72-RF to the light mounting plate using M8 SHCS, large flat washers and Nylock nuts. Note: After adjustments, ensure all nuts and bolts are tightened securely and all tools, spares and packaging are removed from the runway. -
Page 11: How Does The System Work
How Does the System Work? The Avlite ALS System works by using a hand held radio controller to activate and setup an entire airfield, airport or air base. The system utilises an embedded R/F module operating in the 2.4Ghz ISM Band. -
Page 12: Manual Light Activation Via External Momentary Button (Where Fitted)
The AV-72-RF lights are available with optional external momentary button for manual light operation. The momentary button may be incorporated in the AV-72-RF for emergency use or in case the radio controller is lost or damaged. This button enables the user to manually turn the light on and step through the three different intensity levels. -

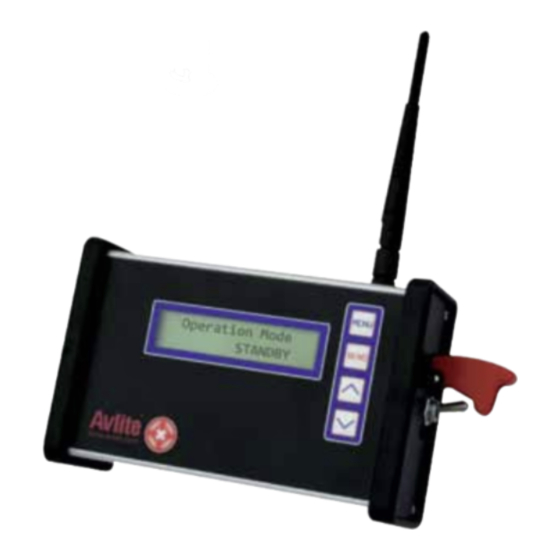

Page 13: Avlite Radio Controller
The unit allows you to roam around the airfield for easy activation, inspection and testing of the airfield lights. The Avlite Radio Controller works on the 2.4GHz ISM Band using a low power RF module. The backlit, LCD can be seen during day or night. The straightforward menu makes the ALS easy to operate. -
Page 14: Assembly & Installation Of Radio Controller
Unpack all hardware and verify container contents in accordance with Fig. 4 & 5. Please contact your Avlite office if there is any hardware missing. Initial inspection Inspect the Radio Controller for damage. If there is any damage, please contact your Avlite office. Retain original packing material for possible future use. Assembly & Charging The Radio Controller can be activated after raising the aerial into the upright position, see Fig 5. -
Page 15: Radio Controller Menu
The light is Always On. The light will be lit both day & night. While the light is in this mode it will only turn off when the battery drops below the Flat Battery Voltage level. (AV-72-RF = 3.1V) STANDBY Operational Mode The light is Always Off. -
Page 16: Timeout Duration
LED Bank Setup All Avlite ALS systems can have the option of having the lights built with multiple colours, in different LED banks. This can allow a runway to be changed from Visible to I/R at the press of a button. -
Page 17: Using The Radio Control To Activate The Airfield Lighting System (Als)
AV-72-RF Radio Controlled Solar Aviation Light with Tactical IR Mode & 128bit Encryption Using the Radio Control to Activate the Airfield Lighting System (ALS) The Radio Controller is very easy to use and by reading through the How To section below, all of the advanced features will be well within your grasp. -
Page 18: Runway A Will Be I/R Low Intensity High Intensity
AV-72-RF Radio Controlled Solar Aviation Light with Tactical IR Mode & 128bit Encryption Runway B Only is to be HIGH Intensity, with a Timeout of 8 Minutes and Runway A will be I/R Low Intensity • On Runway A, set the rotary switches to A=0 B=0 inside the light head. -
Page 19: Flash Codes
Tactical IR Mode & 128bit Encryption Flash Codes All AV-72-RF lights are programmed to be Steady On. Alternatively they are able to be programmed to flash in any of the 250 different flash codes, if the option is activated. - Page 20 FL 5 S FL 15 S 14.0 FL 5 S LFL 15 S 11.0 FL 5 S OC 15 S FL 5 S LFL 20 S 18.0 FL 5 S FL 26 S 25.0 Latest products and information available at www.avlite.com...
- Page 21 AV-72-RF Radio Controlled Solar Aviation Light with Tactical IR Mode & 128bit Encryption SWITCH FLASH CODE FL (2) 4 S VQ (2) 4 S FL (2) 4.5 S FL (2) 4.5 S FL (2) 4.5 S FL (2) 5 S...
- Page 22 AV-72-RF Radio Controlled Solar Aviation Light with Tactical IR Mode & 128bit Encryption SWITCH FLASH CODE Q (3) 6 S FL (3) 8 S FL (3) 9 S FL (3) 9 S FL (3) 10 S FL (3) 10 S...
- Page 23 AV-72-RF Radio Controlled Solar Aviation Light with Tactical IR Mode & 128bit Encryption SWITCH FLASH CODE Q (5) 7 S Q (5) 10 S FL (5) 12 S FL (5) 20 S 15.5 FL (5) 20 S 11.2 FL (5) 20 S 11.0...
-
Page 24: Maintenance & Servicing
Always recycle old batteries. AV-72-RF Long Term Battery Storage If the AV-72-RF are to be placed in storage for an extended period please follow the below information. • The NiMH batteries inside the AV-72-RF must always be stored in a fully charged state. -
Page 25: Trouble Shooting
• Recharge the battery. The unit can be left attached to the charger for a constant battery charge. All AV-72-RF lanterns are fitted with a red Status LED. This is found near the Flash Code Switches. It helps determine a fault with the unit depending on the flash rate of the Status LED. -
Page 26: Avlite Light Warranty
Avlite or authorised Avlite repair personnel. - Page 27 5. No modifications to the original specifications determined by Avlite shall be made without written approval of Avlite Systems. 6. Avlite lights can be fitted with 3rd party power supplies and accessories but are covered by the 3rd party warranty terms and conditions.
- Page 28 • Helipad lighting • Obstruction lighting Area & Sign Lighting For a complete list of product compliances including ICAO & FAA, please contact Avlite today Head Office Avlite Systems Tel: +61 (0)3 5977 6128 Fax: +61 (0)3 5977 6124...
