Avlite AV-70 Quick Start Manual

Quick Start Guide

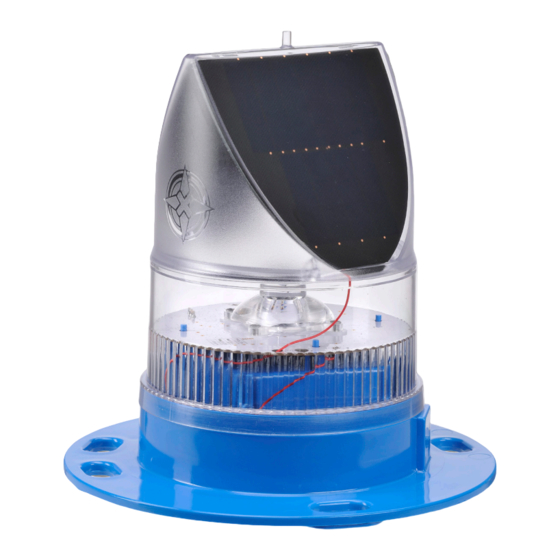

AV-70 Aviation Light
This Quick Start Guide provides a summary of installation steps for the AV-70 Solar Aviation Light. A thorough review
of the Installation and Service Manual is recommended prior to installation.
Note: The AV-70 can be operated as a solar or AC powered airfield light. Lights can be operated without cabling,
using solar power. Cables can be used for sustained operations (greater than 20 hours), in conditions of low sunlight
and/or low temperature.
Before installation, ensure that applicable power systems have been installed if required by your specific ligthing
system installation
If required, please consult the AvMesh

What Installation Parts will you need?

Mounting Tile (if required)
Large Washers
Quick Release Pins - Long (for tile mounting only)
Frangible Concrete Mount (if required)
Frangible Stake Mount (if required)

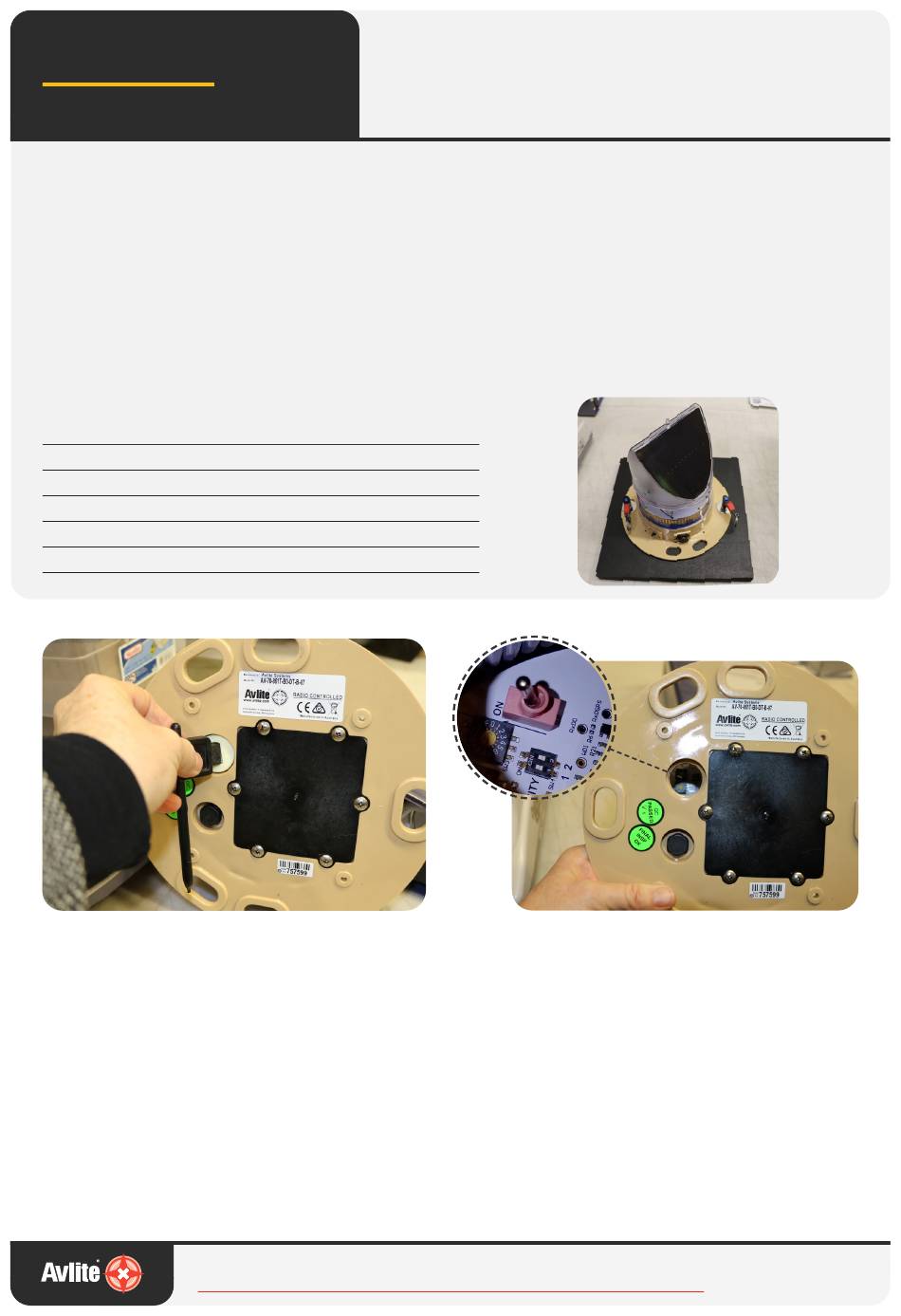

Step 1: Remove Bung

Using a bung tool, remove the bung from the bottom
of the light base.
Note: There is a sealed vent on base which allows air
transfer without moisture intake. Do not disturb.

Step 2: Charge the battery

New lights should be left in the sun for several days
to ensure the battery is charged before placing in
service.
For the full manual, visit the link below:
avlite.com/product/aviation-and-taxiway-light-faa-and-icao-av-70
Thank you for purchasing this product. This guide will
provide you with a brief summary of the steps involved in
deploying the AV-70
RF Communications Manual and Quick Start Guide to program light groups.
TM
1
2
2
1
1

Step 3: Activate Light

Set internal toggle switch to ON. Replace bung in light
base. Alternatively flick the external switch to 'ON' if
fitted
Note: Power and range settings are factory-set
by Avlite to comply with regulatory or customer
requirements.
