Summary of Contents for Avlite AV-OL-FL864-12-R

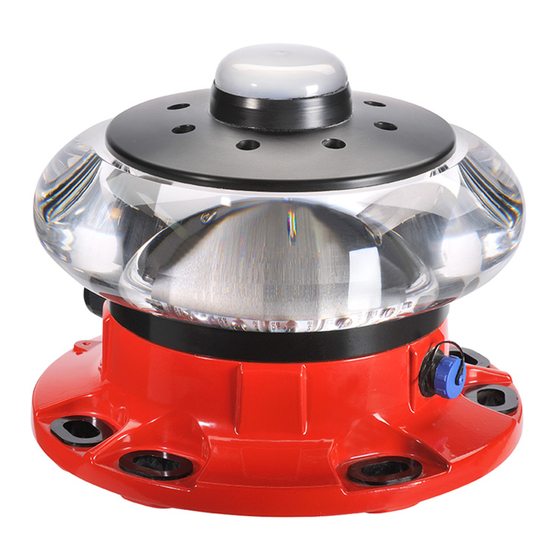

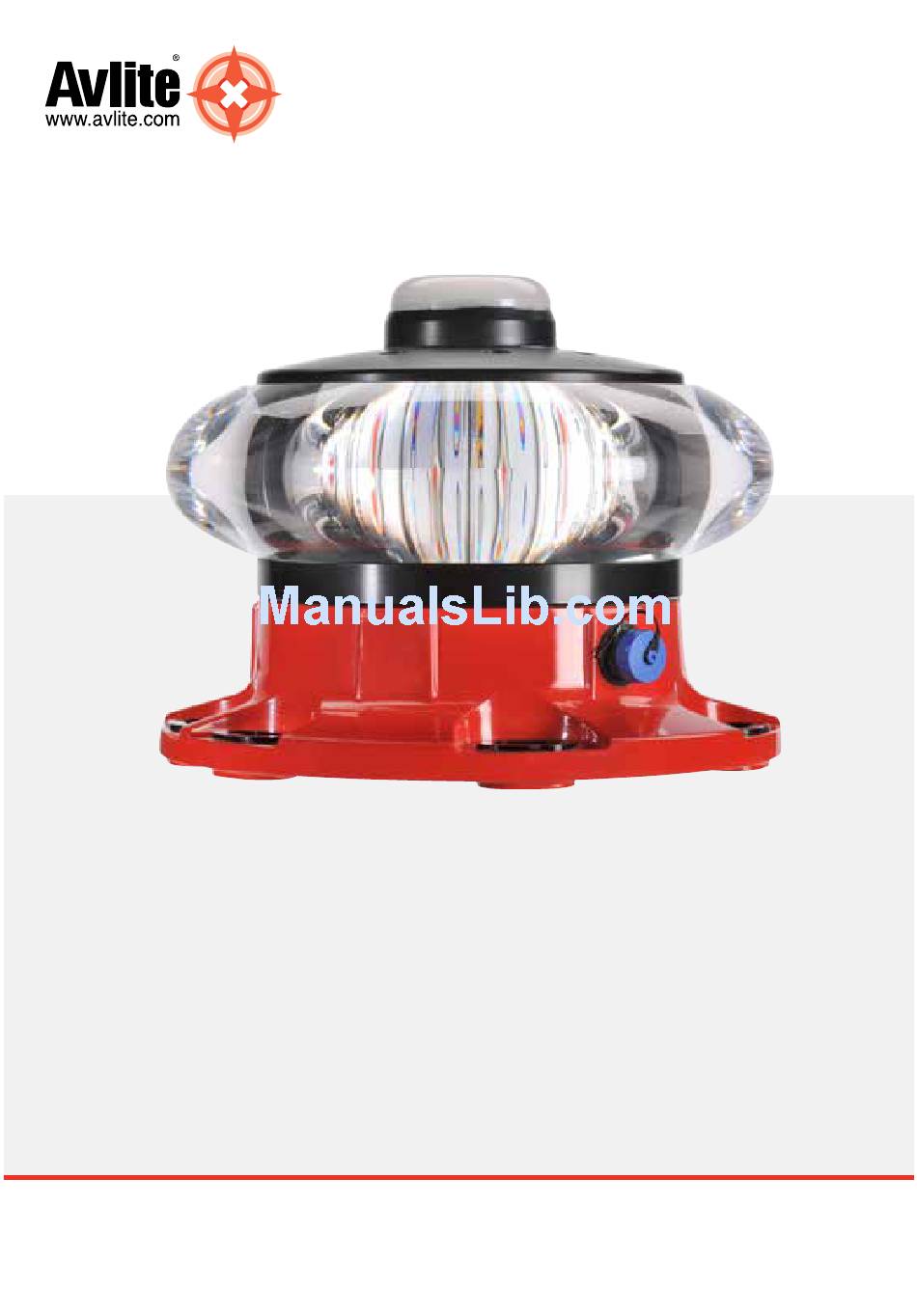

- Page 1 AV-OL-FL864-12-R & AV-OL-FL864-UM-R FAA L-864 Medium Intensity Obstruction Light Universal DC & Universal AC Models INSTALLATION & SERVICE MANUAL V1.6...
-
Page 2: Table Of Contents
Table of Contents Introduction Technology AV-OL-FL864-12-R & AV-OL-FL864-UM-R Medium Intensity Obstruction Light 6 Technical Drawings ................................6 Specifications ..................................8 Safety Information Unpacking, Installation, Wiring & Setup Unpacking....................................10 Installation & Wiring ................................10 AC Wiring Configuration ............................11 DC Wiring Configuration ............................12 Power Supply Design Considerations ........................13... - Page 3 March 2015 W. Evans Update installation & wiring June 2015 W. Evans Spec table update Dec 2016 W. Evans Update for FAA AC150_5345_43H May 2017 J. Ohle Update Pg 22 Jan 2018 J. Ohle Latest products and information available at www.avlite.com...
-
Page 4: Introduction
LED obstruction lights in the world. Avlite Systems draws on more than 25 years’ experience in the design and manufacture of navigation aids, and particular care has been taken to ensure your light gives years of trouble free service. -
Page 5: Technology
Avlite procurement staff ensuring that only the highest quality components are used in our products. LED Technology All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source. The major advantage of LED’s over traditional light sources is well established in that they typically have an operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing costs. -
Page 6: Av-Ol-Fl864-12-R & Av-Ol-Fl864-Um-R Medium Intensity Obstruction Light
Avlite’s LED obstruction lights offer an ultra-bright, energy efficient and cost effective lighting solution. The light fixture is available in two configurations, universal DC (12–48VDC) or universal AC (110–240VAC). - Page 7 FAA L-864 Medium Intensity Obstruction Light Universal AC & Universal DC Models 7.07 4.21 9.06 7.874 200.00 6 Places Latest products and information available at www.avlite.com...
-
Page 8: Specifications
(Qualified by Intertek) (Qualified by Intertek) Waterproof IP68 IP68 Intellectual Property Trademarks AVLITE is a registered trademark of Avlite Systems AVLITE is a registered trademark of Avlite Systems ® ® Warranty * 5 year warranty 5 year warranty Options Available •... -
Page 9: Safety Information
• Do not stare at the LED or shine the LED into your eyes or those of another person. • Do dispose of the product according to the local laws and regulations for your region, for example, at a recycling center that accepts electronic devices. Latest products and information available at www.avlite.com... -
Page 10: Unpacking, Installation, Wiring & Setup
Unpacking, Installation, Wiring & Setup Unpacking Unpack all hardware and inspect for damage. If there is any damage, please contact your Avlite Office. Retain original packing material for possible future use in shipping. Installation & Wiring Before proceeding with installation or service, make sure the following conditions are met: •... -
Page 11: Ac Wiring Configuration
RS422 RS422 -VE (Rx) POWER ALARM RS232 RS232 RS422 RS422 RS422 +VE (Rx) RS422 -VE (Tx) 10 11 12 13 14 RS422 +VE (Tx) IO-1 IO-1 OUT-1 IO-1 Programming Port IO-1 IN-1 IO-1 Latest products and information available at www.avlite.com... -
Page 12: Dc Wiring Configuration
DC Wiring Configuration External: Cable: 2-core Internal: No. Connector Signal +VIN +VDC LED driver -VIN -VDC ALARM COMM ALARM Light in normal operation ALARM RS232 DC/DC RS232 RS232 RS422 RS232 RS422 +Vin -Vin ALARM RS232 RS422 IO-1 RS422 -VE (Rx) RS422 +VE (Rx) 9 10 11 12 13... -
Page 13: Power Supply Design Considerations
Avlite’s medium intensity obstruction lights are designed to operate over a wide operational voltage range and thus the average power consumption will vary accordingly. There is a vast array of power sources that can be utilized for Avlite’s medium intensity obstruction lights. However, the vast majority of customer power supplies comprise of either Photovoltaic Power or AC Utility and as such this bulletin will focus on these types and how they apply to Avlite’s FAA L864 Medium Intensity Obstruction Lights. -
Page 14: Operation & Setup
Operation & Setup When powered up, the light will constantly check day/night status using its internal ambient light sensor. The ambient light sensor averages its measurement for 30 seconds. FAA: By default, the lights turn ON when the ambient light decreases to not less than 35 foot-candles (367.7 lux) and turn OFF when the ambient light increases to not more than 60 foot-candles (645.8 lux). -
Page 15: Led Fault
RS422/485 Typical 4 pin arrangement with Termination selection and Duplex/Simplex selection. For location details please refer to Figure 1 & 2. Duplex Termination OFF OFF Simplex operation OFF No termination Duplex operation 120 Ohm termination Please contact Avlite for further details. Latest products and information available at www.avlite.com... -
Page 16: Optional Ir Remote Control
In this case, the command will have to be restarted. Avlite IR Controller / Universal Remote Compatibility If you lose your Avlite IR Controller, the following Universal Remote Controller has been tested for compatibility: RCA Type RCR312WR programmed for Phillips TV Type Code 10054... -
Page 17: Ir Controller Functions
In Standby mode, the lantern is turned off and the daylight sensor is disabled. This mode does not affect the operation of the GSM module. In Dusk-to-Dawn, the daylight sensor is enabled. Always on mode Standby mode Dusk-to-Dawn mode Latest products and information available at www.avlite.com... - Page 18 Battery Status (12V System Only) This function reads the battery status. The response from the light is: 4 flashes = High Voltage 3 flashes = Good Voltage 2 flashes = Low Voltage 1 flashes = Cut-off Voltage or below Example Key sequence: Error/Acknowledge Indication If the key sequence is invalid, or an out of bounds value is attempted to be set, the light flashes 5 times for 1 second.
-
Page 19: Optional Gps Synchronization
Universal AC & Universal DC Models Optional GPS Synchronization Avlite has utilized the latest advancements in GPS technology to develop an internal synchronization system that can be incorporated into the lights. Using overhead satellites, multiple obstruction lights set to the same flash pattern will flash in unison. -
Page 20: Dark Operation
Dark Operation When dark conditions are detected the light: • Checks for valid time data and is turned on after a delay based on the current time and the length of the selected flash code; • If valid time data is not detected the light will turn on after approximately 10 seconds. This light will not be synchronized. -
Page 21: Optional Gsm Monitoring & Control
Universal AC & Universal DC Models Optional GSM Monitoring & Control The Avlite obstruction light is available with GSM Cell-Phone Monitoring, enabling operators to remotely monitor the status of their installation. The system can also be configured to send out SMS text messages or e-mail alerts to designated operators should alarm conditions be triggered, such as low voltage or light failure. -
Page 22: Lantern Status
Lantern Status Lantern Status The AV-OL-FL864-12/UM lanterns are fitted with two status LEDs and provide the operator with an indication of the lantern status There is one red and one yellow status LED. The red status LED is used to indicate the health of the Lantern’s power system. -
Page 23: Certification
1 Quick Flash, and Slow Flashing. The LEDs are located on the side of the lantern. Certification Certified to: FAA AC NO: 150/5345-43 H, L-864 FAA Engineering Brief No. 67 DGAC L-864 Transport Canada: CAR, Standard 621; CL-864 Latest products and information available at www.avlite.com... -
Page 24: Avlite Light Warranty V1.2
Avlite Systems will repair or replace your lantern in the event of electronic failure for a period of up to three years from the date of purchase. Avlite Systems will repair or replace any ancillary or accessory products in the event of failure for a period of up to one year from the date of purchase, as per the terms &... - Page 25 3rd party warranty terms and conditions. 7. The product must be packed and returned to Avlite Systems by the customer at his or her sole expense. Avlite Systems will pay return freight of its choice. A returned product must be accompanied by a written description of the defect and a photocopy of the original purchase receipt.
- Page 26 To the extent permitted by acts and regulations applicable in the country of manufacture, the liability of Avlite Systems under this Warranty will be, at the option of Avlite Systems, limited to either the replacement or repair of any defective product covered by this Warranty.
- Page 27 FAA L-864 Medium Intensity Obstruction Light Universal AC & Universal DC Models Latest products and information available at www.avlite.com...
-
Page 28: Other Avlite Products Available
Other Avlite Products Available Solar Aviation Lighting Obstruction Lighting Heliport Lighting Monitoring and Control Australia United Kingdom Tel. +61 (0)3 5977 6128 Tel. +1 (603) 737 1310 Tel. +44 (0) 1502 588026 We believe technology improves navigation™ Learn more www.avlite.com...
