- Page 1 Combined Medium Intensity Obstruction Light AV-OL-CMI Installation & Service Manual - V2.0 "We Believe Technology Improves Navigation."...
- Page 2 Manual Update Register Version No. Description Date Reviewed Approved Design 2.0 (Current) AV-OL-CMI Product Update November 2021 P. Naidu W. Evans M. Sugars Medium Intensity Obstruction Light AV-OL-MI...
-
Page 3: Table Of Contents
Contents 1.0 Introduction ....................................4 2.0 Technology .....................................5 3.0 AV-OL-CMI Model ..................................6 4.0 AV-OL-CMI Data Sheet ................................8 5.0 Safety Information ..................................9 6.0 Operation and Setup .................................. 10 6.1 GPS Syncronisation ................................10 7.0 Unpacking, Installation and Wiring ............................11 7.1 Unpacking .................................... -
Page 4: Introduction
1.0 Introduction Congratulations! By choosing to purchase an Avlite light, you have become the owner of one of the most advanced obstruction lights in the world. Avlite Systems draws on more than 25 years experience in the design and manufacture of navigation aids, and particular care has been taken to ensure your light gives years of trouble free service. -
Page 5: Technology
LED Technology All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source. The major ad- vantage of LED’s over traditional light sources is well established in that they typically have an operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing costs. -
Page 6: Av-Ol-Cmi Model

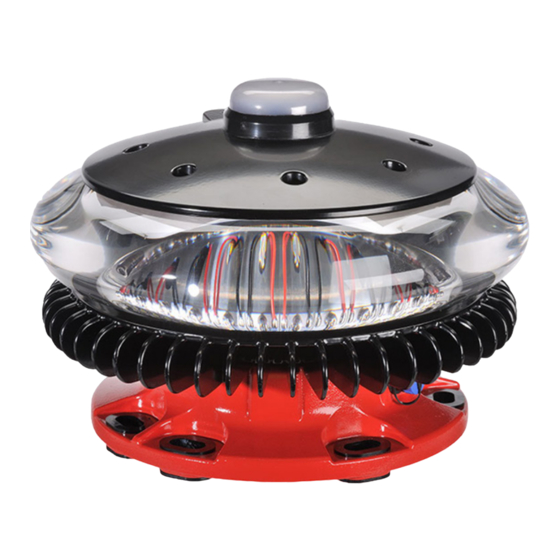

3.0 AV-OL-CMI Model This AV-OL-CMI is a combined medium intensity LED obstruction light designed to comply with FAA L-864,865,866,885 or ICAO Type A,B, or C (including applicable combinations). The model can be used for both day and night operation depending on product type and can be used for marking obstacles from 60 metres above ground. These include telecommunication towers, wind turbines, buildings and other tall structures. - Page 7 Multiple LED Optic Impact modified UV- stabilised acrylic lens Automatic night operation 7-stage powder coated aluminium base 200 mm bolt pattern for ease of intallation Technical Illustrations [11.75in] 296mm [7.07in] 200mm 30° Want the latest product information? Visit www.avlite.com...
-
Page 8: Av-Ol-Cmi Data Sheet
Add on solar system for DC variant. Mounting accessories. Obstruction Controller with SATCOM or GSM available. Turn-key kit based on structure. Terms and Conditions Please refer to the light installation manual for further specifications Warranty Terms and Conditions - www.avlite.com Medium Intensity Obstruction Light AV-OL-MI... -
Page 9: Safety Information
Ensure the tower or mast is grounded (NO RF HAZARD). • Check the mast lighting circuit is not faulty. • Make sure the mounting pole is vertically aligned to guarantee the required beam pattern of the obstruction light Want the latest product information? Visit www.avlite.com... -
Page 10: Operation And Setup
6.0 Operation and Setup Avlite’s AV-OL-CMI is a robust wired LED light. The light fixture is available in universal DC input and can be configured to operate 24 hours a day, illuminated white for day time operation and red for night time operation (depending on product type). -
Page 11: Unpacking, Installation And Wiring
Mount the CMI fixture directly to the top of the tower or installation structure by either securing it to the mounting plate or by attaching an optional Avlite Right Angle Pole Mounting Bracket (for medium intensity fixtures) to the tower and bolting the CMI to the bracket. - Page 12 DC Power Connection The unit is designed to operate from a nominal DC voltage from 36V to 48V. Wire as follows: • Positive supply (+) = +VDC (Red) • Negative supply (-) = 0V (Black) For location details of the terminals please refer below: Number Connector Signal LED driver +VIN...
- Page 13 Relay disable (in case the relay is not required, used to conserve power) Note: The alarm relay is intended for low voltage (SELV) connection only. NOT FOR MAINS CONNECTION Please contact AVLITE for further details. Day and Night Time Operation Configuration...
-
Page 14: Testing Procudure
General Purpose Inputs and Outputs The AV-OL-CMI fixture supports a minimum of five discrete IOs via General Purpose Inputs (2) and Outputs (3) in order to meet monitoring requirements as well as provide compatibility with our obstruction lighting controllers. The I/O configurations must be specified at the time of order. -
Page 15: Ir Remote Control
In Always On mode, the daylight sensor is disabled and the lantern will remain ON. In Standby mode, the lantern is turned off and the daylight sensor is disabled. In Dusk-to-Dawn, the daylight sensor is enabled. Read Operation mode Always on mode Standby mode Dusk-to-Dawn mode Want the latest product information? Visit www.avlite.com... - Page 16 Battery Status This function reads the battery status. The response from the light is: 4 flashes = High Voltage 3 flashes = Good Voltage 2 flashes = Low Voltage 1 flashes = Cutoff Voltage or below Example Key sequence: Error/Acknowledge Indication If the key sequence is invalid, or an out of bounds value is attempted to be set, the light flashes 5 times for 1 second.
-
Page 17: Maintenance And Servicing
9.0 Maintenance and Servicing Designed to be maintenance free the Obstruction Lights requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Avlite product. • Occasional cleaning of the dome lens may be required using a cloth and warm soapy water. - Page 18 36V DC Supply System Red Status LED Name Voltage Description Slow High 45.0V and above Voltage is higher than expected, this may indicate a problem with the solar regulator. Optimal Between 36.0V – 45.0V Voltage is correct for a charged battery 1 Quick Good Approximately 36.0V...
-
Page 19: Troubleshooting
Insufficient Charging • Expose light to direct sunlight and monitor for the entire night. operation for several days. Avlite products typically require 2.5-3.0 minimum hours of direct sunlight per day to retain full autonomy. From a discharged state, the light may require several days of operational conditions to ‘cycle’... - Page 20 Contact Us! Avlite's solutions are easy-to-install and scalable. We have a solution for every budget. Avlite Head Office Avlite USA 11 Industrial Drive, Somerville 61 Business Park Drive, Tilton Victoria, Australia 3912 New Hampshire, USA 03276 T: +61 (0)3 5977 6128...
