Avlite AV-15 Installation & Service Manual

Solar Aviation Light
AV-15
Features
• Up to 3.5km visible range
(flashing), up to 1.5km visible
range (steady-on) – color
dependant
• Integrated solar/battery system
• Completely sealed for an IP68
waterproof rating
• User-replaceable NiMH battery
for long service life & wide
temperature range
• User-adjustable flash rates,
including steady-on
• Installs in minutes & operates
maintenance-free for up to five
years
Typical Applications
• Solar Barricade Light
• Solar Caution Light
• Solar Hazard Light
Compliance
• FAA AC150/5370-2F for
construction and barricade
installations
Avlite Systems
AUSTRALIA
t: +61 (0)3 5977 6128
Bird deterrent spike
Single LED Optic
Internal
user-replaceable
battery in sealed
compartment

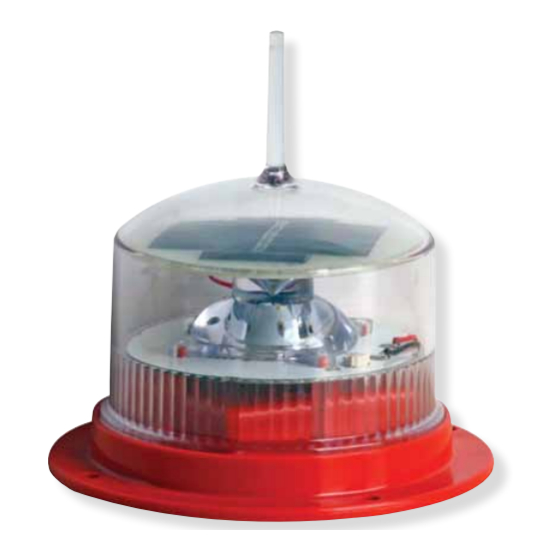

The AV-15 solar powered LED light is exceptional value, incorporating some
of the most advanced technology available to provide up to a 3.5km visible
range (flashing). The unit is suitable for a variety of applications including
barricade lighting and general hazard marking, and is used by some of the
world's largest mining companies to mark haul routes.
The AV-15 can be installed in minutes and requires no operator intervention. The
AV-15 has a rotary switch to allow users to change the flash rate of the light without the
need for special tools or programmers. This compact light is designed to be completely
maintenance-free and has a service life of over 5 years. The internally housed battery is
user-replaceable after years of service.
During daylight hours the solar module charges the battery and then on dusk the light
automatically begins operation once the ambient light threshold drops sufficiently.
The AV-15 features Avlite's Single LED Optic which boasts exceptional power to light output
efficiency. The tough outer polycarbonate lens incorporates an environment-friendly spike
to deter unwelcome bird life.
Optional ON/OFF Switch
The AV-15 is also available with an optional ON/OFF switch for temporary installations such
as worksites.
w: www.avlite.com
USA
e: info@avlite.com
t: +1 (603) 737 1310
Internal solar module
Automatic night
activation
Lens and base
moulded from
UV-stabilised
LEXAN®
polycarbonate
Internal user-adjustable
flash settings
"The solar powered LED lights
are significantly better than the
battery powered lights previously
used due to better visibility."
Jerry Haskins,
Managing Director,
Aus West Airlines,
Rio Tinto Mine Site WA
