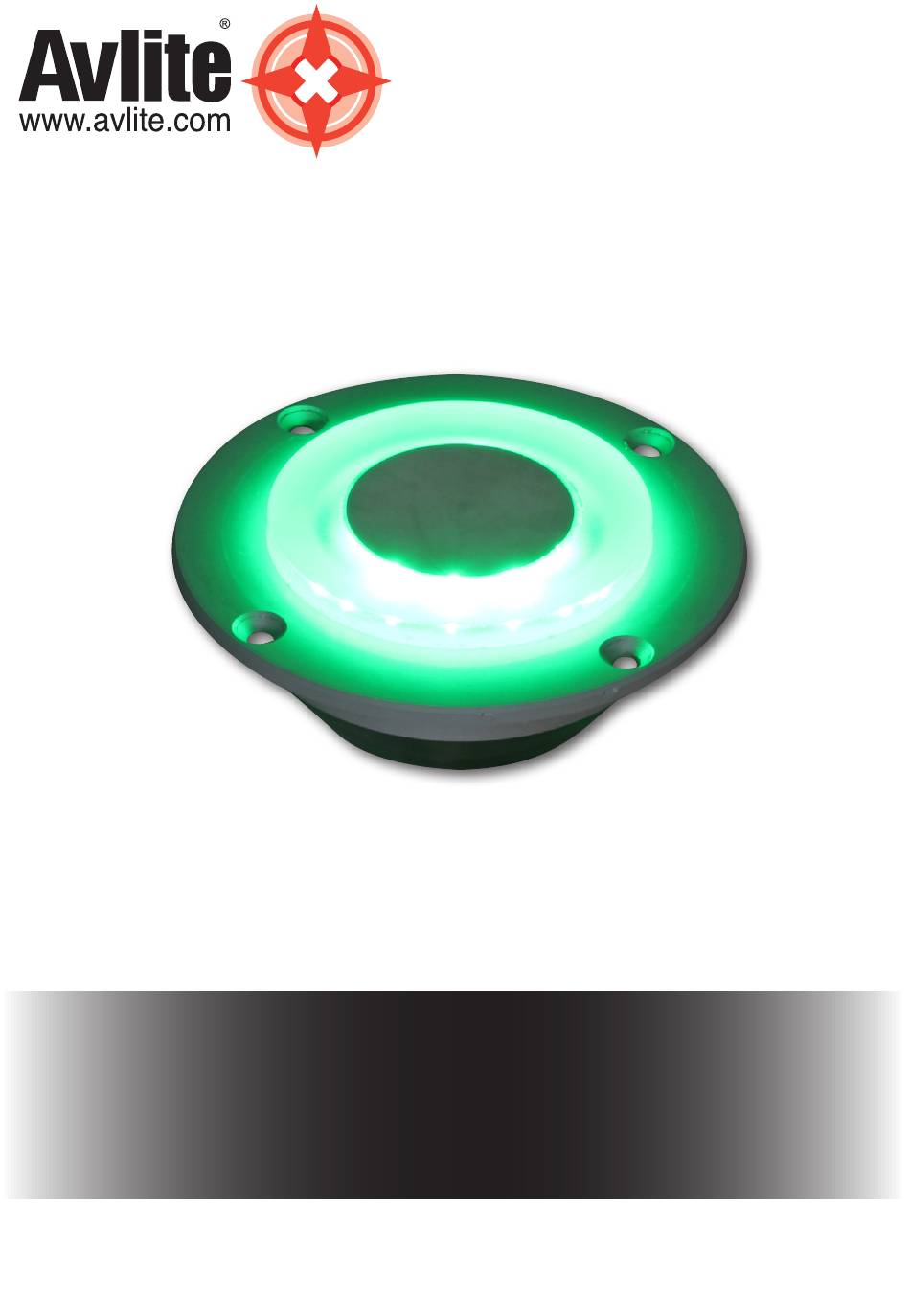

- Page 1 AV-HLI2 ICAO & FAA Inset Helipad Light Installation & Service Manual Version 1.3...
- Page 2 Version No. Description Date Approved Manual launch Dec 2016 W.Evans General Update Feb 2017 W.Evans Drawing Update Feb 2017 W.Evans...
-
Page 3: Table Of Contents
Safety Information .................... Page 7 Unpacking, installation, wiring & setup ............Page 8 Unpacking....................Page 8 Installation & Wiring ................Page 9 Maintenance & Servicing ................Page 11 Trouble Shooting .................... Page 11 Compliance ..................... Page 11 Latest products and information available at www.avlite.com... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Avlite products are of a consistent and superior quality. Optical Performance Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. The company has superior in-house lens manufacturing capabilities to support outstanding optical performance. -
Page 5: Av-Hli2 Models

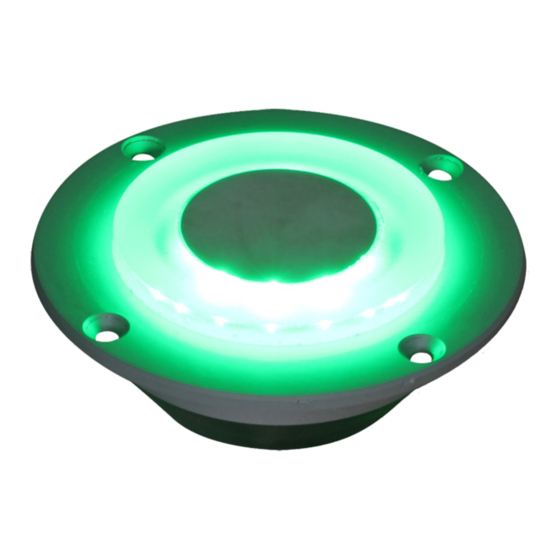

AV-HLI2 Helipad Inset Light The AV-HLI2 is an inset helipad light designed to comply with ICAO Annex 14, Volume II and FAA EB67D requirements in a compact and low profile fixture. The fixture is available in TLOF, FATO, ADI & API configurations to fulfil all surface level and elevated helipad lighting needs. - Page 6 5" SHALLOW BASE INSTALLATION 5" SHALLOW BASE INSTALLATION TYPE 1 TYPE 2 CORE DRILL PIPE CAST IN PLACE. REMOVE TO INSTALL LIGHTS Inset Light 8 Inch 190 MIN SECTION A-A 8" SHALLOW BASE INSTALLATION Latest products and information available at www.avlite.com...
-
Page 7: Safety Information
• Do not stare at the LED or shine the LED into your eyes or those of another person. • Do dispose of the product according to the local laws and regulations for your region, for example, at a recycling center that accepts electronic devices. Latest products and information available at www.avlite.com... -
Page 8: Unpacking, Installation, Wiring & Setup
ICAO & FAA Inset Helipad Light Unpacking, Installation, Wiring & Setup Unpacking Unpack all hardware and inspect for damage. If there is any damage, please contact your Avlite Office. Retain original packing material for possible future use in shipping. Installation & wiring Before proceeding with installation or service, make sure the following conditions are met: •... - Page 9 ICAO & FAA Inset Helipad Light PREPARATION OF INSTALLATION LOCATION The AV-HLI2 can be installed in either a 5” (inch), 8” (inch) or direct mounting configuration. 5” Configuration: For installation in tarmac or concrete helipads it is recommended to use the Avlite AV-MC-58, 5” (inch) inset shallow base taking into consideration site specific bearing load, leveling and thermal bonding.
- Page 10 • Align the screw holes of the inset light fixture with those of the mounting surface and fasten using silicone greased M10x15 counter sunk screws • Tighten screws to 3.5 Nm Latest products and information available at www.avlite.com...
-
Page 11: Maintenance & Servicing
ICAO & FAA Inset Helipad Light Maintenance & Servicing Designed to be maintenance free the inset helipad light requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Avlite product. •... - Page 12 • Helipad lighting • Obstruction lighting Portable Airfield Lighting For a complete list of product compliances System including ICAO & FAA, please contact Avlite today AUSTRALIA t: +61 (0)3 5977 6128 t: +1 (603) 737 1310 UNITED KINGDOM t: +44 (0) 1502 588026 A subsidiary of Sealite Pty Ltd www.sealite.com...
