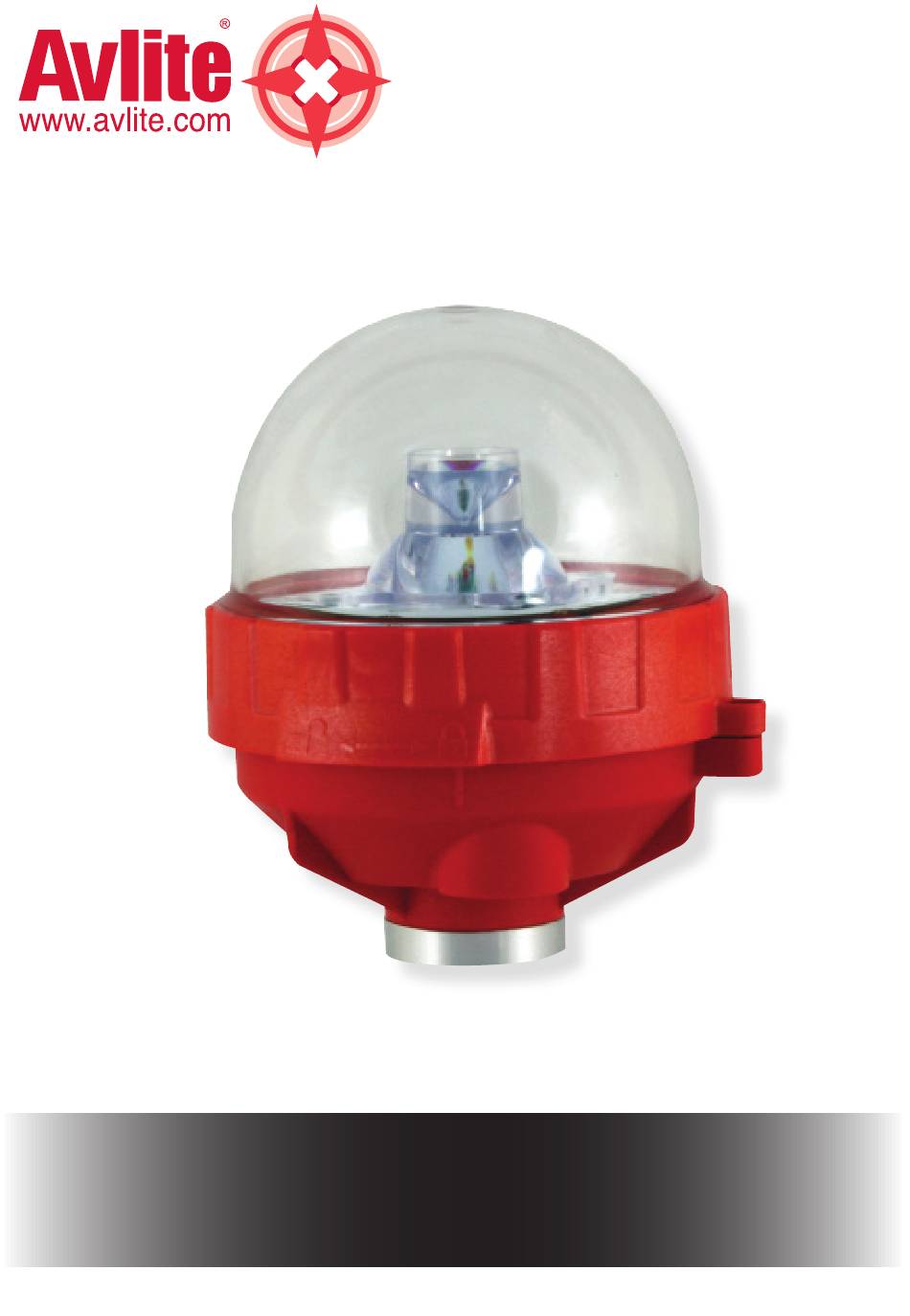

- Page 1 AV-OL-ILAB-UM-R & AV-OL-FL810-UM-R Universal AC Low Intensity Obstruction Light Installation & Service Manual Version 2.8...
- Page 2 Version No. Description Date Approved Manual launch Feb 2013 A. Groell Various June 2013 A. Groell Spec table update August 2013 A. Groell Alarm relay update August 2013 A. Groell Dip Switch Table September 2013 A. Groell Update: Wind speed November 2013 S.
-
Page 3: Table Of Contents
Universal AC Low Intensity Obstruction Light Single Light Fixture Table of Contents Introduction ..................Page 4 Technology ...................Page 4 AV-OL-ILAB-UM-R & AV-OL-FL810-UM-R Models ......Page 5 Safety Information ................Page 9 Unpacking, Installation, Wiring & Setup .........Page 10 Unpacking .................Page 10 Installation & Wiring ..............Page 10 Opening &... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Avlite products are of a consistent and superior quality. Optical Performance Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. The company has superior in-house lens manufacturing capabilities to support outstanding optical performance. -
Page 5: Av-Ol-Ilab-Um-R & Av-Ol-Fl810-Um-R Models

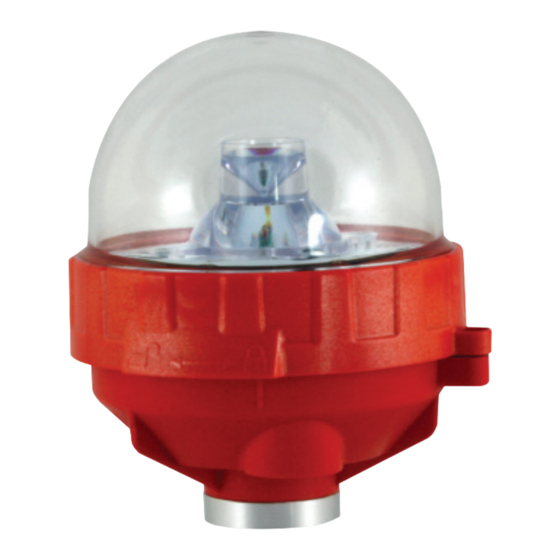

AV-OL-ILAB-UM-R & AV-OL-FL810-UM-R Models This Avlite light fixture is a steady burning, low intensity LED obstruction light designed to comply with FAA L-810 and ICAO LIOL Type A & B requirements. The model can be used for marking obstacles which pose a threat to aircraft, such as telecommunication towers, wind turbines, buildings and other tall structures. - Page 6 Model shown with optional 1 inch pipe Standard Model thread adaptor 121 (4.76”) 121 (4.76”) 119 (4.69”) 119 (4.69”) Standard Model Model shown with optional 1 inch pipe thread adapter Latest products and information available at www.avlite.com...
- Page 7 SPECIFICATIONS • * B LIOL Single Fixture 110–240 VAC Light Characteristics Light Source As tested; AV-OL-ILAB-UM-R (Type A & Type B) Available colours Red as standard. Other colours available on request, including IR Peak Intensity (cd)† Complies with ICAO LIOLA & LIOLB:...
- Page 8 AVLITE® is a registered trademark of Avlite Systems Warranty * 5 year warranty Options Available • GSM Cell-Phone Monitoring • Dual visual/IR output • IR LED • Threaded adaptor to fit one (1) inch pipe Latest products and information available at www.avlite.com...
-
Page 9: Safety Information
• Do not stare at the LED or shine the LED into your eyes or those of another person. • Do dispose of the product according to the local laws and regulations for your region, for example, at a recycling center that accepts electronic devices. Latest products and information available at www.avlite.com... -
Page 10: Unpacking, Installation, Wiring & Setup
NOTE: Use cable in compliance with the effective local electrical code. The cable outer diameter should be between 5mm and 10mm. NOTE: There is no requirement to terminate the relay and/or the serial communication if not used. Latest products and information available at www.avlite.com... -
Page 11: Opening & Closing The Light Head
The unit is designed to operate from a nominal AC voltage from 110VAC-240VAC. Wired as follows (according to Australian Standard): • L1 (brown) Line/Active • L2 (blue) Neutral For location details of the terminals please refer to Figure 3. Latest products and information available at www.avlite.com... - Page 12 110-240VAC L2 - NEUT ALARM COMM ALARM ALARM Figure 2. Light wiring diagram and pinning LINE 100-240 NEUT ALARM SPST Intensity switch Figure 3. AC Obstruction Light PCB with terminals and DIP switches Latest products and information available at www.avlite.com...
-
Page 13: Operation & Setup
(100 lux) and turn OFF when the ambient light decreases to not more than 60 foot- candles (150 lux). These limits can be factory adjusted, if required. If the light detects a LED failure the alarm relay can be used to provide a feedback to the user. Latest products and information available at www.avlite.com... -
Page 14: Intensity & Operation Mode Setting
The ICAO Model and FAA Model have their own unique optic. The ICAO model cannot be used for FAA purposes and the FAA model cannot be used for ICAO purposes. The model required needs to be specified at the time of order. NOTE: The unit must be installed by a qualified electrician. Latest products and information available at www.avlite.com... -
Page 15: Alarm Relay Output
Relay inverse operation (inverse functionality of the normal operation, used to conserve power) • Relay disable (in case the relay is not required, used to conserve power) NOTE: The alarm relay is intended for low voltage (SELV) connection only. NOT FOR MAINS CONNECTION Latest products and information available at www.avlite.com... -
Page 16: Maintenance & Servicing
Single Light Fixture Maintenance & Servicing Designed to be maintenance free the Obstruction Lights requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Avlite product. • Occasional cleaning of the dome lens may be required using a cloth and warm soapy water. -
Page 17: Trouble Shooting
Light will not activate. • Ensure proper connectivity with power supply • Ensure that the power supply has the right polarity and voltage range • Cover the light sensor to force the light ON Latest products and information available at www.avlite.com... -
Page 18: Appendix
SIGNAL Obstruction Light Head (top) 110-240VAC L1 - LINE 110-240VAC LED driver 110-240VAC L2 - NEUT ALARM COMM ALARM ALARM Light in normal operation AC/DC POWER ALARM Figure 4. Light head wiring diagram Latest products and information available at www.avlite.com... -
Page 19: Light Head Parts Diagram
Light Head Parts Diagram dome lens optics PCB with Screw single LED Top enclosure O-ring Security lock Bottom enclosure Cable gland Metal ring Inside thread for pole mounting vent Figure 5. Light head parts diagram Latest products and information available at www.avlite.com... -
Page 20: Product Order Codes
0 = Both lights activated at the same time 1 = One light activated with automatic changeover 1 = One light activated with automatic changeover ability ability [blank] = No feature [blank] = No feature Latest products and information available at www.avlite.com... -
Page 21: Certifications & Compliance
Certifications & Compliance Certified to: FAA AC NO: 150/5345-43G L-810 (L) FAA Engineering Brief No. 67 DGAC L-810 Compliant to: Low Intensity Type A & B Obstruction Light, ICAO Annex 14, Volume 1, Sixth Edition, July 2013, ‘Aerodrome Design and Operations Latest products and information available at www.avlite.com... -
Page 22: Avlite Light Warranty
Avlite or authorised Avlite repair personnel. - Page 23 11. This warranty does not cover any damage or defect caused to any product as a result of water flooding or any other acts of nature. 12. There are no representations or warranties of any kind by Avlite or any other person who is an agent, employee, or other representative or affiliate of Avlite, express or implied, with respect to condition of performance of any product, their merchantability, or fitness for a particular purpose, or with respect to any other matter relating to any products.
- Page 24 • Helipad lighting • Obstruction lighting Portable Airfield Lighting For a complete list of product compliances System including ICAO & FAA, please contact Avlite today AUSTRALIA t: +61 (0)3 5977 6128 t: +1 (603) 737 1310 UNITED KINGDOM t: +44 (0) 1502 588026 A subsidiary of Sealite Pty Ltd www.sealite.com...
