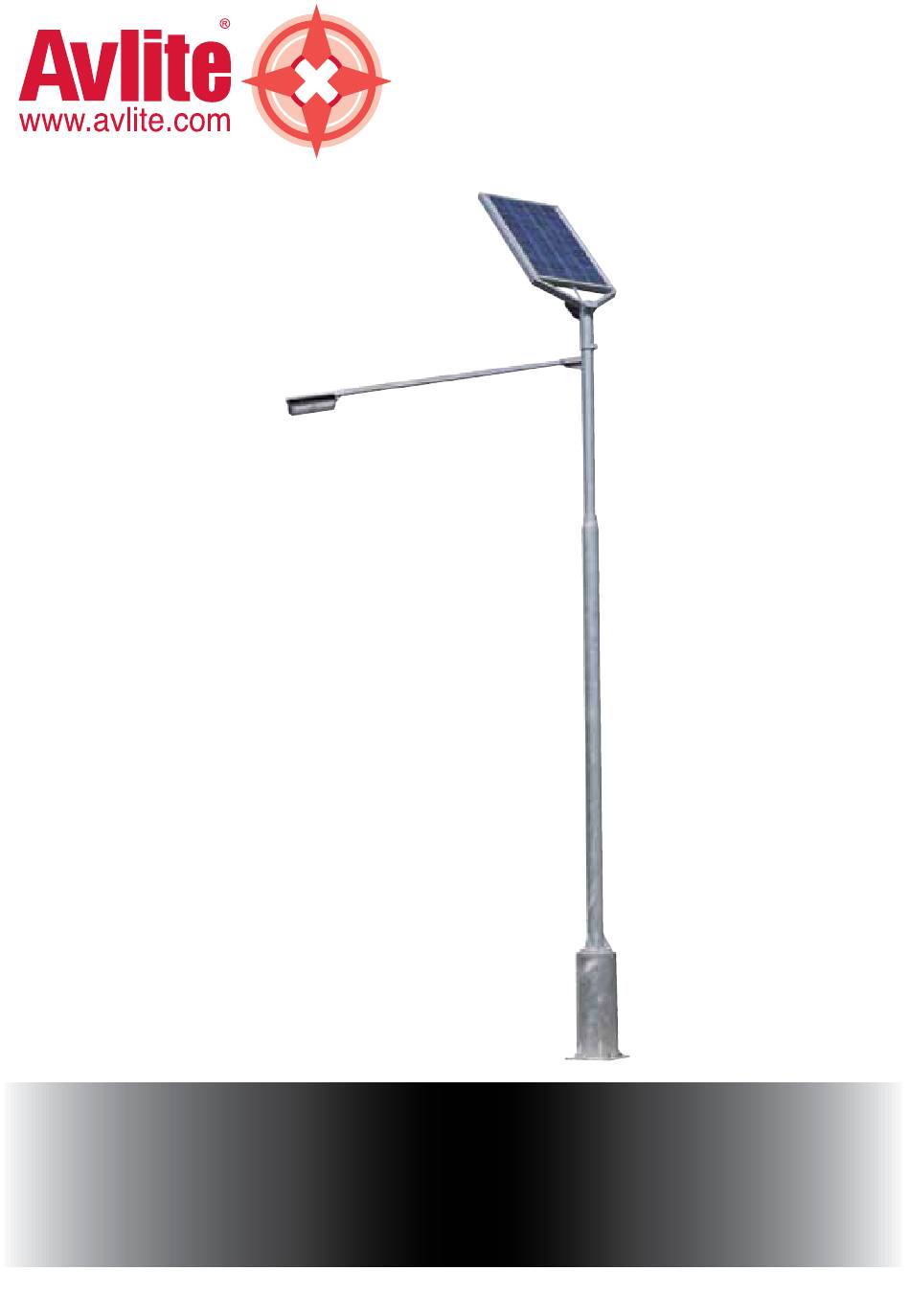

- Page 1 AV-SAL-01 Solar Area Light Installation & Service Manual Version 2.1...
- Page 2 AV-SAL-01 Solar Area Light 140watt multicrystalline solar module UV-stabilised LEXAN® polycarbonate lens containing 8 ultra-high intensity LEDs for Adjustable light arm optimal area illumination (>120 degrees) Positive o-ring sealing Galvanised post AL-01 light head Membrane Anti-tamper fittings vent Battery section...
-
Page 3: Table Of Contents
Troubleshooting ................Page 16 Avlite Light Warranty .................Page 18 Version No. Description Date Approved Manual launch August 2010 M. Henry Product Code change October 2012 J. Dore Spec table update January 2013 J. Dore Latest products and information available at www.avlite.com... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Avlite products are of a consistent and superior quality. Optical Performance Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. -
Page 5: Av-Sal-01 Model
The assembly uses the latest technologies in Light Emitting Diodes (LEDs) as a light source, and provides excellent illumination over a wide projected area. As well as the Solar Powered Unit, Avlite’s LED Area Light is also available as a mains powered version, providing installation flexibility. - Page 6 AV-SAL-01 Solar Area Light Fig 2. AL-01 Light Head Latest products and information available at www.avlite.com...
- Page 7 Up to 12 years Certifications EN61000-6-3:1997. EN61000-6-1:1997 Quality Assurance ISO9001:2008 Intellectual Property Trademarks AVLITE® is a registered trademark of Avlite Systems Warranty * 3 year warranty Options Available • Radio controlled • Avlite Pilot Activated Lighting Control • Dual arm assembly...
-
Page 8: Installation & Assembly
Installation & Assembly Wind Loading Avlite Systems’ panel mounting post is designed to meet wind loading requirements of AS1170.2 for Region A, B & C, Terrain Category 2 in accordance with the design requirements of AS4676. For detailed information regarding wind load regions and wind loading in general refer to AS1170.2. - Page 9 AS1170.2 “Structural design actions - wind actions” AS4676 “Structural design requirements for utility services poles” Region B, C & D Please contact Avlite Systems for recommendations. Fig 4. Lamp Post Installation, Region A Latest products and information available at www.avlite.com...
- Page 10 Please contact your Avlite office if any components are missing or damaged. Item Description Quantity Area Light 120W Solar Panel Light Arm Main Pole Battery Housing Fig 5. AV-SAL-01 Solar LED Area Light Components & Lamp Post Assembly Latest products and information available at www.avlite.com...
- Page 11 Using suitable lifting equipment, install the area light on to its foundation and fix into place. To complete the installation, follow the directions in the ‘Regulator Connection & Operation’ section of this manual. Latest products and information available at www.avlite.com...
- Page 12 AV-SAL-01 Solar Area Light Fig 6. Solar Area Light Electrical Wiring Diagram Latest products and information available at www.avlite.com...
-
Page 13: Activation
Light Operation 1. The AV-SAL-01 will be preset at the factory to steady-on. 2. The AV-SAL-01 uses an ambient light sensor to measure the light levels. When the light level falls below a set threshold the microprocessor will activate the light. -
Page 14: Regulator Connection & Operation
Cover the light head with a dark towel or jacket. Allow a 60 seconds of continuous darkness for the light to activate. When the installation is complete, fit the battery housing cover, using 6 x M8 x 25 SHCS. Latest products and information available at www.avlite.com... -
Page 15: Maintenance & Servicing
Designed to be maintenance free, the AV-SAL-01 requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Avlite product. 1. Cleaning Solar Panels - occasional cleaning of the solar panels may be required. Using a cloth and warm soapy water, wipe off any foreign matter before rinsing the panels with fresh water. -
Page 16: Troubleshooting
• Expose light to direct sunlight and monitor operation for several days. entire night. Avlite products typically require 1.5 hours of direct sunlight per day to retain full autonomy. From a discharged state, the light may require several days of operational conditions to ‘cycle’ up to full autonomy. - Page 17 AV-SAL-01 Solar Area Light Notes Latest products and information available at www.avlite.com...
-
Page 18: Avlite Light Warranty
Avlite or authorised Avlite repair personnel. - Page 19 5. No modifications to the original specifications determined by Avlite shall be made without written approval of Avlite Systems. 6. Avlite lights can be fitted with 3rd party power supplies and accessories but are covered by the 3rd party warranty terms and conditions.
- Page 20 • Barricade, hazard & perimeter lighting • Obstruction Lighting Area & Sign Lighting For a complete list of product compliances including ICAO & FAA, please contact Avlite today Head Office Avlite Systems Tel: +61 (0)3 5977 6128 Fax: +61 (0)3 5977 6124...
