- Page 1 Medium Intensity Obstruction Light AV-OL-MI Installation & Service Manual - V3.0 "We Believe Technology Improves Navigation."...
- Page 2 Manual Update Register Version No. Description Date Reviewed Approved Design 3.0 (Current) AV-OL-MI Product Update November 2021 P. Naidu W. Evans M. Sugars Medium Intensity Obstruction Light AV-OL-MI...
-
Page 3: Table Of Contents
Contents 1.0 Introduction ....................................4 2.0 Technology .....................................5 3.0 AV-OL-MI Model ..................................6 4.0 AV-OL-MI Data Sheet ..................................8 5.0 Safety Information ..................................9 6.0 Operation and Setup .................................. 10 6.1 GPS Syncronisation ................................10 7.0 Unpacking, Installation and Wiring ............................11 7.1 Unpacking .................................... -
Page 4: Introduction
1.0 Introduction Congratulations! By choosing to purchase an Avlite light, you have become the owner of one of the most advanced obstruction lights in the world. Avlite Systems draws on more than 25 years experience in the design and manufacture of navigation aids, and particular care has been taken to ensure your light gives years of trouble free service. -
Page 5: Technology
LED Technology All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source. The major ad- vantage of LED’s over traditional light sources is well established in that they typically have an operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing costs. -
Page 6: Av-Ol-Mi Model

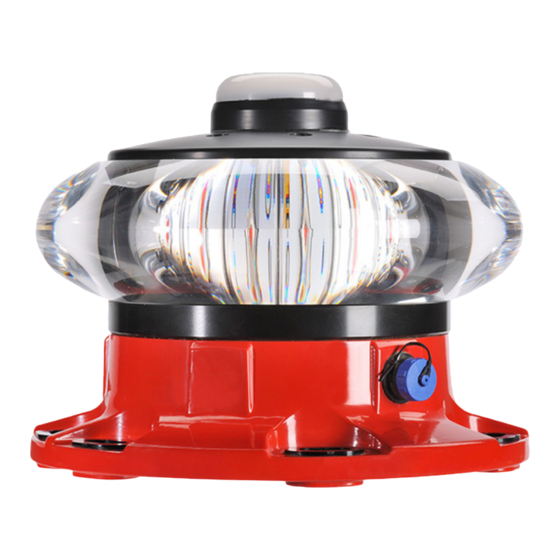

3.0 AV-OL-MI Model The AV-OL-MI is a red, medium intensity LED obstruction beacon designed to comply with either ICAO MIOL Type B or Type C, or FAA L-864 requirements. The model is illuminated for night operation as either a steady burning (ICAO Type C only) or flashing (ICAO Type B or FAA L-864) beacon that can be used for marking obstacles from 45 metres above ground, such as telecommunication towers, wind turbines, buildings and other tall structures. - Page 7 Multiple LED Optic Impact modified UV- stabilised acrylic lens Automatic night operation 7-stage powder coated aluminium base 200 mm bolt pattern for ease of intallation Technical Illustrations [9.06in] 230mm [7.87in] PCD 200mm Want the latest product information? Visit www.avlite.com...
-
Page 8: Av-Ol-Mi Data Sheet
Add on solar system for DC variant. Mounting accessories. Obstruction Controller with SATCOM or GSM available. Turn-key kit based on structure. Terms and Conditions Please refer to the light installation manual for further specifications. Warranty Terms and Conditions - www.avlite.com Medium Intensity Obstruction Light AV-OL-MI... -
Page 9: Safety Information
Ensure the tower or mast is grounded (NO RF HAZARD). • Check the mast lighting circuit is not faulty. • Make sure the mounting pole is vertically aligned to guarantee the required beam pattern of the obstruction light Want the latest product information? Visit www.avlite.com... -
Page 10: Operation And Setup
FAA model cannot be used for ICAO purposes. The model required needs to be specified at the time of order. 6.1 GPS Syncronisation Avlite has utilised the latest advancements in GPS technology to develop an internal synchronisation system that is incorporated into the lights. Using overhead satellites, multiple obstruction lights set to the same flash pattern are able to flash in synchronisation (for MI Type B or FAA L-864 during night operation only). -
Page 11: Unpacking, Installation And Wiring
Mount the MI light directly to the top of the tower or installation structure either by securing it to any appropriately reinforced mounting point with a 200mm PCD or by attaching an optional Avlite Right Angle Pole Mounting Bracket (for medium intensity fixtures) to the tower and bolting the MI to the bracket. The obstruction light is manufactured with an input power cable of length defined at the time of order. - Page 12 ±0.3 ±0.3 ±0.5° ±0.5° ±0.5° ±0.5 ±0.5 ±0.5 X.XX X.XX X.XX ±0.1 ±0.1 ±0.1 Copy (1) of 003080-000 - AV-OL-MI-DC File Name:- File Name:- Block Diagram Rev1.vsdx Sealite Sealite Next Ass'y:- Next Ass'y:- Finish:- Finish:- natural natural Projection Projection Scale Scale 003 - AV-OL-MI\4.
- Page 13 ±0.3 ±0.3 ±0.5° ±0.5° ±0.5° ±0.5 ±0.5 ±0.5 X.XX X.XX X.XX ±0.1 ±0.1 ±0.1 Copy (1) of 003080-000 - AV-OL-MI-D File Name:- File Name:- Block Diagram Rev1.vsdx Sealite Sealite Next Ass'y:- Next Ass'y:- Finish:- Finish:- natural natural Projection Projection Scale Scale R003 - AV-OL-MI\4.
- Page 14 Relay disable (in case the relay is not required, used to conserve power) Note: The alarm relay is intended for low voltage (SELV) connection only. NOT FOR MAINS CONNECTION Please contact AVLITE for further details. Medium Intensity Obstruction Light AV-OL-MI...
-
Page 15: Testing Procudure
General Purpose Inputs and Outputs The AV-OL-MI fixture supports a minimum of five discrete IOs via General Purpose Inputs (2) and Outputs (3) in order to meet monitoring requirements as well as provide compatibility with our obstruction lighting controllers. The I/O configurations must be specified at the time of order. -
Page 16: Ir Remote Control
In Always On mode, the daylight sensor is disabled and the lantern will remain ON. In Standby mode, the lantern is turned off and the daylight sensor is disabled. In Dusk-to-Dawn, the daylight sensor is enabled. Read Operation mode Always on mode Standby mode Dusk-to-Dawn mode Medium Intensity Obstruction Light AV-OL-MI... - Page 17 Example key sequence: (Set the intensity level to 5 – undefined.) The light flashes 5 times for 1 second. When a key sequence has been entered successfully the light will respond acknowledgement with a 1 second flash. Want the latest product information? Visit www.avlite.com...
-
Page 18: Maintenance And Servicing
9.0 Maintenance and Servicing Designed to be maintenance free the Obstruction Lights requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Avlite product. • Occasional cleaning of the dome lens may be required using a cloth and warm soapy water. - Page 19 Voltage is low, this is where the alarm relay is first activated 4 Quick Flat 48.4V and below Voltage is flat, this is where the main LEDs are turned off and the flat battery cutoff is enabled Want the latest product information? Visit www.avlite.com...
-
Page 20: Troubleshooting
Insufficient Charging • Expose light to direct sunlight and monitor for the entire night. operation for several days. Avlite products typically require 2.5-3.0 minimum hours of direct sunlight per day to retain full autonomy. From a discharged state, the light may require several days of operational conditions to ‘cycle’... -
Page 21: Notes
12.0 Notes Want the latest product information? Visit www.avlite.com... - Page 22 Medium Intensity Obstruction Light AV-OL-MI...
- Page 23 Want the latest product information? Visit www.avlite.com...
- Page 24 Contact Us! Avlite's solutions are easy-to-install and scalable. We have a solution for every budget. Avlite Head Office Avlite USA 11 Industrial Drive, Somerville 61 Business Park Drive, Tilton Victoria, Australia 3912 New Hampshire, USA 03276 T: +61 (0)3 5977 6128...
