- Page 1 Single Low Intensity Obstruction Light AV-OL-LI Installation & Service Manual - V2.0 "We Believe Technology Improves Navigation."...
- Page 2 Manual Update Register Version No. Description Date Reviewed Approved Design 2.0 (Current) AV-OL-LI Product Manual Release November 2021 P. Naidu W. Evans M. Sugars Single Low Intensity Obstruction Light AV-OL-LI...
-
Page 3: Table Of Contents
Contents 1.0 Introduction ....................................4 2.0 Technology .....................................5 3.0 AV-OL-LI Model .................................... 6 4.0 AV-OL-LI Data Sheet ..................................8 5.0 Safety Information ..................................9 6.0 Operation and Setup .................................. 10 6.1 GPS Syncronisation ................................10 7.0 Unpacking, Installation and Wiring ............................11 7.1 Unpacking .................................... -
Page 4: Introduction
1.0 Introduction Congratulations! By choosing to purchase an Avlite light, you have become the owner of one of the most advanced obstruction lights in the world. Avlite Systems draws on more than 25 years experience in the design and manufacture of navigation aids, and particular care has been taken to ensure your light gives years of trouble free service. -
Page 5: Technology
LED Technology All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source. The major ad- vantage of LED’s over traditional light sources is well established in that they typically have an operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing costs. -
Page 6: Av-Ol-Li Model

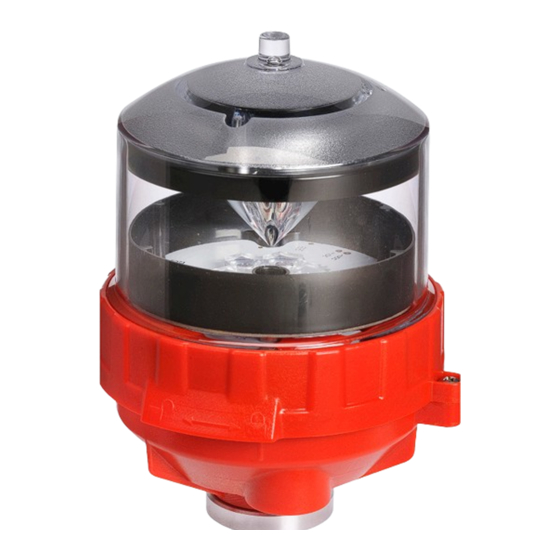

3.0 AV-OL-LI Model This AV-OL-LI light fixture is a steady burning or flashing, low intensity LED obstruction light designed to comply with either FAA (L810 or L-810(F)) orICAO (LIOL Type A, B or E) requirements. The model can be used for marking obstacles which pose a threat to aircraft, such as telecommunication towers, wind turbines, buildings and other tall structures. - Page 7 PDN-22-000488 000951-002 Base, Obstruction Light, 3/4inch 0.096 Want the latest product information? PDN-22-000477 000951-003 Obstruction Light House - Secure Ring 0.007 000441-010 SL 15 External Lens, AV-OL-LI 0.11 Visit www.avlite.com 002437-000 AV-OL-LI Reflective Cone, Type 1 0.02 PCA-2008 PCA-2008 AV-OL-LI LIGHT HEAD 0.02...
-
Page 8: Av-Ol-Li Data Sheet
Mounting accessories. Obstruction Controller with SATCOM or GSM available. Turn-key kit based on structure. Terms and Conditions* Please refer to the light installation manual for further specifications. Warranty Terms and Conditions available at www.avlite.com Single Low Intensity Obstruction Light AV-OL-LI... -
Page 9: Safety Information
Ensure the tower or mast is grounded (NO RF HAZARD). • Check the mast lighting circuit is not faulty. • Make sure the mounting pole is vertically aligned to guarantee the required beam pattern of the obstruction light. Want the latest product information? Visit www.avlite.com... -
Page 10: Operation And Setup
FAA model cannot be used for ICAO purposes. The model required needs to be specified at the time of order. 6.1 GPS Syncronisation Avlite has utilised the latest advancements in GPS technology to develop an internal synchronisation system that is incorporated into the lights. Using overhead satellites, multiple LI fixtures (ICAO Type E and FAA L-810F only) are able to synchronise with other obstruction lights set to the same flash pattern. -
Page 11: Unpacking, Installation And Wiring
Note: The fixture must be wired by a qualified electrician. Thread a 3/4 inch pipe thread cord grip to the LI and attach the light to an owner supplied bracket or optional Avlite Right Angle Mounting Bracket (for low intensity fixtures) with a locking nut. - Page 12 Attention should be paid to the restriction caused by the internal cabling which is secured by a cable gland. The unit is closed by reversing the above procedure, ensuring the black rubber O-ring remains in place. Replace O-ring if perished. Single Low Intensity Obstruction Light AV-OL-LI...
- Page 13 General Purpose Contacts 60V/1A Max J1 GPI2 General Purpose Input 60V J1 GPI1 General Purpose Input 60V J1 GND-ISO Ground Common Input DC to DC J2 +VDC Positive Supply 24-60V J2 -VDC Negative Supply 0V Light Configuration Want the latest product information? Visit www.avlite.com...
-
Page 14: Testing Procudure
General Purpose Inputs and Outputs The AV-OL-LI fixture supports a minimum of five discrete IOs via General Purpose Inputs (2) and Outputs (3) in order to meet monitoring requirements as well as provide compatibility with our obstruction lighting controllers. The I/O configurations must be specified at the time of order. -
Page 15: Maintenance And Servicing
8.0 Maintenance and Servicing Designed to be maintenance free the Obstruction Lights requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Avlite product. • Occasional cleaning of the dome lens may be required using a cloth and warm soapy water. - Page 16 Voltage is low, this is where the alarm output is first activated 4 Quick Flat 48.4V and below Voltage is flat, this is where the main LEDs are turned off and the flat battery cutoff is enabled Single Low Intensity Obstruction Light AV-OL-LI...
-
Page 17: Troubleshooting
Insufficient Charging • Expose light to direct sunlight and monitor for the entire night. operation for several days. Avlite products typically require 2.5-3.0 minimum hours of direct sunlight per day to retain full autonomy. From a discharged state, the light may require several days of operational conditions to ‘cycle’... -
Page 18: Notes
11.0 Notes Single Low Intensity Obstruction Light AV-OL-LI... - Page 19 Want the latest product information? Visit www.avlite.com...
- Page 20 Contact Us! Avlite's solutions are easy-to-install and scalable. We have a solution for every budget. Avlite Head Office Avlite USA 11 Industrial Drive, Somerville 61 Business Park Drive, Tilton Victoria, Australia 3912 New Hampshire, USA 03276 T: +61 (0)3 5977 6128...
