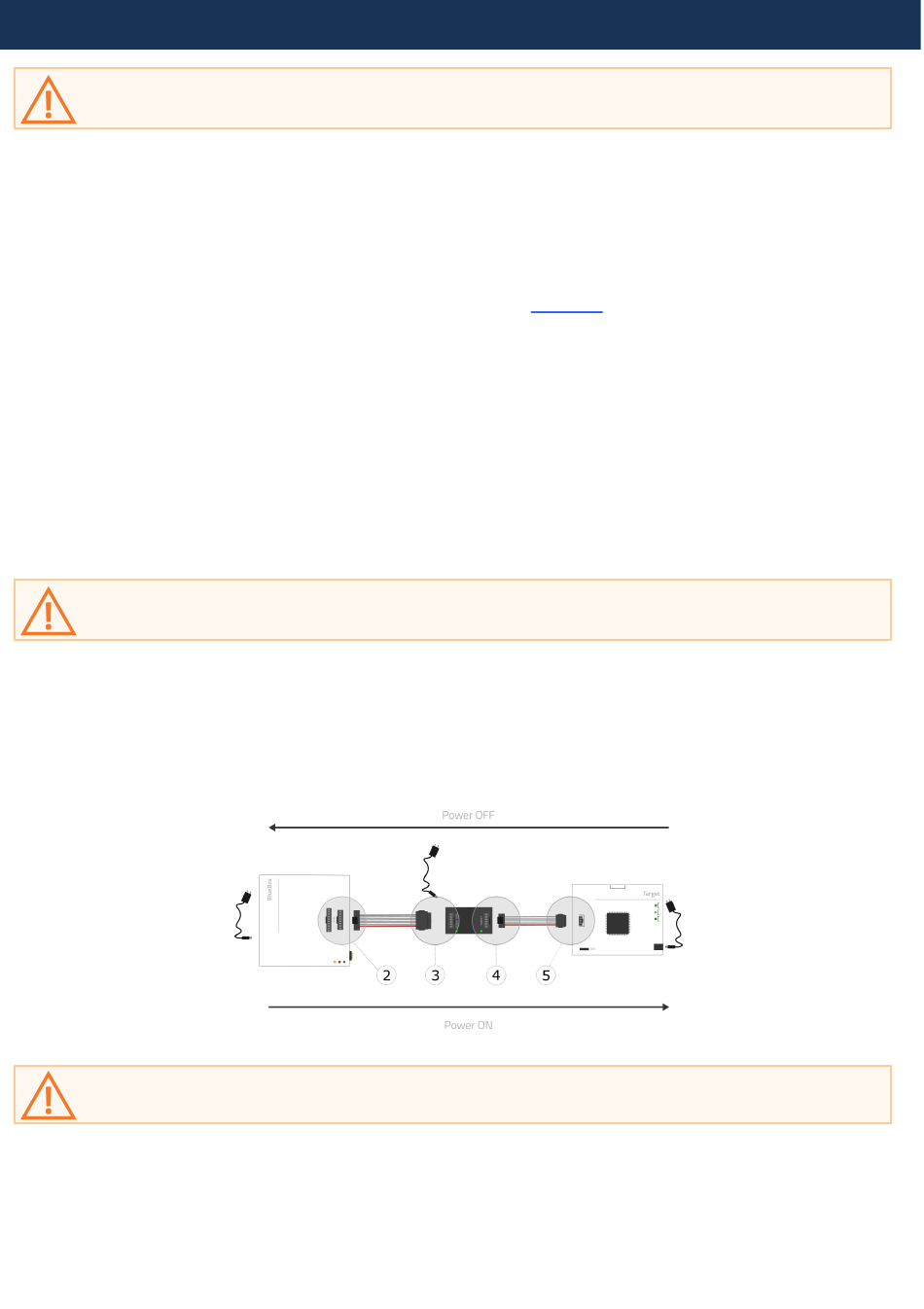

Connecting procedure

Do not use a Grounding wire between the BlueBox and the embedded target since it would
counteract the primary functionality of the Galvanic Isolation (GI) Adapter!
1. Make sure your hardware is powered OFF.
Embedded Target
·
BlueBox
·
GI Adapter
·
2. Connect a Debug Adapter to the BlueBox. Refer to the
connecting the Debug Adapter.
3. Connect the Debug Adapter to the GI Adapter.
4. Connect 1:1 Ribbon cable which is delivered along this package to the GI Adapter.
5. Connect 1:1 Ribbon cable to the embedded target.
6. Connect BlueBox, GI Adapter and Target to the power supply.
Use only original iSYSTEM USB-C Power supply for powering and connecting with the GI
Adapter, otherwise the primary functionality of the GI Adapter would be counteracted.
7. Power ON the hardware in the following order:
BlueBox
·
GI Adapter
·
Target
·
If LEDs on the GI Adapter are OFF, immediately turn everything OFF!
BlueBox User Manual for more details on
