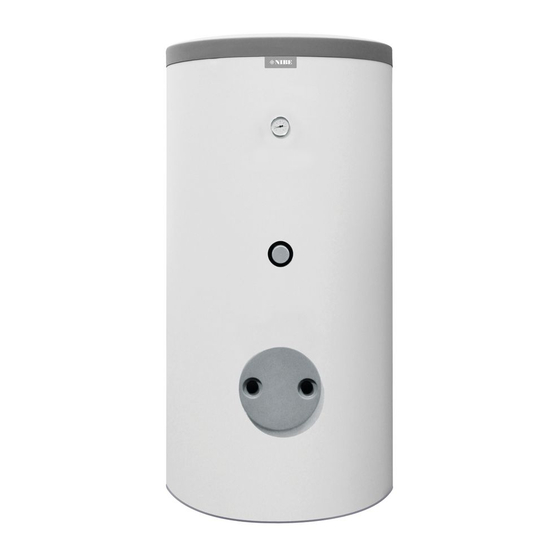

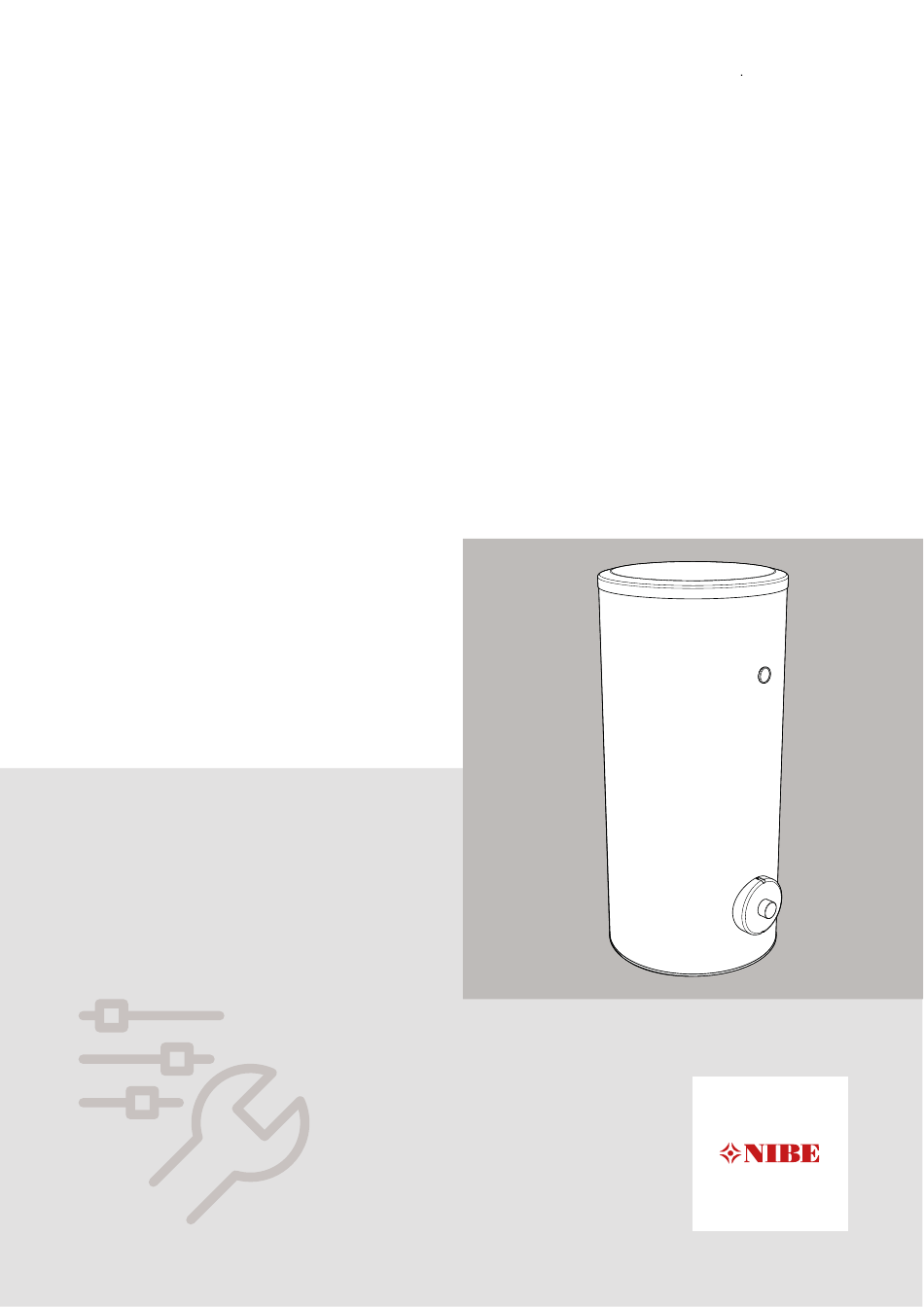

- Page 1 10-05-2022 INSTALLATION AND OPERATING MANUAL 25974 Hot Water Storage Tank with large surface coil BA-ST 9030-1FEDC BA-ST 9040-1FEDC BA-ST 9050-1FEDC...
-
Page 2: Table Of Contents
Operation of the product by children is strictly prohibited. We reserve the right to make the product design changes and changes in the manual. ©NIBE 2022 Content | Hot Water Storage Tank with large surface coil... -
Page 3: General
Introduction Thank you for your confi dence and choice of equip- ment by NIBE. To fully benefi t from the advantages of this product, please read this Manual before using it, and in particular chapters relating to the application, installation and maintenance, and warranty. -
Page 4: Design
2 Design Vertical storage tank BA-ST 9030/9040/9050 - 1FEDC with a large surface coil is a pressure equipment, i.e. the pres- sure within the storage tank and coil are equivalent to the pressures in the corresponding systems. Storage tank is made of high quality steel and is equipped with one helical coil that can simultaneously operate with independent heat source, e.g. -
Page 5: Installation
(1). propriate magnesium chain anode. For the specifi ca- 2. Remove the upper cover of the housing together tion of the protective anodes available at NIBE, see with thermal insulation (2). Section 6 Accessories and Spare Parts. 3. Remove the plugs from the connector pipes and black bushings (3). -
Page 6: Installation Requirements
IMPORTANT Installation and commissioning of the stor- age tank shall only be done by appropriately qualifi ed installer. The installer should in- form the user of the functions of the prod- uct and provide the necessary information on its safe use. Protection against overpressure shall be made in ac- cordance with the relevant regulations in force. -
Page 7: Connection And Start-Up
CAUTION Installation of necking of any kind (such as re- ducers, dirt pockets, etc.) and cut-off valves Supply between the storage tank and the safety of the coil valve is not allowed. Only a T-pipe with a drain Hot water valve and a T-pipe with an expansion vessel circulation may be installed in these line sections. -
Page 8: Thermal Insulation Of The System
• Limit the setpoints of the heating medium tem- CAUTION perature controllers in the storage tank supply Open the hot water intake valves before lines to 80 °C in order to avoid triggering of the heating the system up for the first time or thermal cut-off in the electric heating module. -
Page 9: Maintenance
5 Maintenance Measurement of the Periodic inspections and maintenance are the condi- tions of continuous operational readiness, reliability Protective Magnesi- and a long service life of the product. Maintenance activities include the following: um Anode Wear • Routine inspections and replacement of the pro- tective magnesium anode. -
Page 10: Cleaning Of The Storage Tank
Cleaning of When replacing the magnesium anode, follow the the Storage Tank procedure below (see Fig. 10): In units with the electric heating unit installed, Boiler scale is precipitated from the heated water disconnect power from the unit fi rst. during the storage tank operation. -
Page 11: Accessories And Spare Parts
Torque 25±5 Nm 35 Nm Fig. 11 Installation of the inspection opening cover (mounting order). 6 Accessories and spare parts Accessories and spare parts for Table 3. Protective anodes. BA-ST 9030/9040/9050 - 1FEDC storage tank can be Storage tank C o n n e c t o r Type of purchased at our distributors or authorized service model... -
Page 12: Service
8 Recycling and disposal CAUTION According to the NIBE rules, the products have been In order to prevent damage to piping systems manufactured of high quality materials using the lat- and environmental pollution, the product... -
Page 13: Technical Data
9 Technical data Table 4. Technical data. Storage tank model BA-ST Parameter 9030 - 1FEDC 9040 - 1FEDC 9050 - 1FEDC Energy efficiency class* Storage volume (V)* 344,2 Standing loss (S)* 96,7 Coil area 3,85 Max tank operating temp. °C Max allowable instantaneous temp. -
Page 14: Dimensions
Dimensions XL54 XL54 XL35 XL35 Rys. 12 Connector pipe of the Fig. 13 Dimensions of the BA-ST 9030/9040/9050 - 1FEDCstorage tank BA-ST 9030/9040/9050 - 1FEDC storage tank Table 6. Dimensions. Dimensions BA-ST XXXX - 1FEDC 9030 9040 9050 Table 5. Dimensions of nozzles . BA-ST XXXX - 1FEDC Connection 9030... - Page 16 NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 Reyrieux Tel : 04 74 00 92 92 Fax : 04 74 00 42 00 E-mail: info@nibe.fr www.nibe.fr NIBE Energy Systems Ltd, 3C Broom Business Park, BridgeWay, Chesterfield S41 9QG Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: info@nibe.co.uk www.nibe.co.uk...
