4. Hold the controller in place, and insert the screws through the mounting clips and into the holes (or anchors).
Carefully tighten all of the screws.
Important: Do not overtighten the mounting screws. Overtightening the screws may damage the mounting
clips.

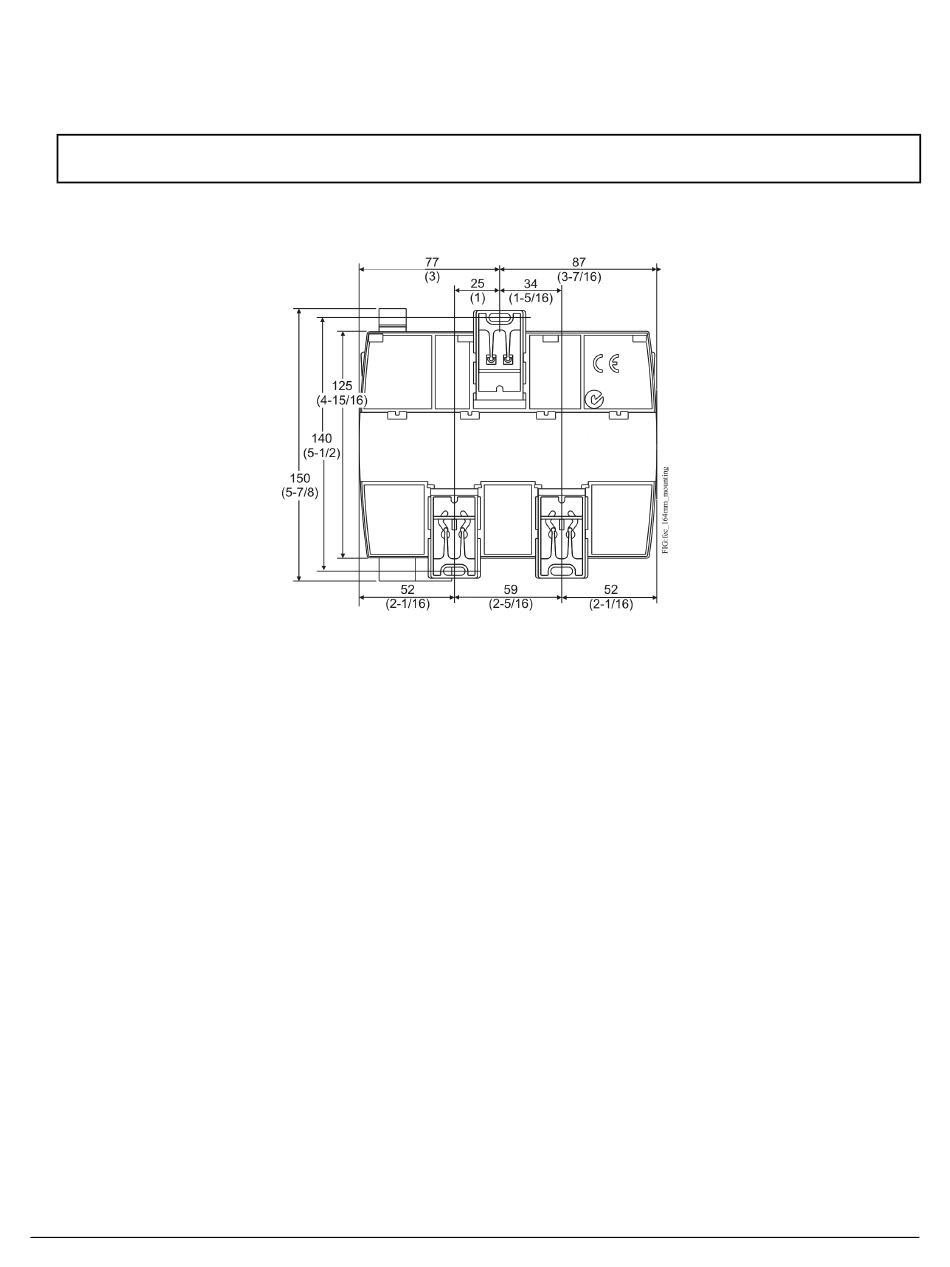

Figure 2: Back of Controller Showing Extended Mounting Clips, DIN Rail Channel, and Mounting Dimensions,
mm (in.)
FEC1611 and FEC1621 Field Equipment Controller Installation Instructions
4
