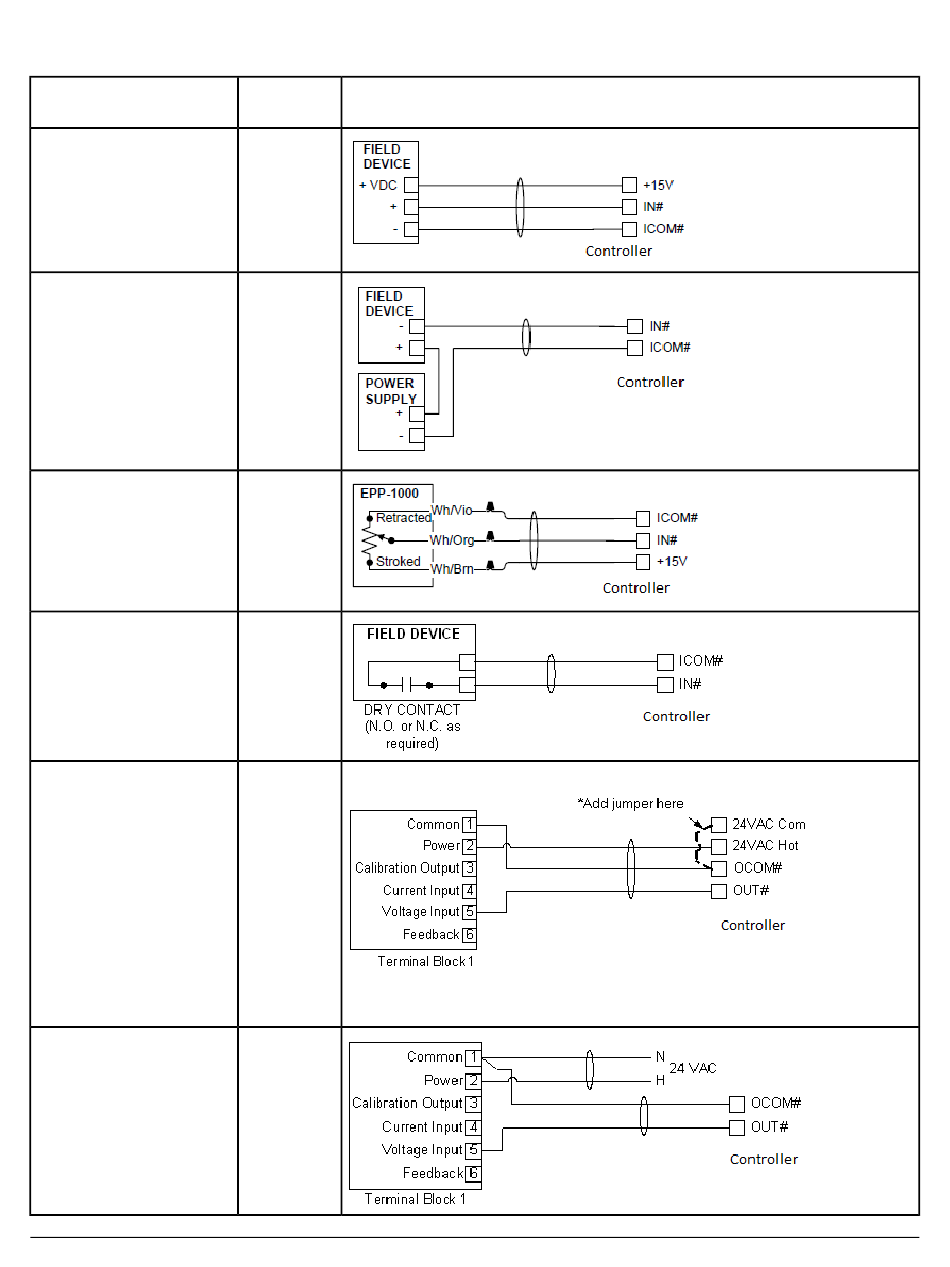

Table 2: Termination Details
Type of Field Device
Current Input - Internal
Source (3 wire)
Current Input - External
Source (in Loop)
Feedback from EPP-1000
Dry Contact (Binary Input)
0–10 VDC Output to
Actuator (External Source)
0–10 VDC Output to
Actuator (Internal Source)
FEC1611 and FEC1621 Field Equipment Controller Installation Instructions
Type of
Termination Diagrams
Input/Output
UI
UI
UI
UI or BI
CO or AO
Note: Add jumper from 24 VAC Com to only one CO Com (on FEC16xx) or only
one AO Com or CO com (on FEC26xx) per transformer.
CO or AO
