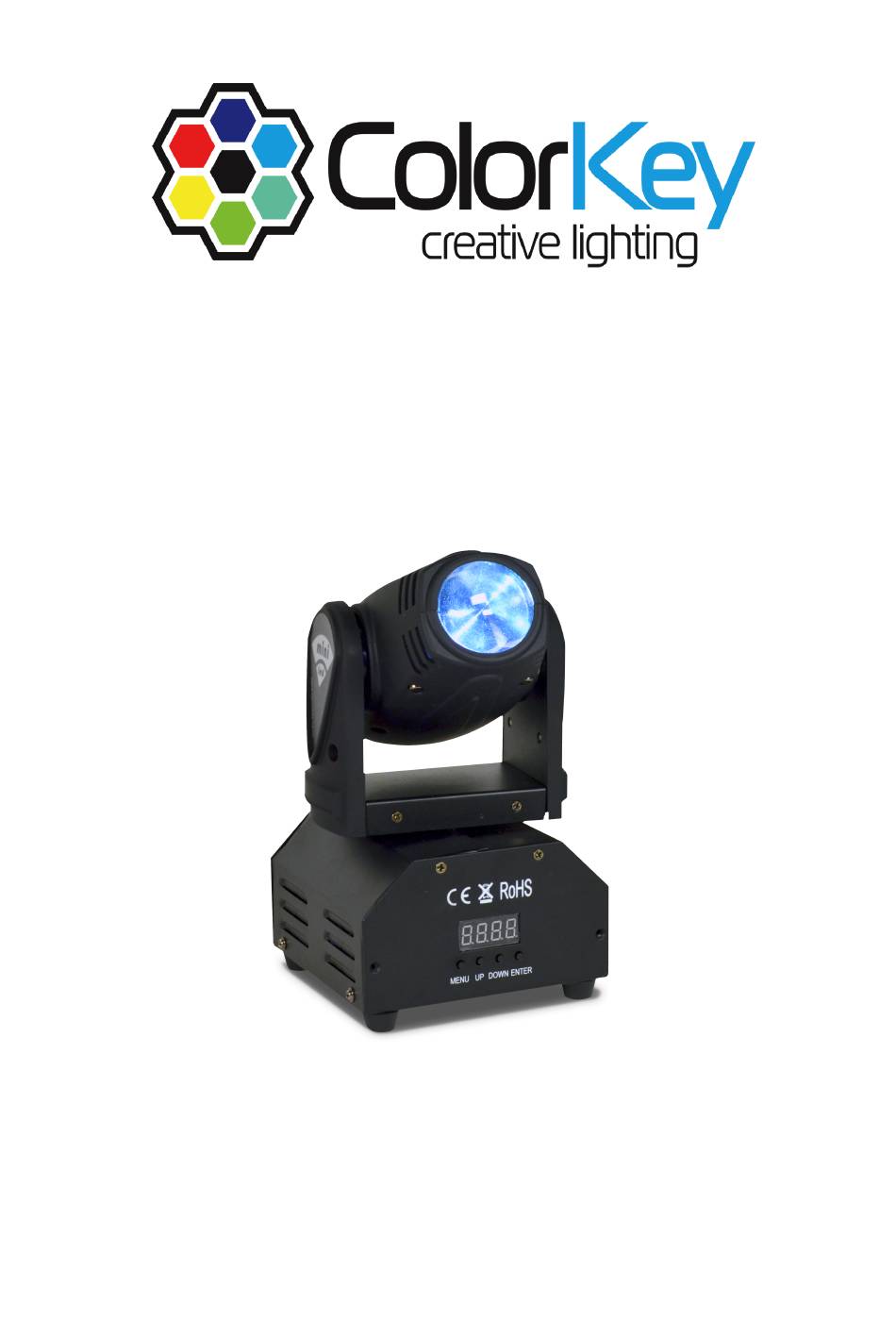

- Page 1 Mover MicroBeam QUAD-W CKU01-5010 (US) / CKE01-5010 (EU) USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey Mover MicroBeam QUAD-W. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list n 1x Mover MicroBeam QUAD-W moving head fixture n...
-
Page 3: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Menu Guide
Menu Guide A001 001-512 CH09-28 CH11 11 channel mode CH13 13 channel mode Au01-02 Au01 Auto (fast) Au02 Auto (slow) SnOn-oFF SnOn Sound (on) SnOFF Sound (off) 关闭 rPoF rPoF PAN (forward) rPon PAN (backward) rToF rToF TILT (forward) rTon TILT (backward) rdoF rdoF... -
Page 5: Dmx Values
DMX Values 11channel mode Channel Value Function 0-255 Pan (coarse) 0-255 Pan (fine) 0-255 Tilt (coarse) 0-255 TILT (fine) 0-255 Speed 0-255 Dimmer 0-255 Strobe 0-255 Red (dimming) 0-255 Green (dimming) 0-255 Blue (dimming) 0-255 White (dimming) 13channel mode Channel Value Function 0-255... -
Page 6: Dmx Connections
DMX Connections Ø DMX Cable： The Mover MicroBeam QUAD-W can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a resistance120Ω... -
Page 7: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 8: Technical Information
Pan: 540˚ Tilt: 270˚ IP rate: IP20 Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
